2SK3467 - MOS Field Effect Transistor

Features

  • 4.5 V drive available Low on-state resistance RDS(on)1 = 6.0 m MAX. (VGS = 10 V, ID = 40 A) Low gate charge QG = 55 nC TYP. (ID = 80 A, VDD = 16 V, VGS = 10 V) Built-in gate protection diode Surface mount device available +0.2 5.28 -0.2 +0.2 8.7 -0.2 TO-263 +0.2 4.57 +0.1 -0.2 1.27-0.1 Unit: mm +0.1 1.27 -0.1 +0.2 2.54 -0.2 15.25-+00..22 5.60 1.27+0.1 -0.1 0.1max 2.54+0.2 -0.2 5.08+0.1 -0.1 0.81+0.1 -0.1 2.54 0.4+0.2 -0.2 1 Gate 2 Drain 3 Source Absolute Maximum Ratings Ta = 25.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SK3467 SWITCHING N-CHANNEL POWER MOSFET NEC
2SK346 N-Channel MOSFET Transistor Inchange Semiconductor
2SK346 Silicon N-Channel MOSFET Hitachi
2SK3460 N-Channel MOSFET Sanken
2SK3461-S N-Channel MOSFET VBsemi

Other Datasheets by Kexin Semiconductor

Part Number Description
2SK3424 MOSFET
2SK3430 MOS Field Effect Transistor
2SK3431 MOS Field Effect Transistor
2SK3432 MOS Field Effect Transistor
2SK3458 MOS Field Effect Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

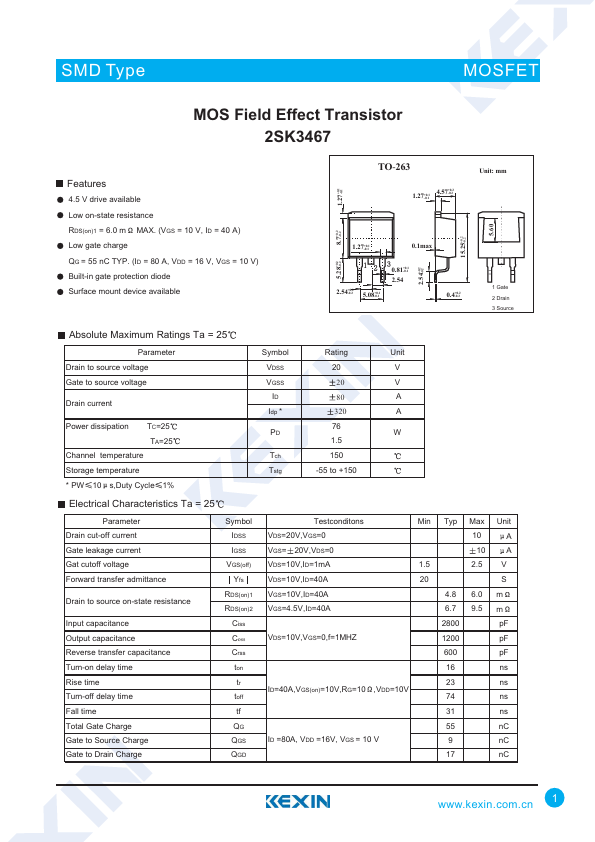

SMD Type MOSFET MOS Field Effect Transistor 2SK3467 Features 4.5 V drive available Low on-state resistance RDS(on)1 = 6.0 m MAX. (VGS = 10 V, ID = 40 A) Low gate charge QG = 55 nC TYP. (ID = 80 A, VDD = 16 V, VGS = 10 V) Built-in gate protection diode Surface mount device available +0.2 5.28 -0.2 +0.2 8.7 -0.2 TO-263 +0.2 4.57 +0.1 -0.2 1.27-0.1 Unit: mm +0.1 1.27 -0.1 +0.2 2.54 -0.2 15.25-+00..22 5.60 1.27+0.1 -0.1 0.1max 2.54+0.2 -0.2 5.08+0.1 -0.1 0.81+0.1 -0.1 2.54 0.4+0.2 -0.
