2SK3430 - MOS Field Effect Transistor

Features

  • Super low on-state resistance: RDS(on)1 = 7.3 m MAX. (VGS = 10 V, ID = 40 A) RDS(on)2 = 15 m MAX. (VGS = 4 V, ID = 40 A) Low Ciss: Ciss = 2800 pF TYP. Built-in gate protection diode Absolute Maximum Ratings Ta = 25 Parameter Drain to source voltage Gate to source voltage Drain current Power dissipation TC=25 TA=25 Channel temperature Storage temperature.
  • PW 10 s,Duty Cycle 1% Symbol VDSS VGSS ID Idp.
  • PD Tch Tstg TO-263 +0.2 4.57 +0.1 -0.2 1.27-0.1 Unit: mm +0.1 1.27 -0.1 +0.2.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SK3430 N-Channel MOSFET Transistor Inchange Semiconductor
2SK3430 N-Channel MOSFET NEC
2SK3430 N-Channel MOSFET VBsemi
2SK3430-S N-Channel MOSFET Transistor Inchange Semiconductor
2SK3430-Z N-Channel MOSFET INCHANGE

Other Datasheets by Kexin Semiconductor

Part Number Description
2SK3431 MOS Field Effect Transistor
2SK3432 MOS Field Effect Transistor
2SK3424 MOSFET
2SK3458 MOS Field Effect Transistor
2SK3467 MOS Field Effect Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

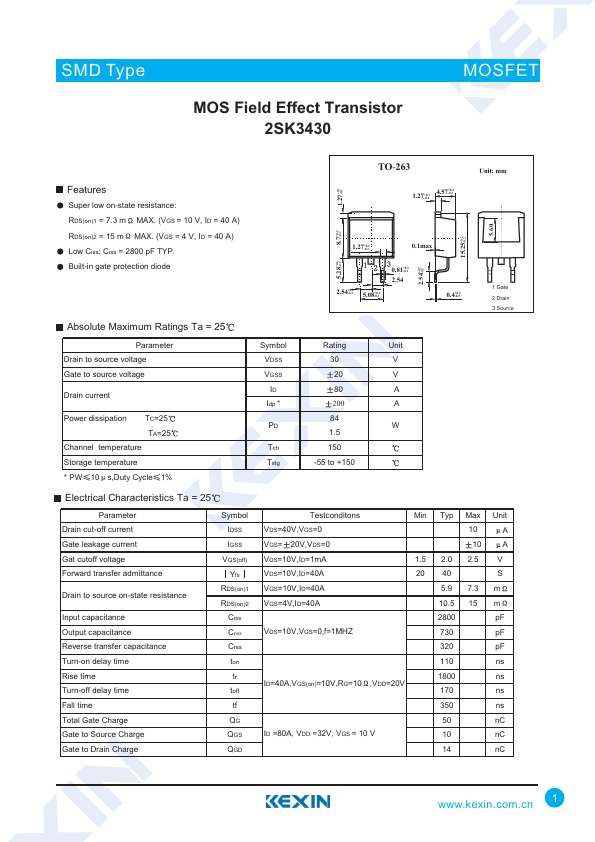

SMD Type MOS Field Effect Transistor 2SK3430 MOSFET Features Super low on-state resistance: RDS(on)1 = 7.3 m MAX. (VGS = 10 V, ID = 40 A) RDS(on)2 = 15 m MAX. (VGS = 4 V, ID = 40 A) Low Ciss: Ciss = 2800 pF TYP. Built-in gate protection diode Absolute Maximum Ratings Ta = 25 Parameter Drain to source voltage Gate to source voltage Drain current Power dissipation TC=25 TA=25 Channel temperature Storage temperature * PW 10 s,Duty Cycle 1% Symbol VDSS VGSS ID Idp * PD Tch Tstg TO-263 +0.2 4.57 +0.1 -0.2 1.27-0.1 Unit: mm +0.1 1.27 -0.1 +0.2 2.54 -0.2 15.25-+00..22 5.60 +0.2 8.7 -0.2 +0.2 5.28 -0.2 1.27+0.1 -0.1 0.1max 2.54+0.2 -0.2 5.08+0.1 -0.1 0.81+0.1 -0.1 2.54 0.4+0.2 -0.2 1 Gate 2 Drain 3 Source Rating Unit 30 V 20 V 80 A 200 A 84 W 1.
