2SK3435 - MOS Field Effect Transistor

Key Features

  • Super low on-state resistance: RDS(on)1 = 14m MAX. (VGS = 10 V, ID = 40A) RDS(on)2 =22 m MAX. (VGS = 4 V, ID = 40A) Low Ciss: Ciss =3200 pF TYP. Built-in gate protection diode Absolute Maximum Ratings Ta = 25 Parameter Drain to source voltage Gate to source voltage Drain current Power dissipation TC=25 TA=25 Channel temperature Storage temperature.
  • PW 10 s,Duty Cycle 1% TO-263 +0.2 4.57 +0.1 -0.2 1.27-0.1 Unit: mm +0.1 1.27 -0.1 +0.2 2.54 -0.2 15.25-+00..22 5.60 +0.2 8.7 -0.2 +0.2.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SK3435 N-Channel MOSFET Transistor Inchange Semiconductor
2SK3435 N-Channel MOSFET NEC
2SK3435 N-CHANNEL POWER MOSFET Renesas
2SK3435-S N-Channel MOSFET Transistor Inchange Semiconductor
2SK3435-S N-CHANNEL POWER MOSFET Renesas

Other Datasheets by Kexin Semiconductor

Part Number Description
2SK3430 MOS Field Effect Transistor
2SK3430-ZJ N-Channel MOSFET
2SK3431 MOS Field Effect Transistor
2SK3432 MOS Field Effect Transistor
2SK3433 MOS Field Effect Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

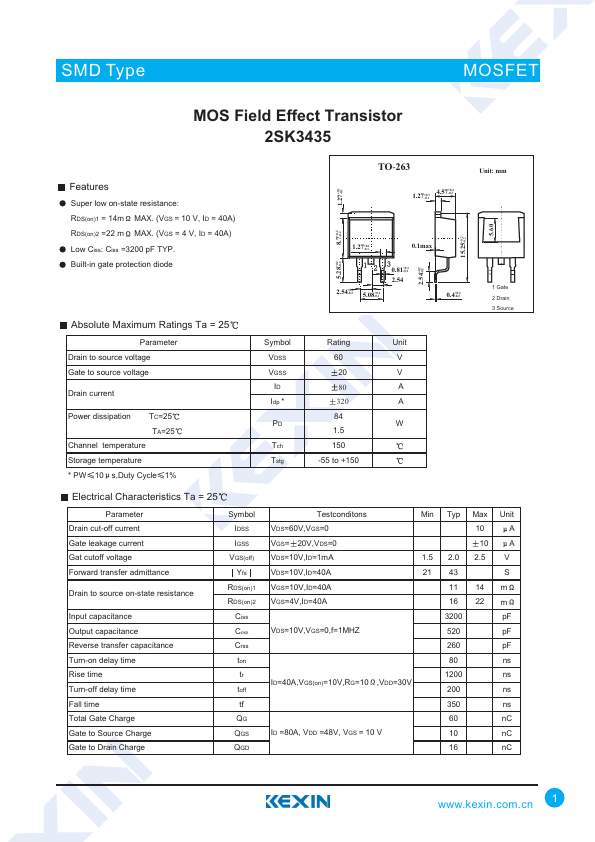

SMD Type MOSFET MOS Field Effect Transistor 2SK3435 Features Super low on-state resistance: RDS(on)1 = 14m MAX. (VGS = 10 V, ID = 40A) RDS(on)2 =22 m MAX. (VGS = 4 V, ID = 40A) Low Ciss: Ciss =3200 pF TYP. Built-in gate protection diode Absolute Maximum Ratings Ta = 25 Parameter Drain to source voltage Gate to source voltage Drain current Power dissipation TC=25 TA=25 Channel temperature Storage temperature * PW 10 s,Duty Cycle 1% TO-263 +0.2 4.57 +0.1 -0.2 1.27-0.1 Unit: mm +0.1 1.27 -0.1 +0.2 2.54 -0.2 15.25-+00..22 5.60 +0.2 8.7 -0.2 +0.2 5.28 -0.2 1.27+0.1 -0.1 0.1max 2.54+0.2 -0.2 5.08+0.1 -0.1 0.81+0.1 -0.1 2.54 0.4+0.2 -0.2 Symbol Rating Unit VDSS 60 V VGSS 20 V ID 80 A Idp * 320 A 84 PD W 1.
