2SK3424-ZJ - N-Channel MOSFET

Key Features

  • s.
  • VDS S = 30V.
  • ID = 48 A (VGS = 10V).
  • RDS(ON) ＜ 11.5mΩ (VGS = 10V).
  • RDS(ON) ＜ 17mΩ (VGS = 4.5V).
  • Low gate charge Drain Gate Body Diode Gate Protection Diode Source MOSFET.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Symbol Rating Unit Drain-Source Voltage Gate-Source Voltage VDS 30 V VGS ±20 Continuous Drain Current Tc = 25℃ Pulsed Drain Current (Note.1) ID 48 A IDM 192 Power Dissipation Tc = 25℃ 50 PD W Ta = 25℃ 1.5 Junction Tempe.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SK3424-ZJ N-Channel MOSFET Transistor Inchange Semiconductor
2SK3424-ZK N-Channel MOSFET Transistor Inchange Semiconductor
2SK3424 N-Channel 30V MOSFET VBsemi
2SK3424 N-CHANNEL POWER MOSFET NEC
2SK3424 N-Channel MOSFET Transistor Inchange Semiconductor

Other Datasheets by Kexin Semiconductor

Part Number Description
2SK3424 MOS Field Effect Transistor
2SK3404 MOS Field Effect Transistor
2SK3405 MOS Field Effect Transistor
2SK3430 MOS Field Effect Transistor
2SK3430-ZJ N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

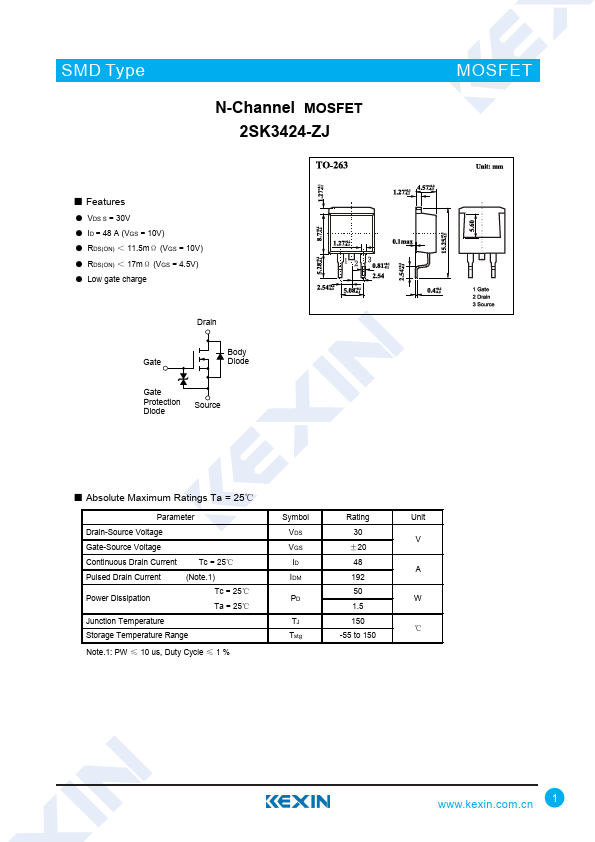

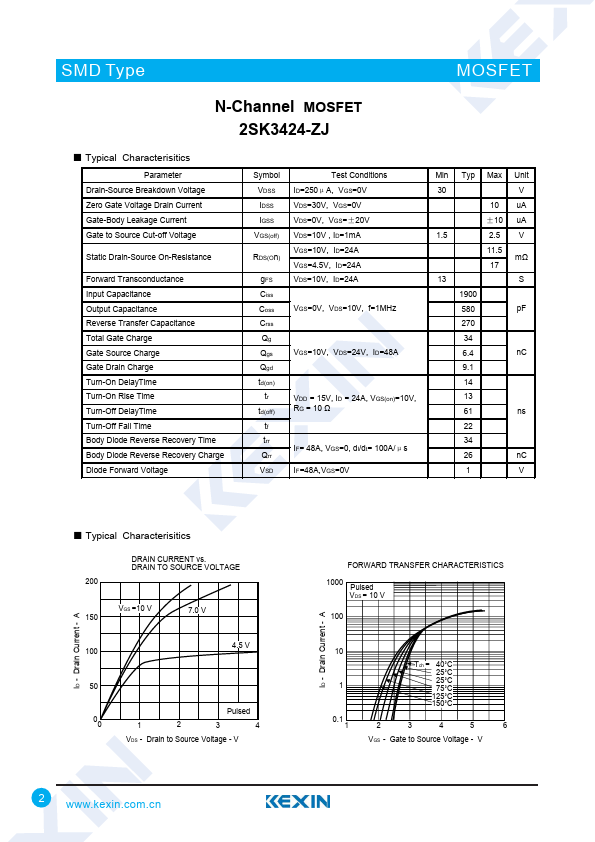

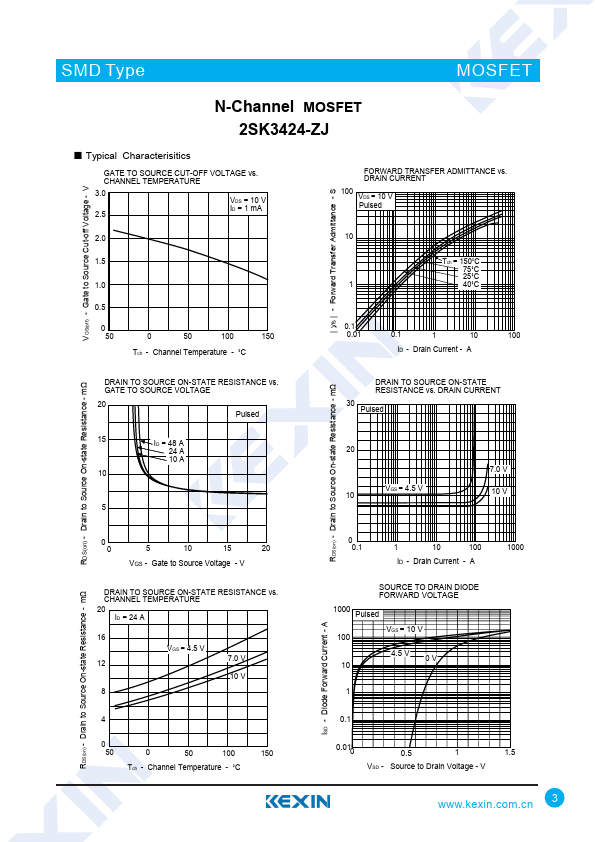

SMD Type N-Channel MOSFET 2SK3424-ZJ ■ Features ● VDS S = 30V ● ID = 48 A (VGS = 10V) ● RDS(ON) ＜ 11.5mΩ (VGS = 10V) ● RDS(ON) ＜ 17mΩ (VGS = 4.5V) ● Low gate charge Drain Gate Body Diode Gate Protection Diode Source MOSFET ■ Absolute Maximum Ratings Ta = 25℃ Parameter Symbol Rating Unit Drain-Source Voltage Gate-Source Voltage VDS 30 V VGS ±20 Continuous Drain Current Tc = 25℃ Pulsed Drain Current (Note.1) ID 48 A IDM 192 Power Dissipation Tc = 25℃ 50 PD W Ta = 25℃ 1.5 Junction Temperature Storage Temperature Range TJ 150 ℃ Tstg -55 to 150 Note.1: PW ≤ 10 us, Duty Cycle ≤ 1 % www.kexin.com.
