2SK2701A - N-Channel MOSFET

Key Features

  • s.
  • VDS (V) = 450 V.
  • ID = 7.0 A (VGS = 10V).
  • RDS(ON) ＜ 1.1Ω (VGS = 10V) TraMnOsiSsFtoErsT N-Channel MOSFET 2SK2701A TO-220F ±0.20 3.18±0.20 φ ±0.20 2.54 ±0.20 Unit: mm 0.70 ±0.20 6.68 ±0.20 15.87 ±0.20 3.30 ±0.20 12.42 ±0.20 1.47max 2.54typ 2.54typ 2.76 ±0.20 9.75 ±0.20 0.80 ±0.20 0.50 ±0.20.
  • Absolute Maximum Ratings (Ta = 25℃) Parameter Symbol Rating Unit Drain-Source Voltage Gate-Source Voltage VDS 450 V VGS ±30 Continuous Drain Current Pulsed Drain.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SK2701A N-Channel MOSFET INCHANGE
2SK2701 MOSFET Sanken electric
2SK270 Silicon N-Channel Transistor Toshiba
2SK2700 N-Channel MOSFET Toshiba Semiconductor
2SK2702 MOSFET Sanken electric

Other Datasheets by Kexin Semiconductor

Part Number Description
2SK2731 N-Channel MOSFET
2SK2735S Silicon N-Channel MOSFET
2SK2796S Silicon N-Channel MOSFET
2SK2033 N-Channel MOSFET
2SK2059S Silicon N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

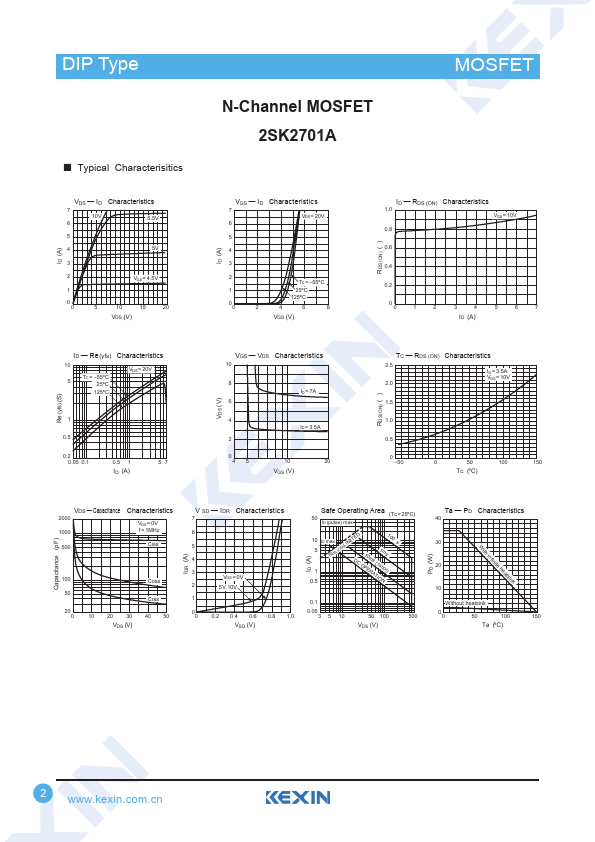

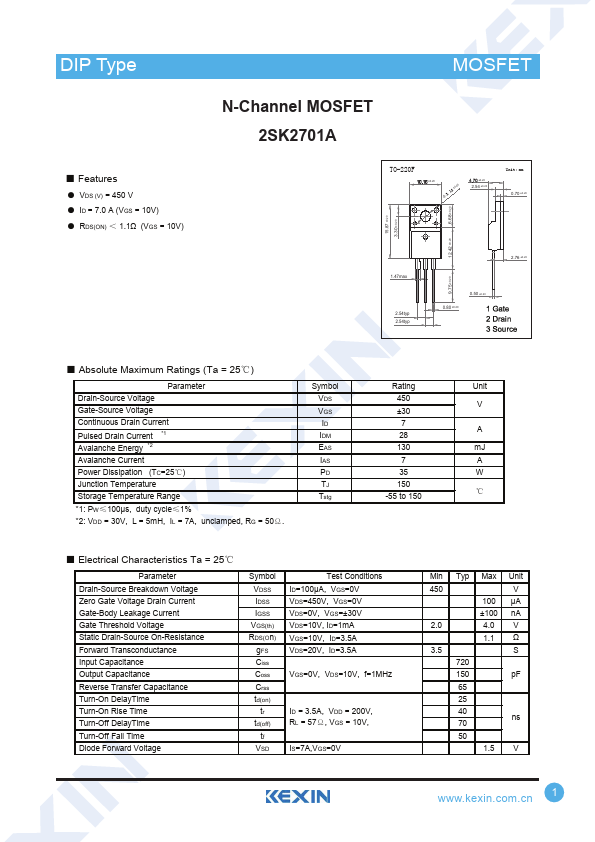

DIP Type ■ Features ● VDS (V) = 450 V ● ID = 7.0 A (VGS = 10V) ● RDS(ON) ＜ 1.1Ω (VGS = 10V) TraMnOsiSsFtoErsT N-Channel MOSFET 2SK2701A TO-220F ±0.20 3.18±0.20 φ ±0.20 2.54 ±0.20 Unit: mm 0.70 ±0.20 6.68 ±0.20 15.87 ±0.20 3.30 ±0.20 12.42 ±0.20 1.47max 2.54typ 2.54typ 2.76 ±0.20 9.75 ±0.20 0.80 ±0.20 0.50 ±0.20 ■ Absolute Maximum Ratings (Ta = 25℃) Parameter Symbol Rating Unit Drain-Source Voltage Gate-Source Voltage VDS 450 V VGS ±30 Continuous Drain Current Pulsed Drain Current *1 Avalanche Energy *2 ID 7 A IDM 28 EAS 130 mJ Avalanche Current IAS 7 A Power Dissipation (TC=25℃) PD 35 W Junction Temperature Storage Temperature Range TJ 150 ℃ Tstg -55 to 150 *1: PW≤100µs, duty cycle≤1% *2: VDD = 30V, L = 5mH, IL = 7A, unclamped, RG = 50Ω.
