2SK2094-Z - N-Channel MOSFET

Key Features

  • s.
  • VDS (V) = 60V.
  • ID = 2A.
  • RDS(ON) ＜ 0.35Ω (VGS = 10V).
  • RDS(ON) ＜ 0.5Ω (VGS = 4V) + 0.2 9 .7 0 -0.2 TO-252 6.50+0.15 -0.15 5.30+0.2 -0.2 2.30 +0.1 -0.1 0.50 +0.8 -0.7 Unit: mm +0 1.50 .15 -0.15 3.80 +0 5.55 .15 -0.15 + 0.50 0.15 -0.15 + 1.50 0.28 -0.1 0.80+0.1 -0.1 0.127 m ax 2.3 4 .60 +0.15 -0.15 0.60+ 0.1 - 0.1 + 2.65 0.25 -0.1 1 Gate 2 Drain 3 Source.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Symbol Rating Unit Drain-Source Voltage Gate-Source Vo.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SK2094 4V Drive Nch MOSFET Rohm
2SK209 N-Channel MOSFET Toshiba Semiconductor
2SK209 SILICON N-CHANNEL TRANSISTOR UTC
2SK2090 N-Channel MOS FET NEC
2SK2091 N-Channel MOSFET Sanyo Semicon Device

Other Datasheets by Kexin Semiconductor

Part Number Description
2SK2094 Silicon N-Channel MOSFET
2SK2033 N-Channel MOSFET
2SK2059S Silicon N-Channel MOSFET
2SK2084S Silicon N-Channel MOSFET
2SK2111 MOS Field Effect Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

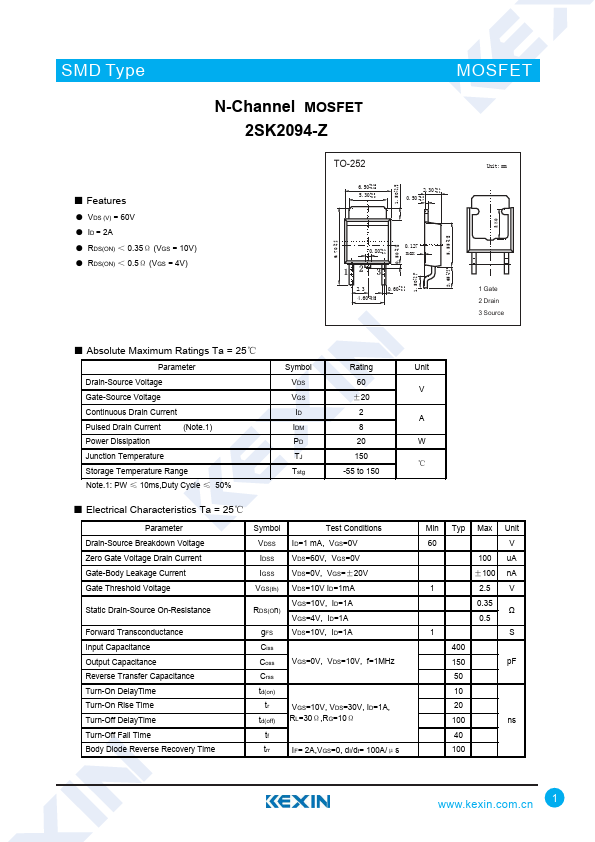

SMD Type MOSFET N-Channel MOSFET 2SK2094-Z ■ Features ● VDS (V) = 60V ● ID = 2A ● RDS(ON) ＜ 0.35Ω (VGS = 10V) ● RDS(ON) ＜ 0.5Ω (VGS = 4V) + 0.2 9 .7 0 -0.2 TO-252 6.50+0.15 -0.15 5.30+0.2 -0.2 2.30 +0.1 -0.1 0.50 +0.8 -0.7 Unit: mm +0 1.50 .15 -0.15 3.80 +0 5.55 .15 -0.15 + 0.50 0.15 -0.15 + 1.50 0.28 -0.1 0.80+0.1 -0.1 0.127 m ax 2.3 4 .60 +0.15 -0.15 0.60+ 0.1 - 0.1 + 2.65 0.25 -0.1 1 Gate 2 Drain 3 Source ■ Absolute Maximum Ratings Ta = 25℃ Parameter Symbol Rating Unit Drain-Source Voltage Gate-Source Voltage VDS 60 V VGS ±20 Continuous Drain Current Pulsed Drain Current (Note.1) ID 2 A IDM 8 Power Dissipation PD 20 W Junction Temperature Storage Temperature Range TJ 150 ℃ Tstg -55 to 150 Note.
