2SK1959 - N-Channel MOSFET

Key Features

  • s.
  • VDS (V) = 16V.
  • ID = 2A.
  • RDS(ON) ＜ 3.2Ω (VGS = 1.5V).
  • RDS(ON) ＜ 0.5Ω (VGS = 4V) Drain (D) Gate (G) Gate protection diode Source (S) Internal diode.
  • Absolute Maximum Ratings Ta = 25℃ 1.70 0.1 0.42 0.1 0.46 0.1 1.Gate 2.Drain 3.Source Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current (Note.1) Power Dissipation Junction Temperature Storage Temperature Range Symbol Rating Unit VDS 16 V VGS ±7 ID 2.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SK1959 N-Channel MOSFET NEC
2SK1959 30V N-Channel MOSFET VBsemi
2SK1959 N-CHANNEL MOSFET Renesas
2SK1953 SWITCHING N-CHANNEL POWER MOSFET NEC
2SK1954 SWITCHING N-CHANNEL POWER MOSFET NEC

Other Datasheets by Kexin Semiconductor

Part Number Description
2SK1954 MOS Field Effect Power Transistor
2SK1960 N-Channel Enhancement MOSFET
2SK1133 N-Channel MOSFET
2SK1254S Silicon N-Channel MOSFET
2SK1273 N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

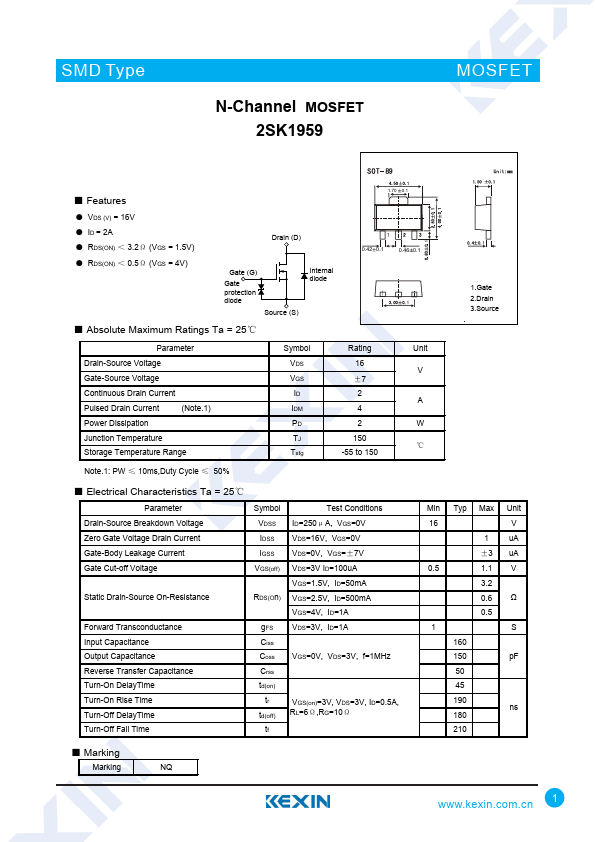

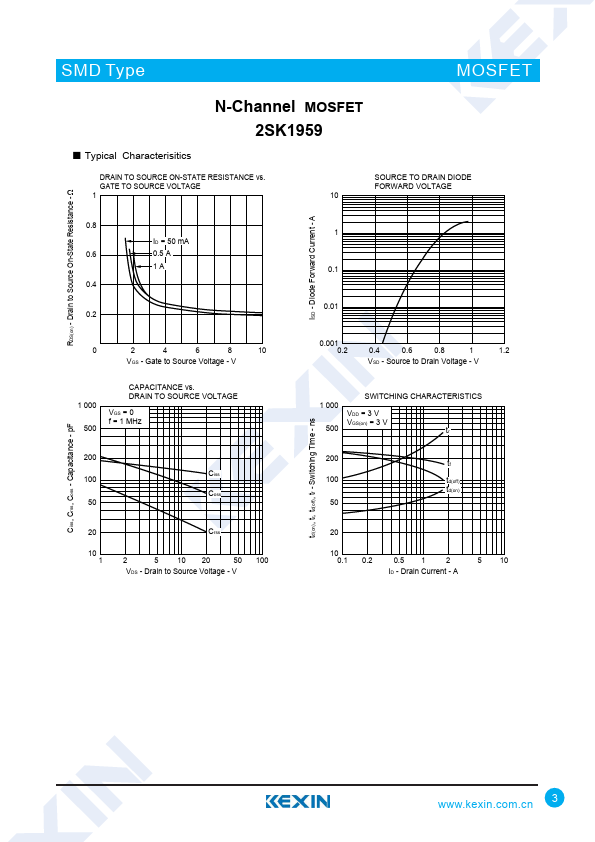

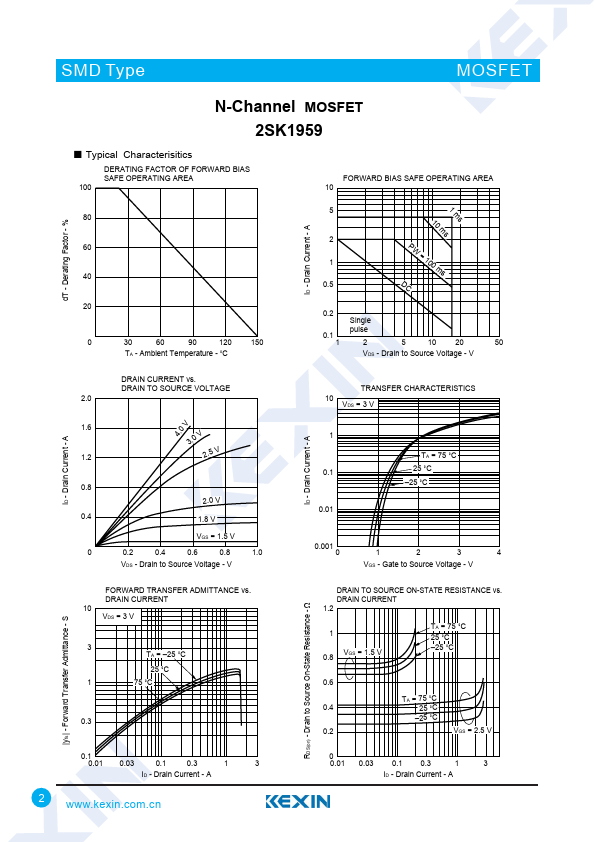

SMD Type N-Channel MOSFET 2SK1959 MOSFET ■ Features ● VDS (V) = 16V ● ID = 2A ● RDS(ON) ＜ 3.2Ω (VGS = 1.5V) ● RDS(ON) ＜ 0.5Ω (VGS = 4V) Drain (D) Gate (G) Gate protection diode Source (S) Internal diode ■ Absolute Maximum Ratings Ta = 25℃ 1.70 0.1 0.42 0.1 0.46 0.1 1.Gate 2.Drain 3.Source Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current (Note.1) Power Dissipation Junction Temperature Storage Temperature Range Symbol Rating Unit VDS 16 V VGS ±7 ID 2 A IDM 4 PD 2 W TJ 150 ℃ Tstg -55 to 150 Note.
