2SJ181S - P-Channel MOSFET

Key Features

  • s.
  • VDS (V) =-600V.
  • ID =-0.5 A (VGS =-10V).
  • RDS(ON) ＜ 25Ω (VGS =-10V) D.
  • High speed switching.
  • Low drive current G S +0 9.70 .2 -0.2 TO-252 6.50+0.15 -0.15 5.30+0.2 -0.2 4 +0 1.50 .15 -0.15 2.30 +0.1 -0.1 0.50 +0.8 -0.7 0.80+0.1 -0.1 0.127 m ax + 0.50 0.15 -0.15 + 1.50 0.28 -0.1 2.3 4 .60 +0.15 -0.15 0.60+ 0.1 - 0.1 + 2.65 0.25 -0.1 +0 5.55 .15 -0.15 3.80 Unit: mm 1 Gate 2 Drain 3 Source 4 Drain.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Dra.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SJ181S Silicon P-Channel MOSFET Renesas
2SJ181S P-Channel MOSFET Hitachi Semiconductor
2SJ181 Silicon P-Channel MOSFET Renesas
2SJ181 P-Channel MOSFET Hitachi Semiconductor
2SJ181 Silicon P-Channel MOS FET Hitachi Semiconductor

Other Datasheets by Kexin Semiconductor

Part Number Description
2SJ185 P-Channel MOSFET
2SJ130S P-Channel MOSFET
2SJ166 P-Channel MOSFET
2SJ179 P-Channel MOSFET
2SJ197 P-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

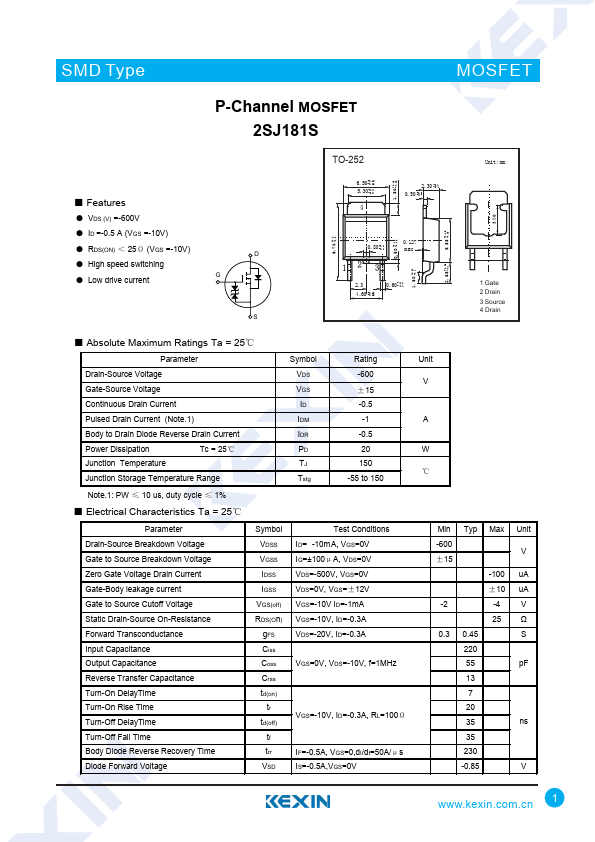

SMD Type MOSFET P-Channel MOSFET 2SJ181S ■ Features ● VDS (V) =-600V ● ID =-0.5 A (VGS =-10V) ● RDS(ON) ＜ 25Ω (VGS =-10V) D ● High speed switching ● Low drive current G S +0 9.70 .2 -0.2 TO-252 6.50+0.15 -0.15 5.30+0.2 -0.2 4 +0 1.50 .15 -0.15 2.30 +0.1 -0.1 0.50 +0.8 -0.7 0.80+0.1 -0.1 0.127 m ax + 0.50 0.15 -0.15 + 1.50 0.28 -0.1 2.3 4 .60 +0.15 -0.15 0.60+ 0.1 - 0.1 + 2.65 0.25 -0.1 +0 5.55 .15 -0.15 3.80 Unit: mm 1 Gate 2 Drain 3 Source 4 Drain ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current (Note.
