2SD2414 Datasheet Silicon NPN Triple Diffused Type Transistors

Manufacturer: Kexin Semiconductor

Datasheet Details

Part number	2SD2414
Manufacturer	Kexin Semiconductor
File Size	38.74 KB
Description	Silicon NPN Triple Diffused Type Transistors
Download	2SD2414 Download (PDF)

SMD Type Transistors Silicon NPN Triple Diffused Type 2SD2414.

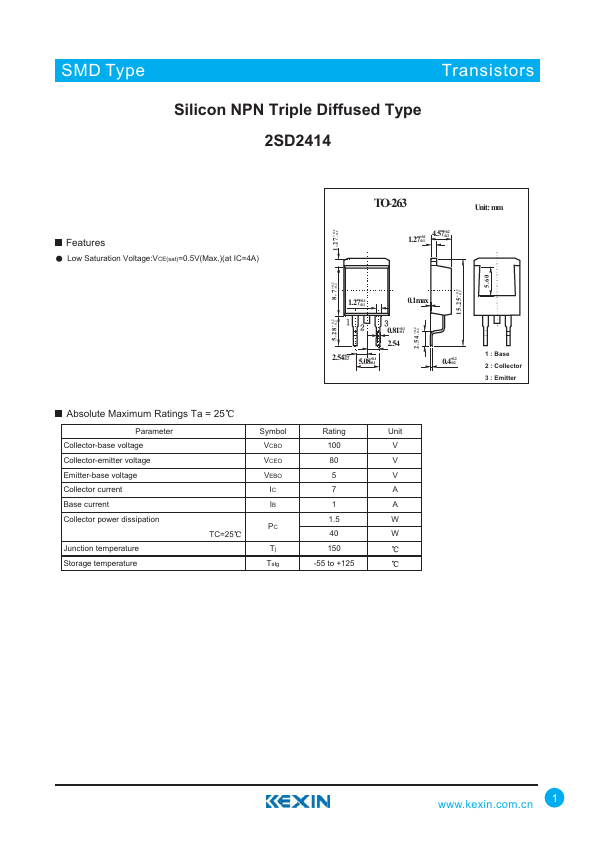

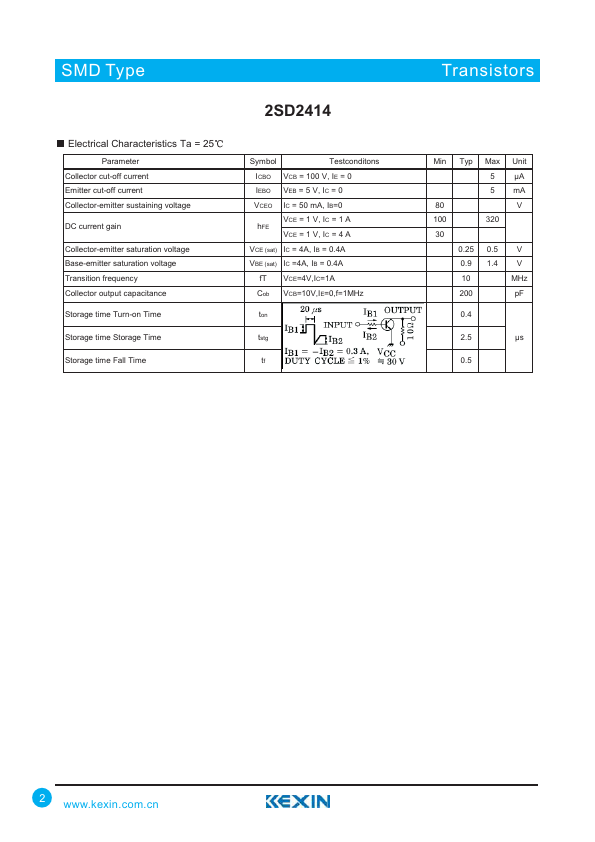

Low Saturation Voltage:VCE(sat)=0.5V(Max. )(at IC=4A) + 1 .2 7 0.1 -0 .1 TO-263 +0.2 4.57 +0.1 -0.2 1.27-0.1 Unit: mm 5.60 + 0 .2 -0 .2 + 8 .7 0.2 -0 .2 + 5 .2 8 0.2 -0 .2 1.27+0.1 -0.1 0.1max +0.2 2.54-0.2 +0.1 5.08-0.1 0.81+0.1 -0.1 2.54 + 2 .5 4 0.2 -0 .2 0.4+0.2 -0.2 1 5 . 2 5 1 : Base 2 : Collector 3 : Emitter Absolute Maximum Ratings Ta = 25 Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Base current Collector po.
