2SD2402 Datasheet NPN Transistors

Manufacturer: Kexin Semiconductor

📥 Download Datasheet

Overview

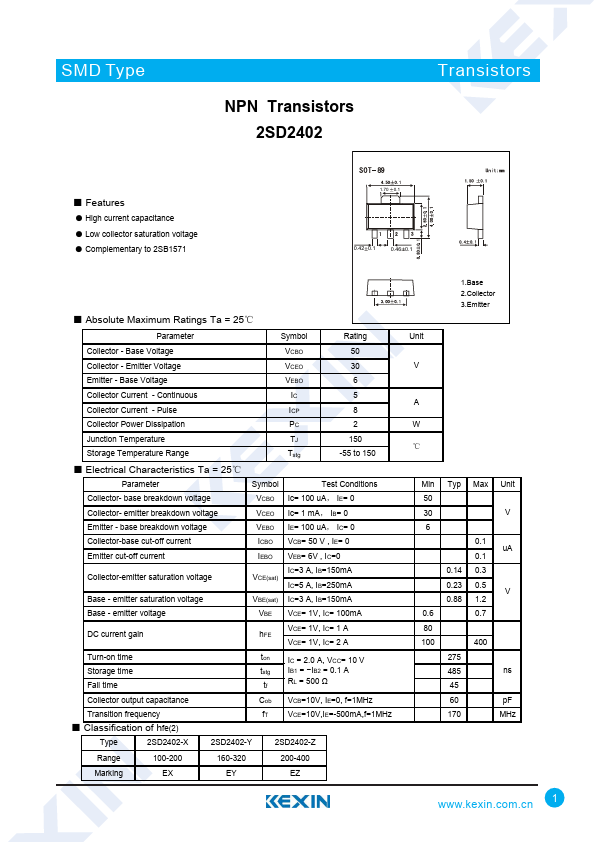

SMD Type NPN Transistors 2SD2402 Transistors ■.

Key Features

  • s.
  • High current capacitance.
  • Low collector saturation voltage.
  • Complementary to 2SB1571 1.70 0.1 0.42 0.1 0.46 0.1.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Symbol Rating Collector - Base Voltage VCBO 50 Collector - Emitter Voltage VCEO 30 Emitter - Base Voltage VEBO 6 Collector Current - Continuous IC 5 Collector Current - Pulse ICP 8 Collector Power Dissipation PC 2 Junction Temperature TJ 150 Storage Temperature Range Tstg -55 to 150.
