2SD1583-Z Datasheet NPN Silicon Epitaxial Transistor

Manufacturer: Kexin Semiconductor

Datasheet Details

Part number	2SD1583-Z
Manufacturer	Kexin Semiconductor
File Size	38.43 KB
Description	NPN Silicon Epitaxial Transistor
Download	2SD1583-Z Download (PDF)

SMD Type.

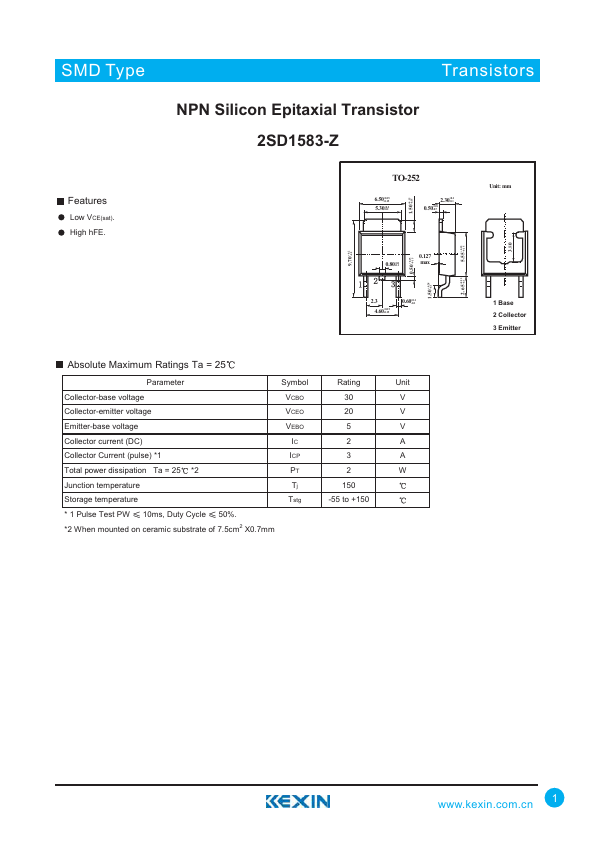

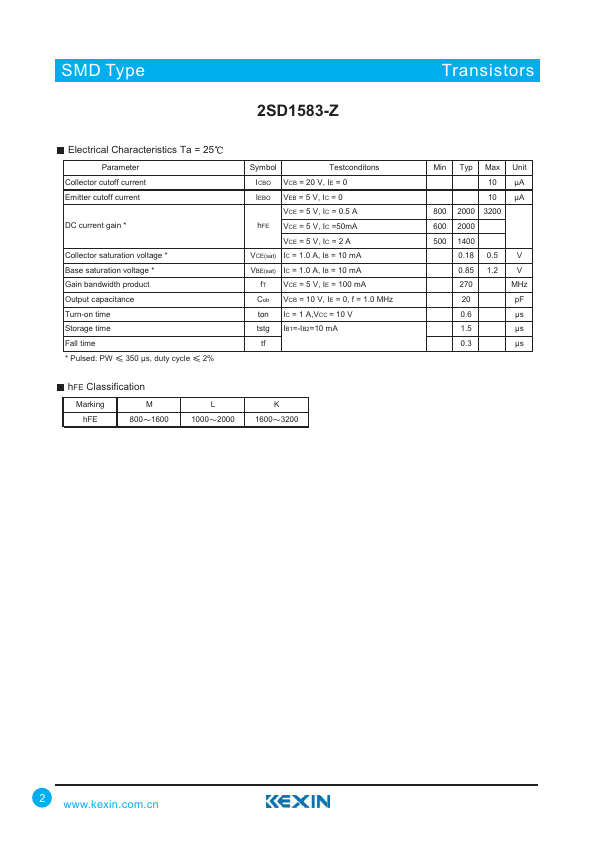

Low VCE(sat). High hFE. Transistors NPN Silicon Epitaxial Transistor 2SD1583-Z TO-252 6.50+0.15 -0.15 5.30+0.2 -0.2 2.30+0.1 -0.1 0.50+0.8 -0.7 Unit: mm + 1.50 0.15 -0.15 3.80 + 0 .1 5 5 .5 5 -0.15 + 9.70 0.2 -0.2 0.80+0.1 -0.1 0.127 max +0 2.65 .25 -0.1 +0 0.50 .15 -0.15 +0 1.50 .28 -0.1 2.3 4.60+0.15 -0.15 0.60+0.1 -0.1 1 Base 2 Collector 3 Emitter Absolute Maximum Ratings Ta = 25 Parameter Symbol Rating Unit Collector-base voltage VCBO 30 V Collector-emitter voltage.
