2SD1420 Datasheet NPN Transistors

Manufacturer: Kexin Semiconductor

📥 Download Datasheet

Overview

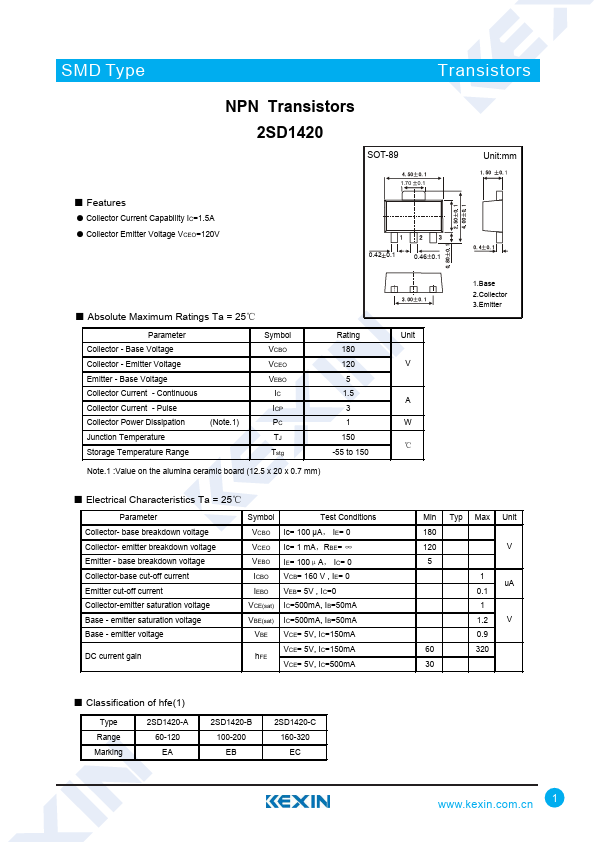

SMD Type Transistors NPN Transistors 2SD1420 SOT-89 Unit:mm ■.

Key Features

  • s.
  • Collector Current Capability IC=1.5A.
  • Collector Emitter Voltage VCEO=120V 1.70 0.1 0.42 0.1 0.46 0.1.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Collector - Base Voltage Collector - Emitter Voltage Emitter - Base Voltage Collector Current - Continuous Collector Current - Pulse Collector Power Dissipation Junction Temperature Storage Temperature Range (Note.1) Symbol VCBO VCEO VEBO IC ICP PC TJ Tstg Rating Unit 180 120 V 5 1.5 A 3 1 W 150 ℃ -55 to 150 Note.1 :.
