2SD1419 Datasheet NPN Transistors

Manufacturer: Kexin Semiconductor

📥 Download Datasheet

Overview

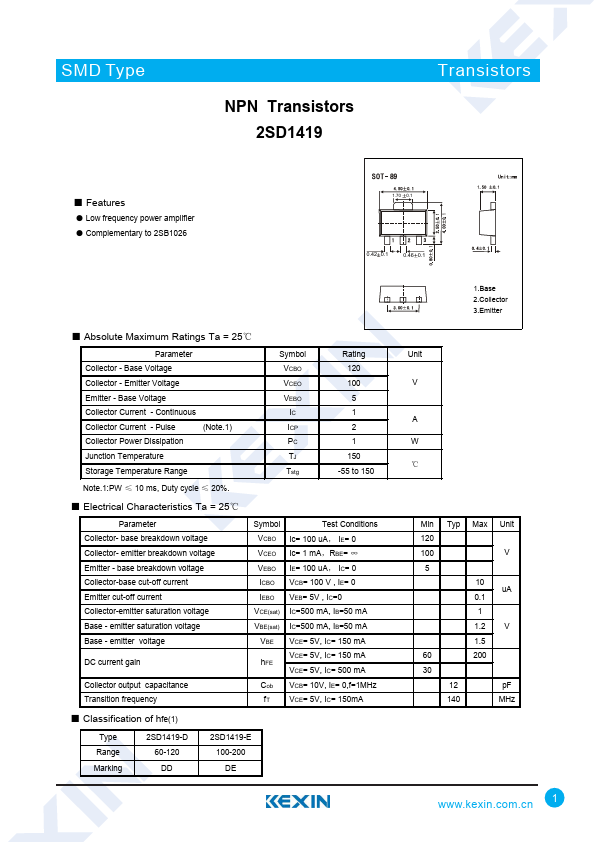

SMD Type NPN Transistors 2SD1419 Transistors ■.

Key Features

  • s.
  • Low frequency power amplifier.
  • Complementary to 2SB1026 1.70 0.1 0.42 0.1 0.46 0.1.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Collector - Base Voltage Collector - Emitter Voltage Emitter - Base Voltage Collector Current - Continuous Collector Current - Pulse (Note.1) Collector Power Dissipation Junction Temperature Storage Temperature Range Symbol VCBO VCEO VEBO IC ICP PC TJ Tstg Rating 120 100 5 1 2 1 150 -55 to 150 Note.1:PW ≤ 10 ms, Duty cycle ≤ 20%.
