2SA1980UF - PNP Transistors

Key Features

  • s.
  • Low collector saturation voltage.
  • Low output capacitance : Cob=4pF(Typ. ).
  • Complements to 2SC5343UF 1 Base 2 Emitter 3 Collector.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Collector - Base Voltage Collector - Emitter Voltage Emitter - Base Voltage Collector Current - Continuous Collector Power Dissipation Junction Temperature Storage Temperature range Symbol Rating Unit VCBO -50 VCEO -50 V VEBO -5 IC -150 mA PC 200 mW TJ 150 ℃ Tstg -55 to 150.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SA1980UF PNP Silicon Transistor AUK corp
2SA1980UF PNP Silicon Transistor KODENSHI
2SA1980U PNP Silicon Transistor AUK corp
2SA1980 PNP Silicon Transistor AUK corp
2SA1980 PNP Transistor Secos

Other Datasheets by Kexin Semiconductor

Part Number Description
2SA1981SF PNP Transistors
2SA1900 Medium power transistor
2SA1944 PNP Transistors
2SA1945 PNP Transistors
2SA1945-HF PNP Transistors

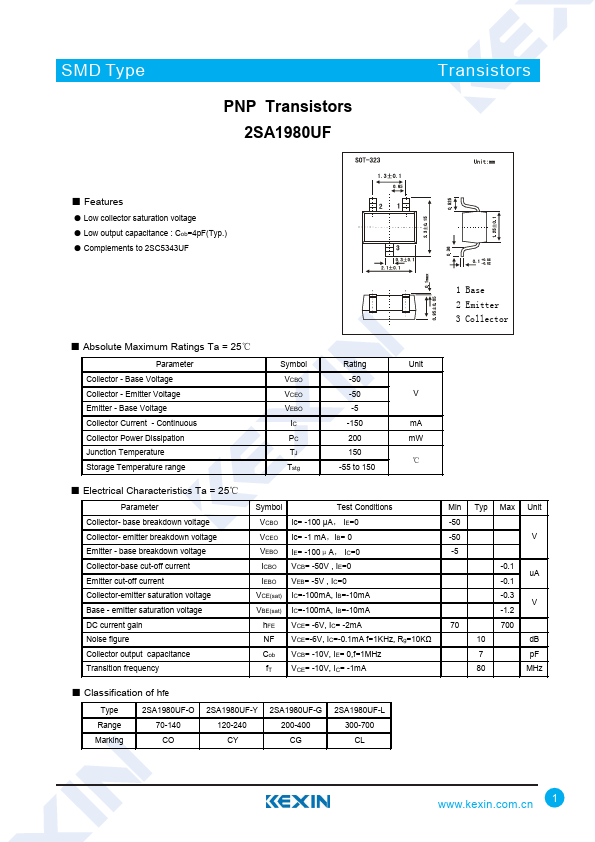

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text
SMD Type PNP Transistors 2SA1980UF Transistors ■ Features ● Low collector saturation voltage ● Low output capacitance : Cob=4pF(Typ.
