2SA1944 - PNP Transistors

Key Features

  • s.
  • High voltage.
  • Low collector-to-emitter saturation voltage.
  • High hFE hFE=400 to 800.
  • Small package for mounting.
  • Complements to 2SC5209 1.70 0.1 0.42 0.1 0.46 0.1.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Collector - Base Voltage Collector - Emitter Voltage Symbol Rating Unit VCBO -50 VCEO -50 V Emitter - Base Voltage VEBO -6 Collector Current - Continuous Colletor Current - Pulse Collector Power Dissipation Junction Temperature Storage Temper.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SA1944 Silicon PNP Transistor Isahaya Electronics
2SA1940 Silicon PNP Transistor Toshiba Semiconductor
2SA1940 SILICON POWER TRANSISTOR SavantIC
2SA1940 POWER TRANSISTOR Inchange Semiconductor
2SA1941 Silicon PNP Transistor Toshiba Semiconductor

Other Datasheets by Kexin Semiconductor

Part Number Description
2SA1945 PNP Transistors
2SA1945-HF PNP Transistors
2SA1946 PNP Transistors
2SA1947 PNP Transistors
2SA1947-HF PNP Transistors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

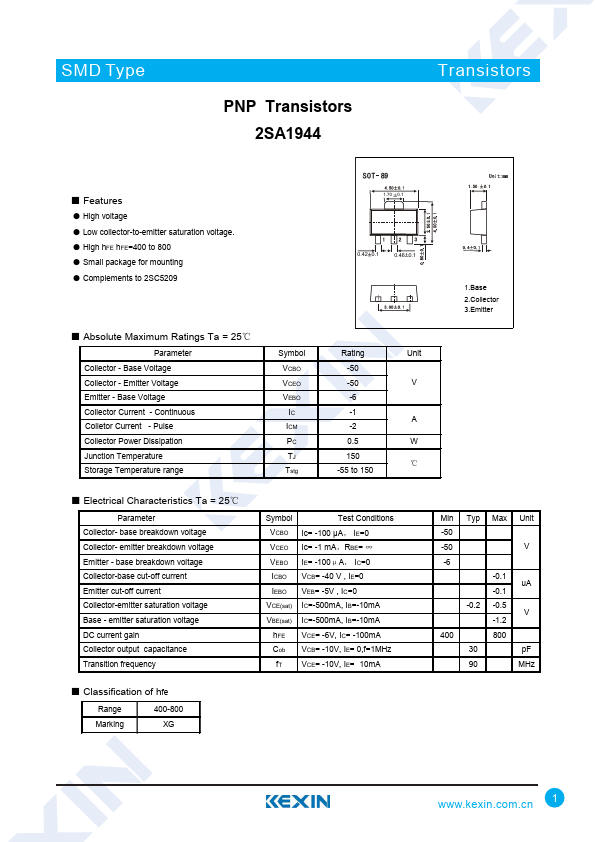

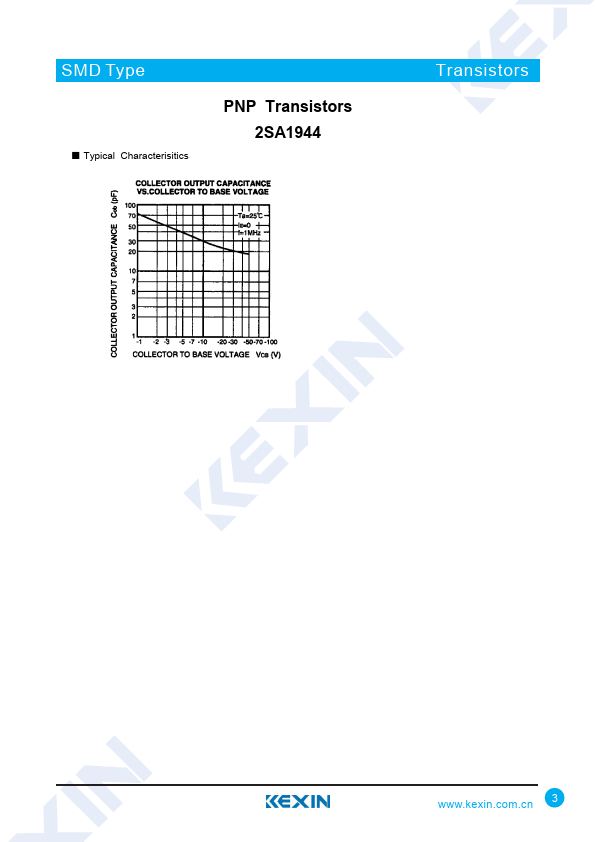

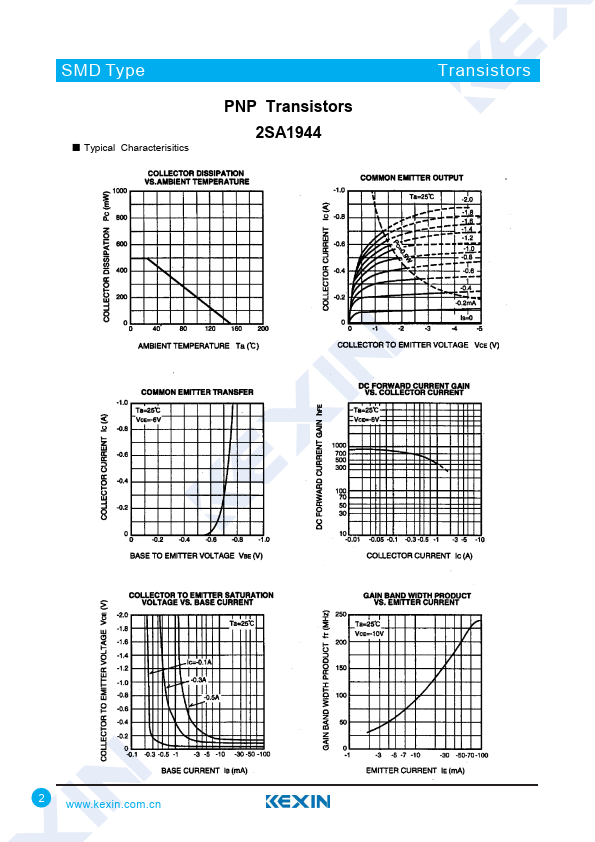

SMD Type PNP Transistors 2SA1944 Transistors ■ Features ● High voltage ● Low collector-to-emitter saturation voltage. ● High hFE hFE=400 to 800 ● Small package for mounting ● Complements to 2SC5209 1.70 0.1 0.42 0.1 0.46 0.1 ■ Absolute Maximum Ratings Ta = 25℃ Parameter Collector - Base Voltage Collector - Emitter Voltage Symbol Rating Unit VCBO -50 VCEO -50 V Emitter - Base Voltage VEBO -6 Collector Current - Continuous Colletor Current - Pulse Collector Power Dissipation Junction Temperature Storage Temperature range IC -1 A ICM -2 PC 0.5 W TJ 150 ℃ Tstg -55 to 150 1.Base 2.Collector 3.
