2SA1947 - PNP Transistors

Key Features

  • s.
  • High fT,fT=100MHz(typ).
  • High collector current ICM=-1.5A.
  • Small package for mounting.
  • Complements to 2SC5214 1.70 0.1 0.42 0.1 0.46 0.1 1.Base 2.Collector 3.Emitter.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Symbol Rating Unit Collector - Base Voltage VCBO -30 Collector - Emitter Voltage VCEO -25 V Emitter - Base Voltage VEBO -4 Collector Current - Continuous Colletor Current - Pulse IC -1 A ICM -1.5 Collector Power Dissipation PC 0.5 W.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SA1947 Silicon PNP Transistor Isahaya Electronics
2SA1940 Silicon PNP Transistor Toshiba Semiconductor
2SA1940 SILICON POWER TRANSISTOR SavantIC
2SA1940 POWER TRANSISTOR Inchange Semiconductor
2SA1941 Silicon PNP Transistor Toshiba Semiconductor

Other Datasheets by Kexin Semiconductor

Part Number Description
2SA1947-HF PNP Transistors
2SA1944 PNP Transistors
2SA1945 PNP Transistors
2SA1945-HF PNP Transistors
2SA1946 PNP Transistors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

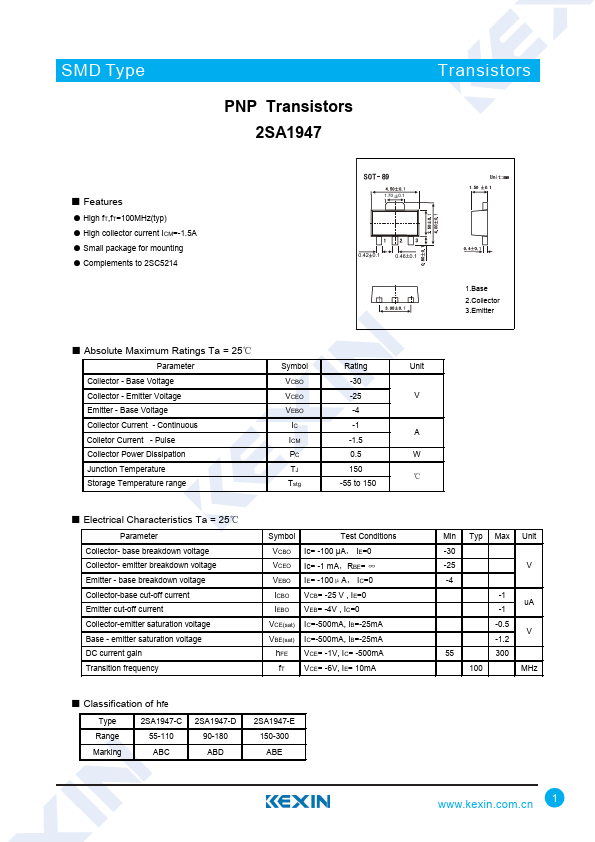

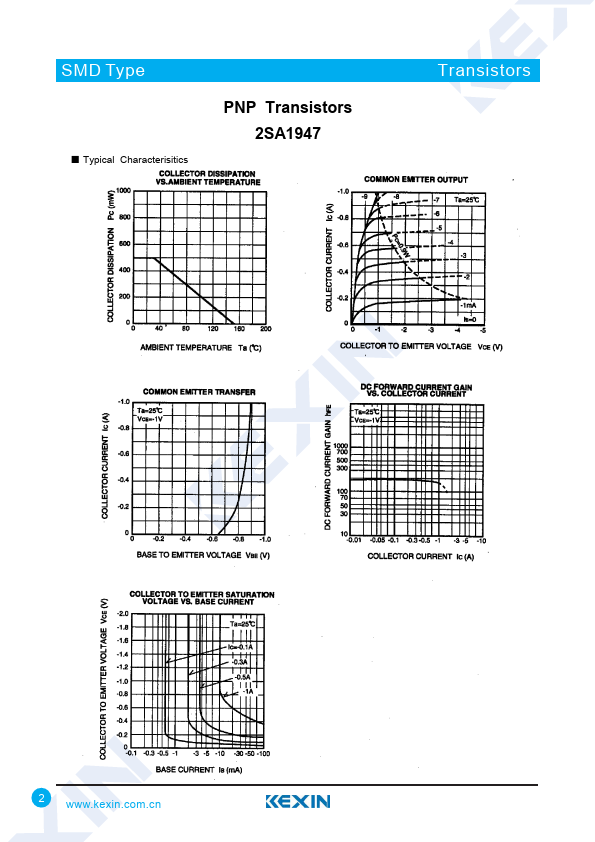

SMD Type PNP Transistors 2SA1947 Transistors ■ Features ● High fT,fT=100MHz(typ) ● High collector current ICM=-1.5A ● Small package for mounting ● Complements to 2SC5214 1.70 0.1 0.42 0.1 0.46 0.1 1.Base 2.Collector 3.Emitter ■ Absolute Maximum Ratings Ta = 25℃ Parameter Symbol Rating Unit Collector - Base Voltage VCBO -30 Collector - Emitter Voltage VCEO -25 V Emitter - Base Voltage VEBO -4 Collector Current - Continuous Colletor Current - Pulse IC -1 A ICM -1.5 Collector Power Dissipation PC 0.
