2SA1979UF - PNP Transistors

Key Features

  • s.
  • Large collector current : ICMax=-500mA.
  • Complements to 2SC5342UF 1 Base 2 Emitter 3 Collector.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Collector - Base Voltage Collector - Emitter Voltage Emitter - Base Voltage Collector Current - Continuous Collector Power Dissipation Junction Temperature Storage Temperature range Symbol Rating Unit VCBO -40 VCEO -32 V VEBO -5 IC -500 mA PC 200 mW TJ 150 ℃ Tstg -55 to 150.
  • Electrical Characteristics Ta = 25℃ P.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SA1979UF PNP Silicon Transistor AUK corp
2SA1979UF PNP Silicon Transistor KODENSHI
2SA1979U PNP Silicon Transistor AUK corp
2SA1979 PNP Silicon Transistor AUK corp
2SA1979M PNP Silicon Transistor AUK corp

Other Datasheets by Kexin Semiconductor

Part Number Description
2SA1900 Medium power transistor
2SA1944 PNP Transistors
2SA1945 PNP Transistors
2SA1945-HF PNP Transistors
2SA1946 PNP Transistors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

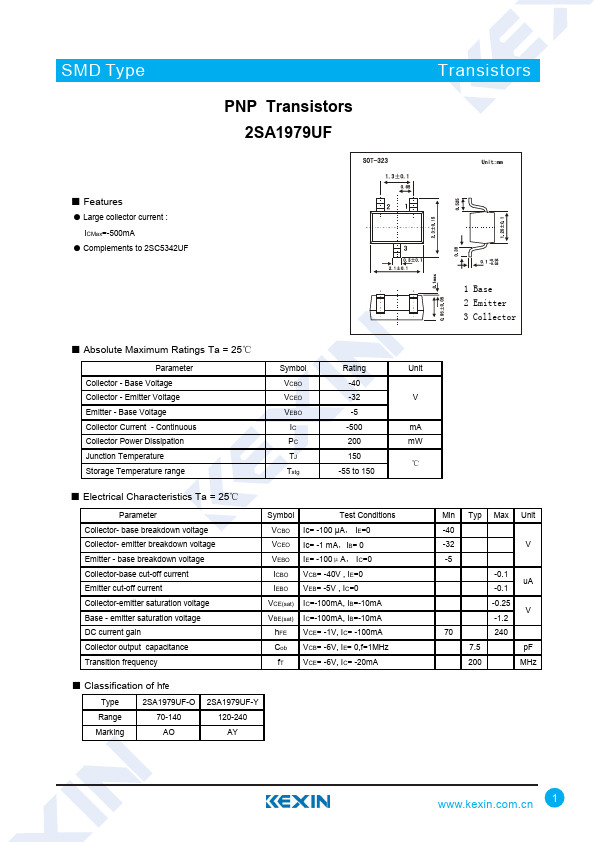

SMD Type PNP Transistors 2SA1979UF Transistors ■ Features ● Large collector current : ICMax=-500mA ● Complements to 2SC5342UF 1 Base 2 Emitter 3 Collector ■ Absolute Maximum Ratings Ta = 25℃ Parameter Collector - Base Voltage Collector - Emitter Voltage Emitter - Base Voltage Collector Current - Continuous Collector Power Dissipation Junction Temperature Storage Temperature range Symbol Rating Unit VCBO -40 VCEO -32 V VEBO -5 IC -500 mA PC 200 mW TJ 150 ℃ Tstg -55 to 150 ■ Electrical Characteristics Ta = 25℃ Parameter Collector- base breakdown voltage Collector- emitter breakdown voltage Emitter - base breakdown voltage Collector-base cut-off current Emitter cut-off current Collector-emitter saturation voltage Base - emitter saturation voltage DC current gain Co
