2SA1685 - PNP Transistors

Key Features

  • s.
  • Fast switching speed.
  • High gain-bandwidth product.
  • Low saturation voltage.
  • Complementary to 2SC4443 1.Base 2.Emitter 3.Collector.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Symbol Rating Unit Collector - Base Voltage VCBO -40 Collector - Emitter Voltage VCEO -20 V Emitter - Base Voltage VEBO -5 Collector Current - Continuous Collector Current -Pulse IC -150 mA ICp -300 Collector Power Dissipation PC 150 mW Junction Temperature Storage Te.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SA1685 PNP/NPN Epitaxial Planar Silicon Transistors Sanyo Semicon Device
2SA1680 TRANSISTOR Toshiba Semiconductor
2SA1681 Silicon PNP Transistor Toshiba Semiconductor
2SA1682 PNP Epitaxial Planar Silicon Transistor Sanyo Semicon Device
2SA1683 PNP Epitaxial Planar Silicon Transistors Sanyo Semicon Device

Other Datasheets by Kexin Semiconductor

Part Number Description
2SA1681 PNP Transistors
2SA1607 PNP Transistors
2SA1608 Transistor
2SA1611 Transistor
2SA1612 Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

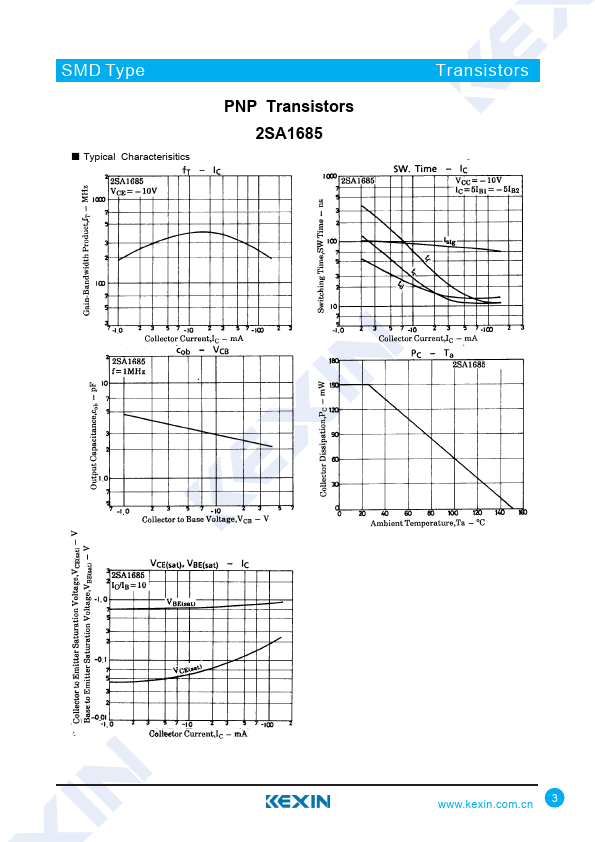

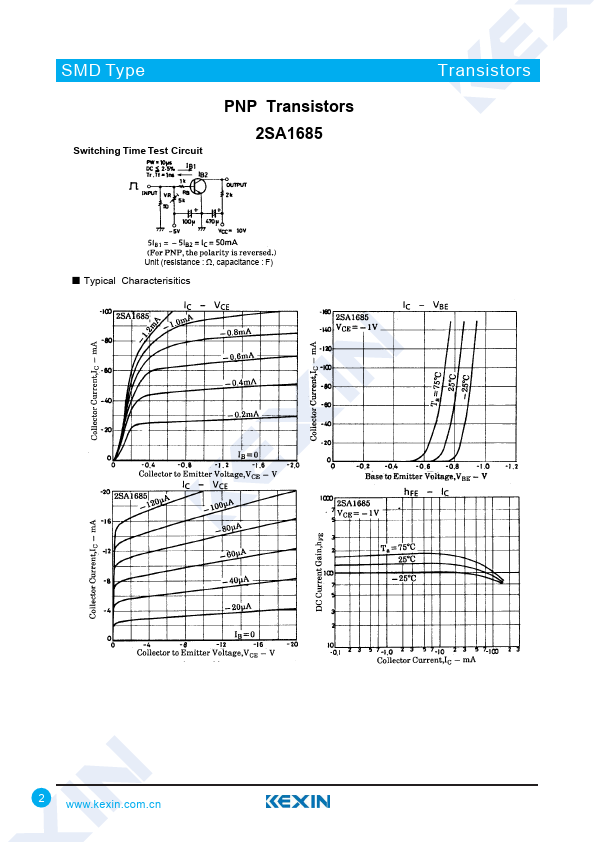

SMD Type PNP Transistors 2SA1685 Transistors ■ Features ● Fast switching speed. ● High gain-bandwidth product. ● Low saturation voltage. ● Complementary to 2SC4443 1.Base 2.Emitter 3.
