2SA1681 - PNP Transistors

Key Features

  • s.
  • Low saturation voltage.
  • High speed switching time.
  • Small flat package.
  • PC = 1.0 to 2.0 W (mounted on a ceramic substrate).
  • Complementary to 2SC4409 1.70 0.1 0.42 0.1 0.46 0.1 1.Base 2.Collector 3.Emitter.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Collector - Base Voltage Collector - Emitter Voltage Emitter - Base Voltage Collector Current - Continuous Base Current Collector Power Dissipation Junction Temperature Storage Temperature range Symbol VCBO VCEO.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SA1681 Silicon PNP Transistor Toshiba Semiconductor
2SA1680 TRANSISTOR Toshiba Semiconductor
2SA1682 PNP Epitaxial Planar Silicon Transistor Sanyo Semicon Device
2SA1683 PNP Epitaxial Planar Silicon Transistors Sanyo Semicon Device
2SA1685 PNP/NPN Epitaxial Planar Silicon Transistors Sanyo Semicon Device

Other Datasheets by Kexin Semiconductor

Part Number Description
2SA1685 PNP Transistors
2SA1607 PNP Transistors
2SA1608 Transistor
2SA1611 Transistor
2SA1612 Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

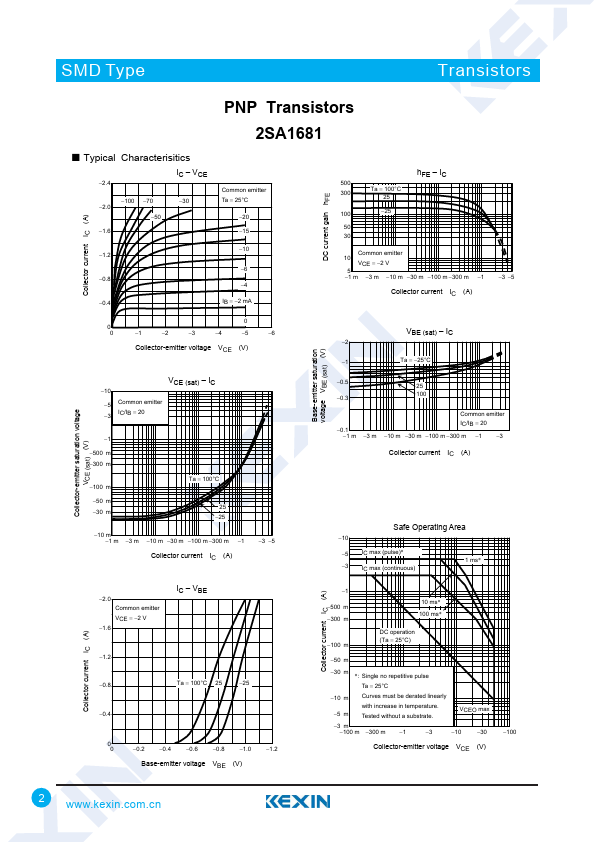

SMD Type PNP Transistors 2SA1681 Transistors ■ Features ● Low saturation voltage ● High speed switching time ● Small flat package ● PC = 1.0 to 2.0 W (mounted on a ceramic substrate) ● Complementary to 2SC4409 1.70 0.1 0.42 0.1 0.46 0.1 1.Base 2.Collector 3.Emitter ■ Absolute Maximum Ratings Ta = 25℃ Parameter Collector - Base Voltage Collector - Emitter Voltage Emitter - Base Voltage Collector Current - Continuous Base Current Collector Power Dissipation Junction Temperature Storage Temperature range Symbol VCBO VCEO VEBO IC IB PC TJ Tstg Rating -60 -50 -6 -2 -0.
