2KK5093 - N-Channel MOSFET

Key Features

  • s.
  • VDS = 40 V.
  • ID (at VGS=10V) = 195 A.
  • RDS(ON) (at VGS = 10 V) < 1.3 mΩ.
  • RDS(ON) (at VGS = 4.5 V) < 1.8 mΩ.
  • 100% UIS Tested.
  • 100% Rg Tested D MOSFET G S.
  • Absolute Maximum Ratings (TA = 25℃ unless otherwise noted) Parameter Symbol Rating Unit Drain-Source Voltage Gate-Source Voltage VDS 40 V VGS ±20 Continuous Drain Current TC = 25℃ 195 ID TC = 100℃ 195 A Pulsed Drain Current (Note 2) IDM 1000 Continuous Drain Current TA = 25℃ TA.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2KK904 N-Channel Silicon Power MOS FET Fuji Semiconductors

Other Datasheets by Kexin Semiconductor

Part Number Description
2KK5092 N-Channel MOSFET
2KK5095 N-Channel MOSFET
2KK5096DFN N-Channel MOSFET
2KK5097DFN N-Channel MOSFET
2KK5098DFN N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

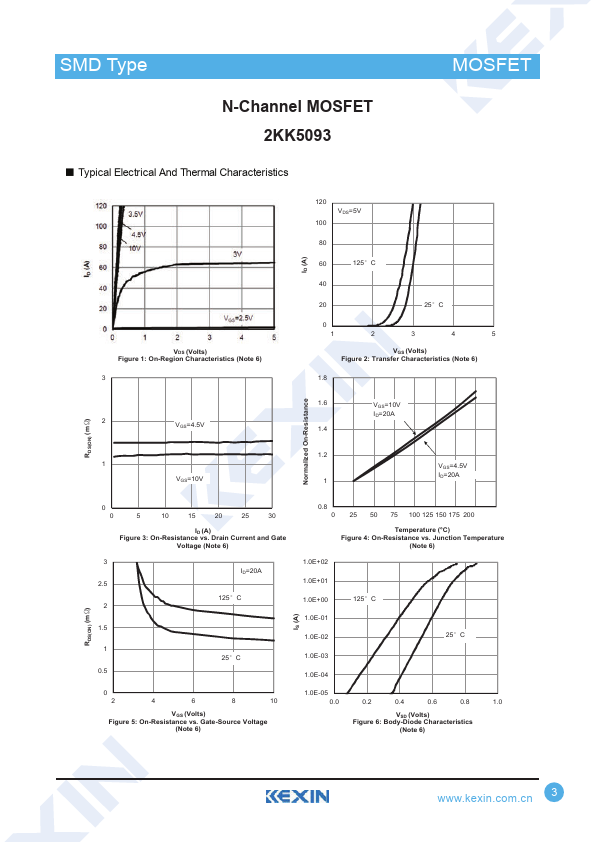

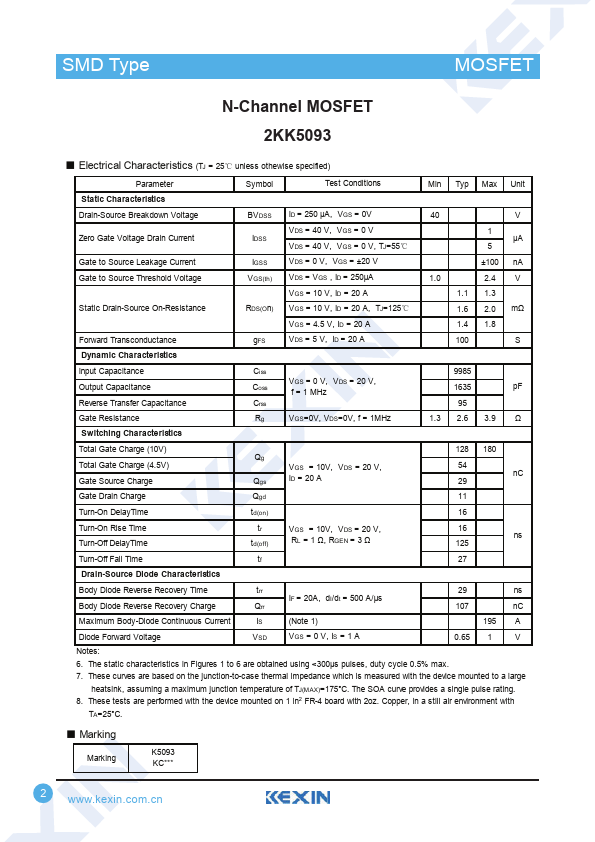

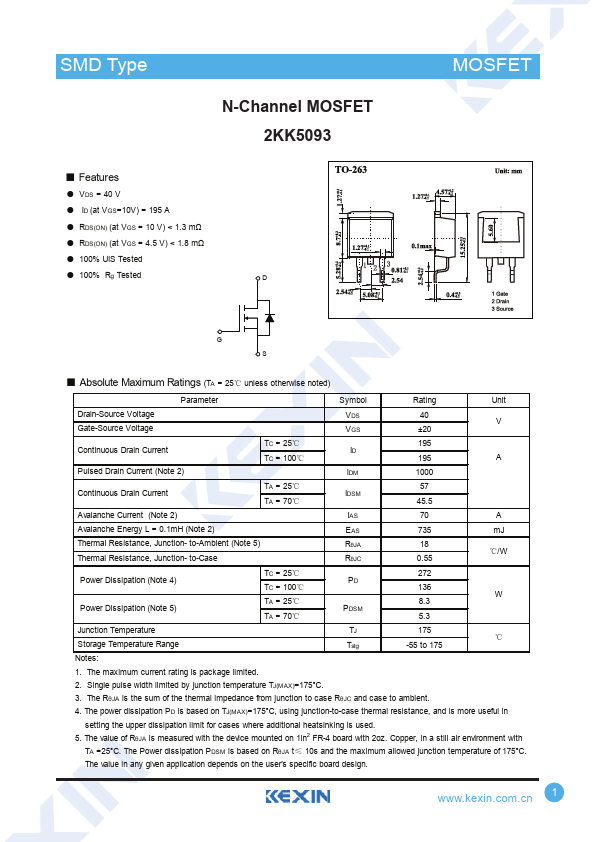

SMD Type N-Channel MOSFET 2KK5093 ■ Features ● VDS = 40 V ● ID (at VGS=10V) = 195 A ● RDS(ON) (at VGS = 10 V) < 1.3 mΩ ● RDS(ON) (at VGS = 4.5 V) < 1.8 mΩ ● 100% UIS Tested ● 100% Rg Tested D MOSFET G S ■ Absolute Maximum Ratings (TA = 25℃ unless otherwise noted) Parameter Symbol Rating Unit Drain-Source Voltage Gate-Source Voltage VDS 40 V VGS ±20 Continuous Drain Current TC = 25℃ 195 ID TC = 100℃ 195 A Pulsed Drain Current (Note 2) IDM 1000 Continuous Drain Current TA = 25℃ TA = 70℃ IDSM 57 45.5 Avalanche Current (Note 2) IAS 70 A Avalanche Energy L = 0.1mH (Note 2) EAS 735 mJ Thermal Resistance, Junction- to-Ambient (Note 5) Thermal Resistance, Junction- to-Case RθJA RθJC 18 0.
