2KK5056 - N-Channel MOSFET

Key Features

  • s.
  • VDS (V) = 40 V.
  • ID = 60 A.
  • RDS(ON) (at VGS = 10 V) < 8 mΩ.
  • RDS(ON) (at VGS = 4.5 V) < 10.5 mΩ TO-252 D G S MOSFET 23 1 1. Gate (G) 2. Drain (D) 3. Source (S).
  • Absolute Maximum Ratings (TC = 25℃ unless otherwise noted) Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS Continuous Drain Current ID Pulsed Drain Current (Note 1) IDM Single Pulse Avalanche Energy (Note 2) EAS Peak Diode Recovery dv/dt (Note 3) dv/dt Power Dissipation PD.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2KK904 N-Channel Silicon Power MOS FET Fuji Semiconductors

Other Datasheets by Kexin Semiconductor

Part Number Description
2KK5001DS N-Channel Enhancement MOSFET
2KK5002 N-Channel Enhancement MOSFET
2KK5003 N-Channel Enhancement MOSFET
2KK5004 N-Channel Enhancement MOSFET
2KK5004EDS N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

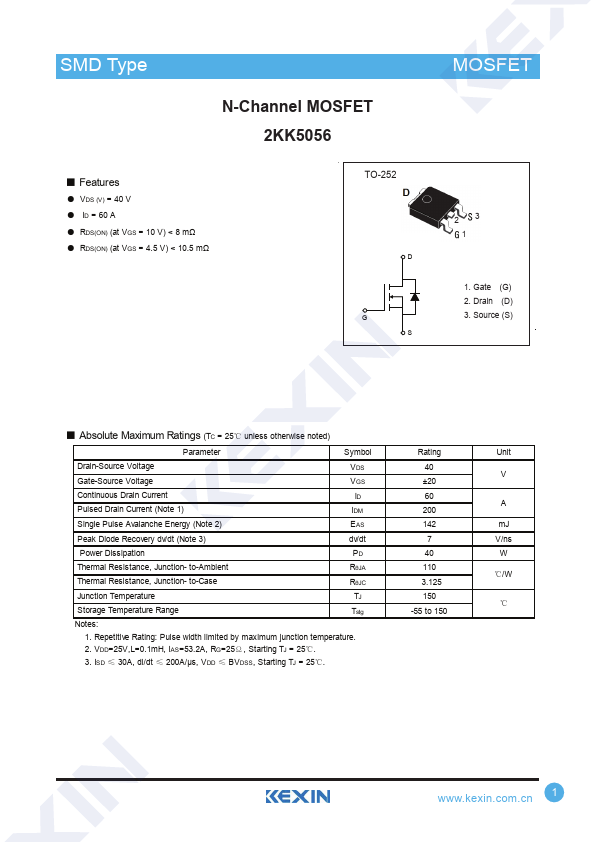

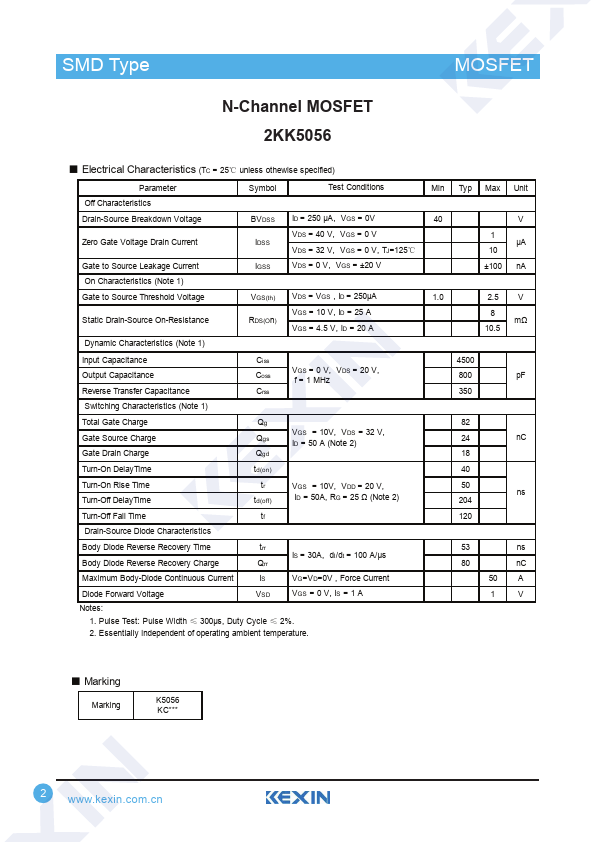

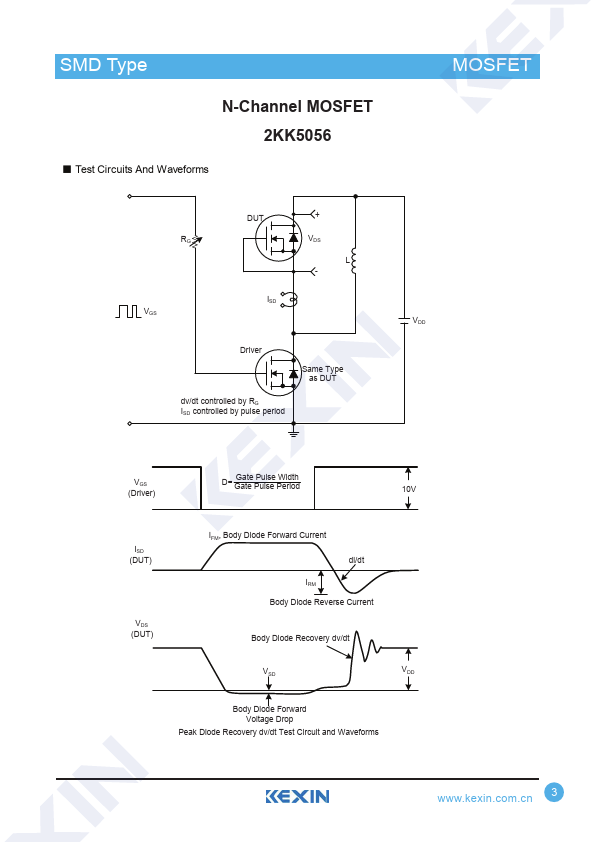

SMD Type N-Channel MOSFET 2KK5056 ■ Features ● VDS (V) = 40 V ● ID = 60 A ● RDS(ON) (at VGS = 10 V) < 8 mΩ ● RDS(ON) (at VGS = 4.5 V) < 10.5 mΩ TO-252 D G S MOSFET 23 1 1. Gate (G) 2. Drain (D) 3. Source (S) ■ Absolute Maximum Ratings (TC = 25℃ unless otherwise noted) Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS Continuous Drain Current ID Pulsed Drain Current (Note 1) IDM Single Pulse Avalanche Energy (Note 2) EAS Peak Diode Recovery dv/dt (Note 3) dv/dt Power Dissipation PD Thermal Resistance, Junction- to-Ambient RθJA Thermal Resistance, Junction- to-Case RθJC Junction Temperature TJ Storage Temperature Range Tstg Notes: 1. Repetitive Rating: Pulse width limited by maximum junction temperature. 2. VDD=25V,L=0.1mH, IAS=53.
