2KK5001DS - N-Channel Enhancement MOSFET

Features

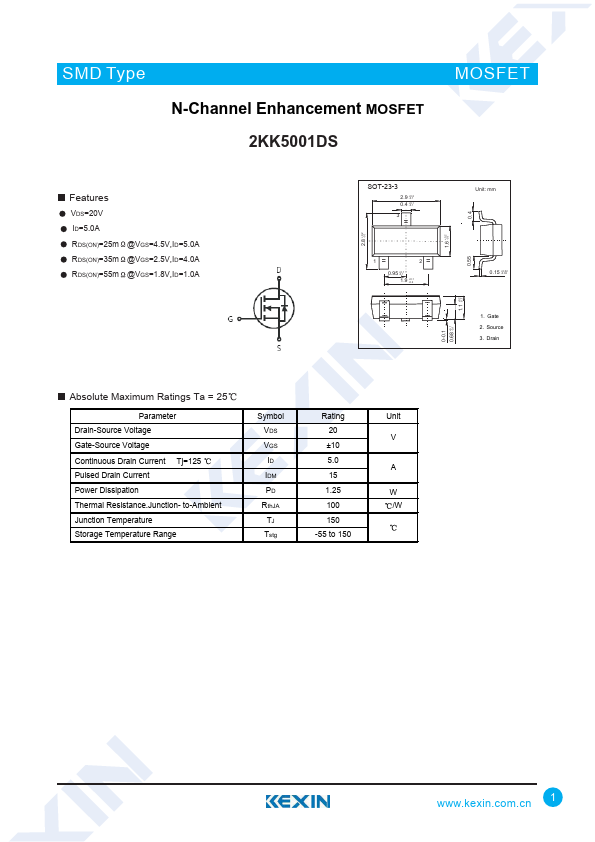

  • VDS=20V ID=5.0A RDS(ON)=25m @VGS=4.5V,ID=5.0A RDS(ON)=35m @VGS=2.5V,ID=4.0A RDS(ON)=55m @VGS=1.8V,ID=1.0A +0.2 2.8 -0.1 SOT-23-3 2.9 +0.2 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.2 +0.2 1.6 -0.1 +0.2 1.1 -0.1 0.55 0.4 Unit: mm 0.15 +0.02 -0.02 1. Gate 2. Source 3. Drain 0-0.1 +0.1 0.68 -0.1 Absolute Maximum Ratings Ta = 25 Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Tj=125 Pulsed Drain Current Power Dissipation Thermal Resistance. Junction- t.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2KK904 N-Channel Silicon Power MOS FET Fuji Semiconductors

Other Datasheets by Kexin Semiconductor

Part Number Description
2KK5002 N-Channel Enhancement MOSFET
2KK5003 N-Channel Enhancement MOSFET
2KK5004 N-Channel Enhancement MOSFET
2KK5005 N-Channel Enhancement MOSFET
2KK5006DS N-Channel Enhancement MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

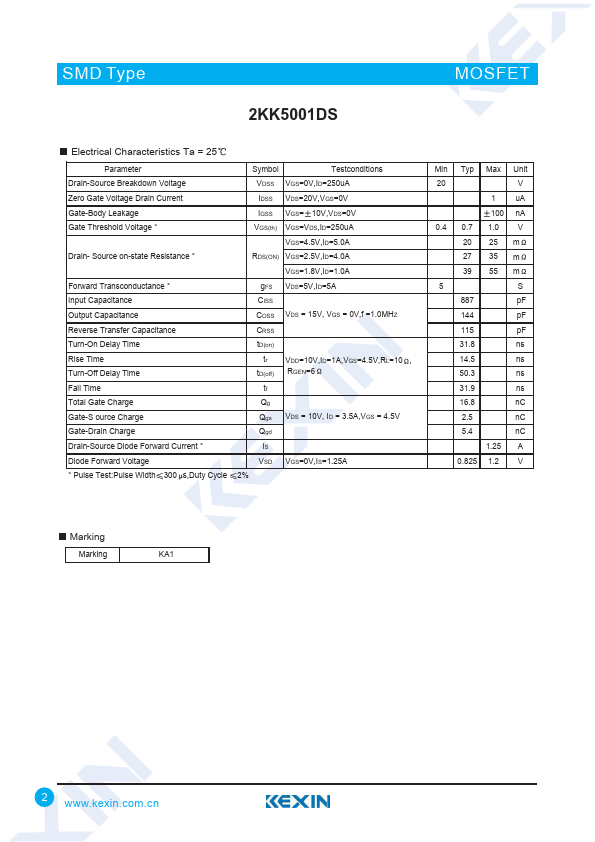

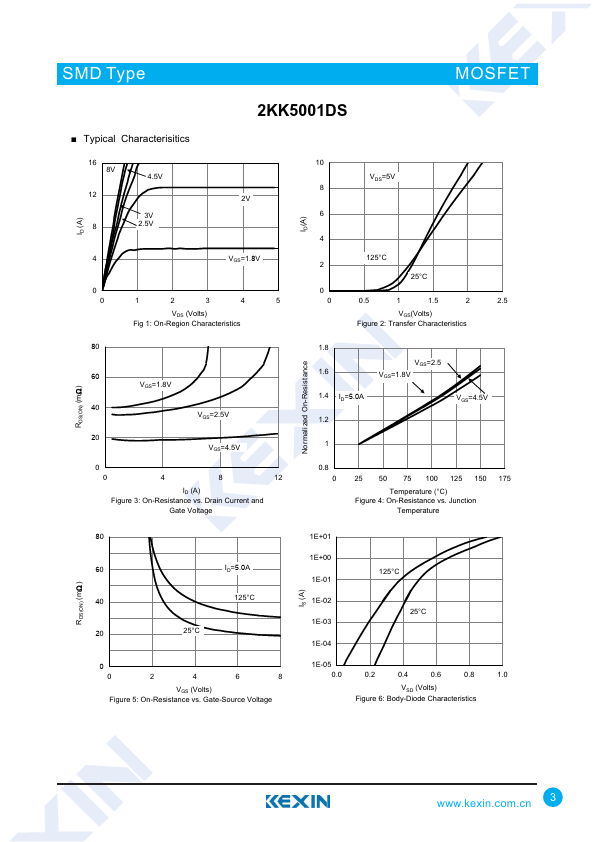

SMD Type N-Channel Enhancement MOSFET 2KK5001DS MOSFIECT Features VDS=20V ID=5.0A RDS(ON)=25m @VGS=4.5V,ID=5.0A RDS(ON)=35m @VGS=2.5V,ID=4.0A RDS(ON)=55m @VGS=1.8V,ID=1.0A +0.2 2.8 -0.1 SOT-23-3 2.9 +0.2 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.2 +0.2 1.6 -0.1 +0.2 1.1 -0.1 0.55 0.4 Unit: mm 0.15 +0.02 -0.02 1. Gate 2. Source 3. Drain 0-0.1 +0.1 0.68 -0.1 Absolute Maximum Ratings Ta = 25 Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Tj=125 Pulsed Drain Current Power Dissipation Thermal Resistance.Junction- to-Ambient Junction Temperature Storage Temperature Range Symbol VDS VGS ID IDM PD RthJA TJ Tstg Rating 20 ±10 5.0 15 1.25 100 150 -55 to 150 Unit V A W /W www.kexin.com.
