2KK5006DS - N-Channel Enhancement MOSFET

Features

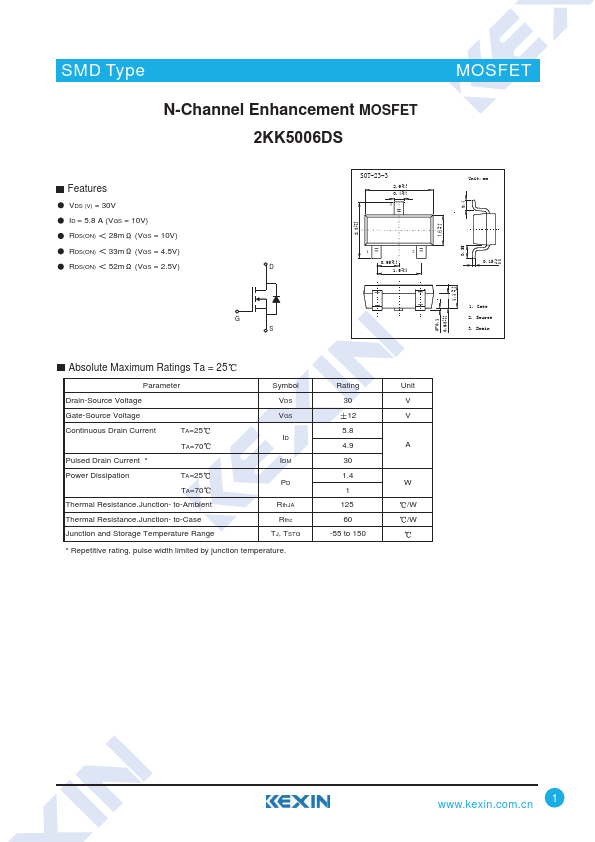

  • VDS (V) = 30V ID = 5.8 A (VGS = 10V) RDS(ON) 28m (VGS = 10V) RDS(ON) 33m (VGS = 4.5V) RDS(ON) 52m (VGS = 2.5V) D    627       3 1 2       G S Absolute Maximum Ratings Ta = 25 Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current TA=25 TA=70 Pulsed Drain Current.
  • Power Dissipation TA=25 TA=70 Thermal Resistance. Junction- to-Ambient Thermal Resistance. Junction- to-Case Junction and.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2KK904 N-Channel Silicon Power MOS FET Fuji Semiconductors

Other Datasheets by Kexin Semiconductor

Part Number Description
2KK5001DS N-Channel Enhancement MOSFET
2KK5002 N-Channel Enhancement MOSFET
2KK5003 N-Channel Enhancement MOSFET
2KK5004 N-Channel Enhancement MOSFET
2KK5005 N-Channel Enhancement MOSFET

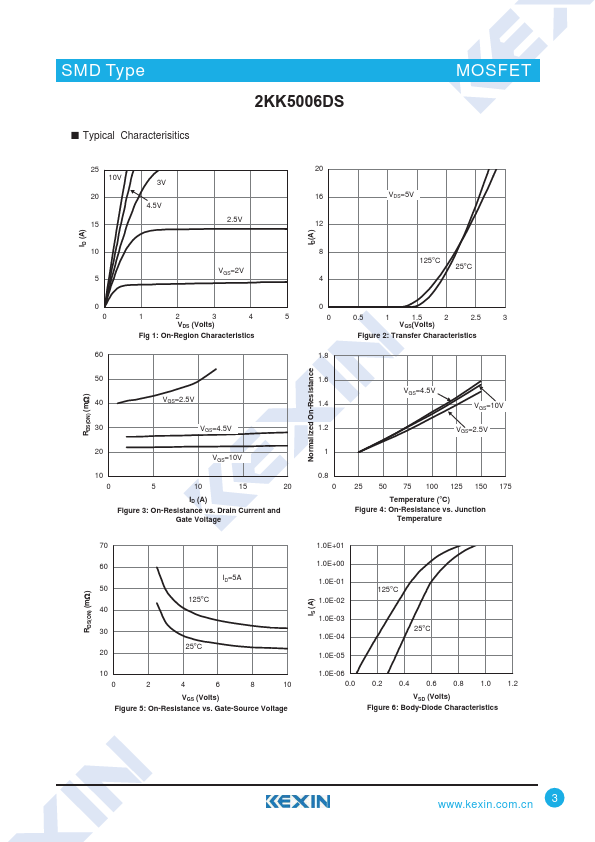

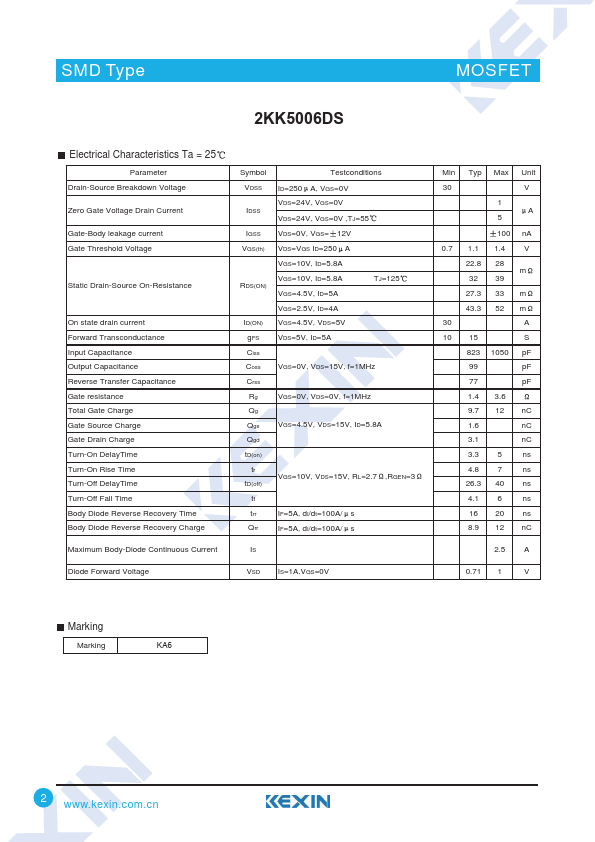

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text
SMD Type N-Channel Enhancement MOSFET ..'6 Features VDS (V) = 30V ID = 5.8 A (VGS = 10V) RDS(ON) 28m (VGS = 10V) RDS(ON) 33m (VGS = 4.5V) RDS(ON) 52m (VGS = 2.5V) D    627       3 1 2       G S Absolute Maximum Ratings Ta = 25 Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current TA=25 TA=70 Pulsed Drain Current * Power Dissipation TA=25 TA=70 Thermal Resistance.Junction- to-Ambient Thermal Resistance.Junction- to-Case Junction and Storage Temperature Range Symbol VDS VGS ID IDM PD RthJA Rthc TJ, TSTG * Repetitive rating, pulse width limited by junction temperature. Rating 30 12 5.8 4.9 30 1.4 1 125 60 -55 to 150 Unit V V A W /W /W      1.
