Datasheet Details
| Part number | RT1P436S |
|---|---|
| Manufacturer | Isahaya Electronics Corporation |
| File Size | 462.92 KB |
| Description | Silicon PNP Epitaxial Type Transistor |
| Download | RT1P436S Download (PDF) |
|
|
Download the RT1P436S datasheet PDF. This datasheet also includes the RT1P436C variant, as both parts are published together in a single manufacturer document.
| Part number | RT1P436S |
|---|---|
| Manufacturer | Isahaya Electronics Corporation |
| File Size | 462.92 KB |
| Description | Silicon PNP Epitaxial Type Transistor |
| Download | RT1P436S Download (PDF) |
|
|
|

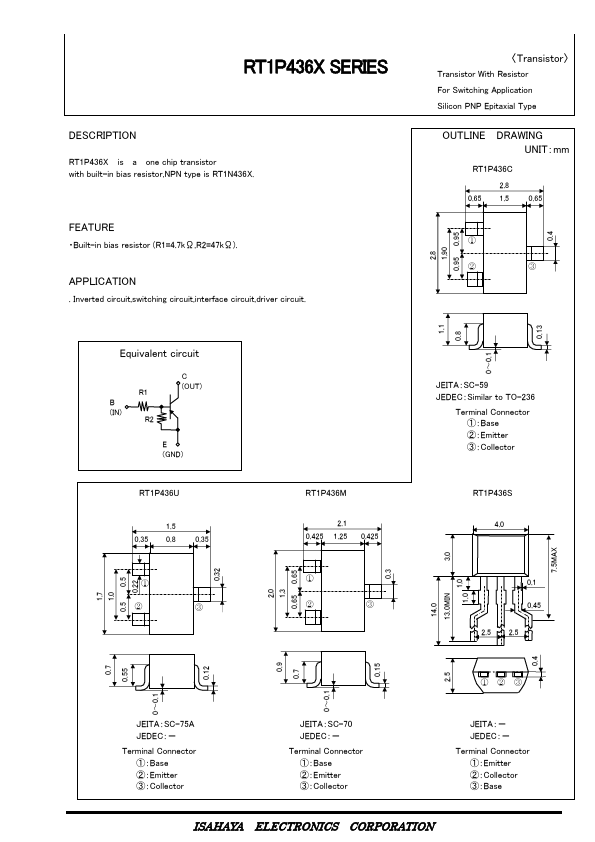

RT1P436X is a one chip transistor with built-in bias resistor,NPN type is RT1N436X.
RT1P436X SERIES.
| Part Number | Description |
|---|---|
| RT1P436C | Silicon PNP Epitaxial Type Transistor |
| RT1P436M | Silicon PNP Epitaxial Type Transistor |
| RT1P436U | Silicon PNP Epitaxial Type Transistor |
| RT1P430C | Silicon PNP Epitaxial Type Transistor |
| RT1P430M | Silicon PNP Epitaxial Type Transistor |
| RT1P430S | Silicon PNP Epitaxial Type Transistor |
| RT1P430U | Silicon PNP Epitaxial Type Transistor |
| RT1P431C | Silicon PNP Epitaxial Type Transistor |
| RT1P431M | Silicon PNP Epitaxial Type Transistor |
| RT1P431S | Silicon PNP Epitaxial Type Transistor |
