Datasheet Details
| Part number | RT1P430S |
|---|---|
| Manufacturer | Isahaya Electronics Corporation |
| File Size | 478.47 KB |
| Description | Silicon PNP Epitaxial Type Transistor |
| Download | RT1P430S Download (PDF) |
|
|
Download the RT1P430S datasheet PDF. This datasheet also includes the RT1P430C variant, as both parts are published together in a single manufacturer document.
| Part number | RT1P430S |
|---|---|
| Manufacturer | Isahaya Electronics Corporation |
| File Size | 478.47 KB |
| Description | Silicon PNP Epitaxial Type Transistor |
| Download | RT1P430S Download (PDF) |
|
|
|

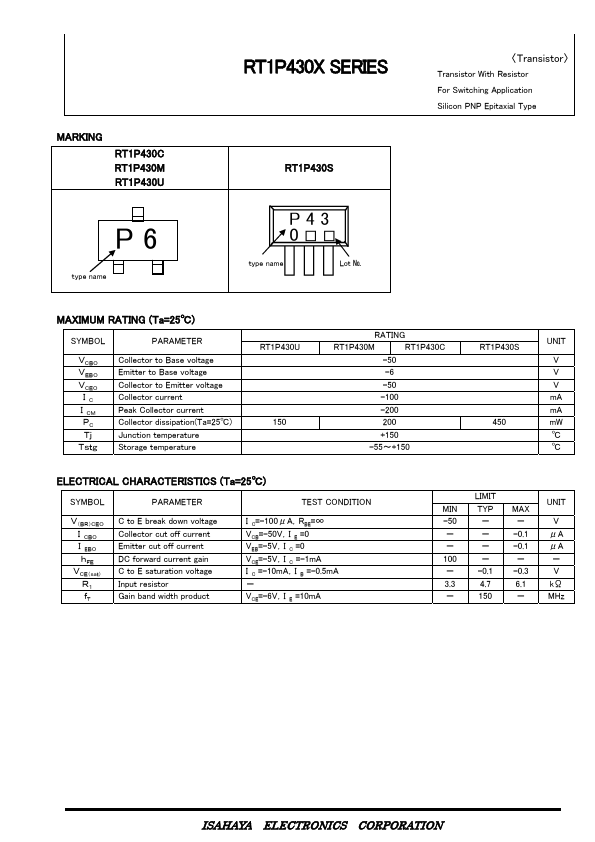

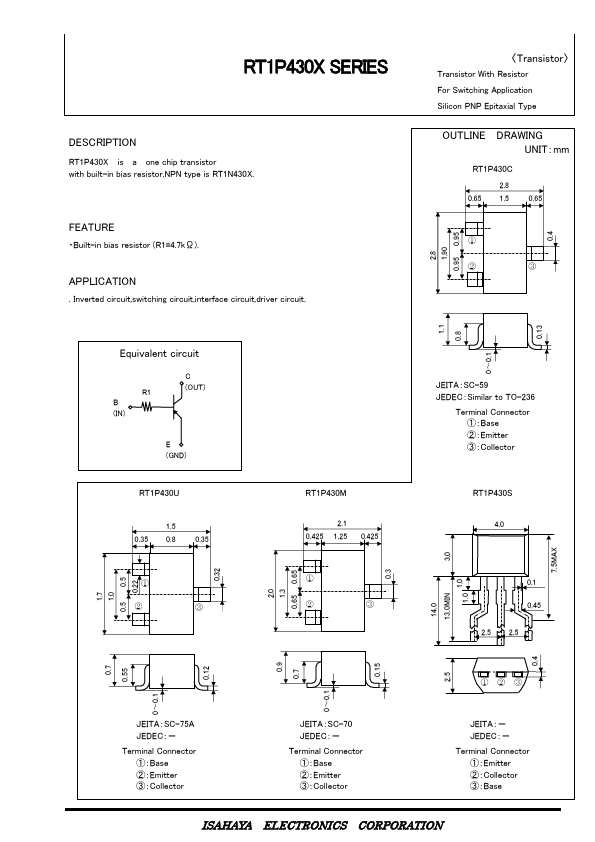

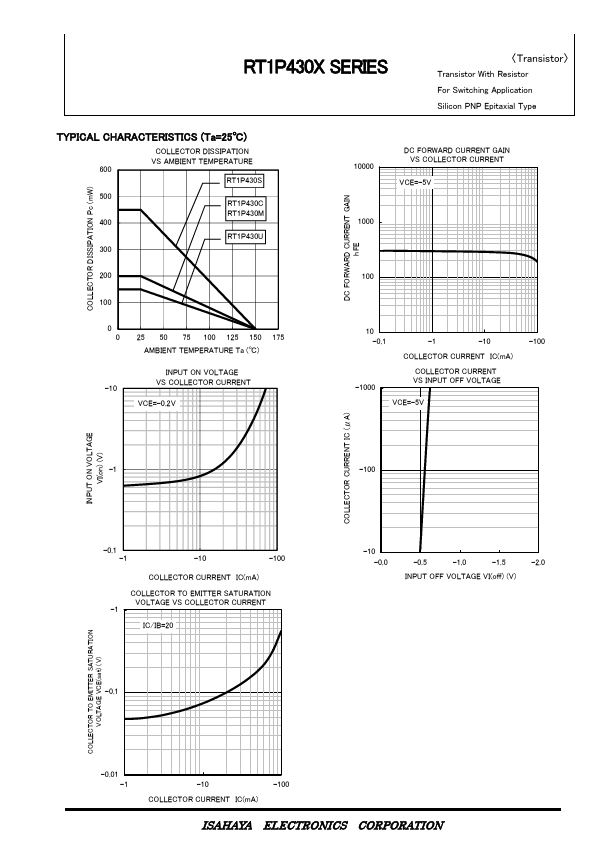

RT1P430X is a one chip transistor with built-in bias resistor,NPN type is RT1N430X.
RT1P430X SERIES.
| Part Number | Description |
|---|---|
| RT1P430C | Silicon PNP Epitaxial Type Transistor |
| RT1P430M | Silicon PNP Epitaxial Type Transistor |
| RT1P430U | Silicon PNP Epitaxial Type Transistor |
| RT1P431C | Silicon PNP Epitaxial Type Transistor |
| RT1P431M | Silicon PNP Epitaxial Type Transistor |
| RT1P431S | Silicon PNP Epitaxial Type Transistor |
| RT1P431U | Silicon PNP Epitaxial Type Transistor |
| RT1P432C | Silicon PNP Epitaxial Type Transistor |
| RT1P432M | Silicon PNP Epitaxial Type Transistor |
| RT1P432S | Silicon PNP Epitaxial Type Transistor |
