2N7002 - Small Signal Transistor

Features

  • N-channel.
  • Enhancement mode.
  • Logic level.
  • Avalanche rated.
  • fast switching.
  • Pb-free lead-plating; RoHS compliant.

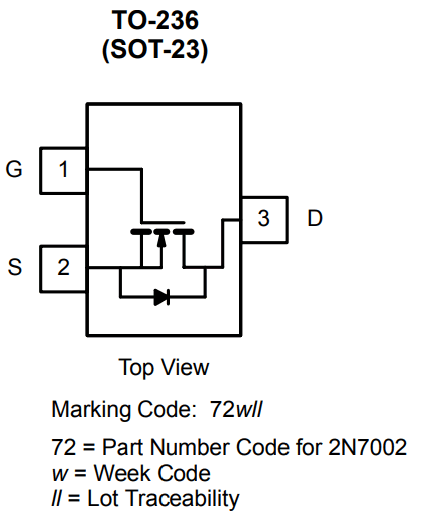

  • Halogen-free according to IEC61249-2-21 2N7002 Product Summary VDS RDS(on),max ID VGS=10 V VGS=4.5 V 60 V 3Ω 4 0.3 A PG-SOT23 3 1 2 Type 2N7002 Package Tape and Reel Information PG-SOT-23 H6327: 3000 pcs/reel Marking 72s HalogenFree Packing Yes Non Dry Parameter Symbol Conditions Continuous drain current I.

📥 Download Datasheet

Datasheet Details

Part number 2N7002
Manufacturer Infineon
File Size 250.70 KB
Description Small Signal Transistor
Datasheet download datasheet 2N7002 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2N7002 N-Channel 60V MOSFET Vishay
2N7002 N-channel FET Fairchild Semiconductor
2N7002 N-Channel Power Mosfet GME
2N7002 300mA N-channel MOSFET nexperia
2N7002 N-Channel MOSFET MCC

Other Datasheets by Infineon

Part Number Description

Full PDF Text Transcription

Click to expand full text
OptiMOS™ Small-Signal-Transistor Features • N-channel • Enhancement mode • Logic level • Avalanche rated • fast switching • Pb-free lead-plating; RoHS compliant • Halogen-free according to IEC61249-2-21 2N7002 Product Summary VDS RDS(on),max ID VGS=10 V VGS=4.5 V 60 V 3Ω 4 0.3 A PG-SOT23 3 1 2 Type 2N7002 Package Tape and Reel Information PG-SOT-23 H6327: 3000 pcs/reel Marking 72s HalogenFree Packing Yes Non Dry Parameter Symbol Conditions Continuous drain current I D T A=25 °C T A=70 °C Pulsed drain current I D,pulse T A=25 °C Avalanche energy, single pulse Reverse diode dv /dt Gate source voltage E AS dv /dt V GS I D=0.3 A, R GS=25 Ω I D=0.
