BD679 - NPN Transistor

Description

Collector Emitter Breakdown Voltage : V(BR)CEO = 80V DC Current Gain : hFE = 750(Min) @ IC= 1.5 A Complement to Type BD680 Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for use as output dev

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BD679 Complementary power Darlington transistors STMicroelectronics
BD679 NPN Transistor Motorola Inc
BD679 NPN Silicon Transistor ON Semiconductor
BD679 Power Transistor Comset Semiconductors
BD679 NPN TRANSISTORS TRANSYS

Other Datasheets by Inchange Semiconductor

Part Number Description
BD679A NPN Transistor
BD675 NPN Transistor
BD675A NPN Transistor
BD676 PNP Transistor
BD676A PNP Transistor

Full PDF Text Transcription

Click to expand full text

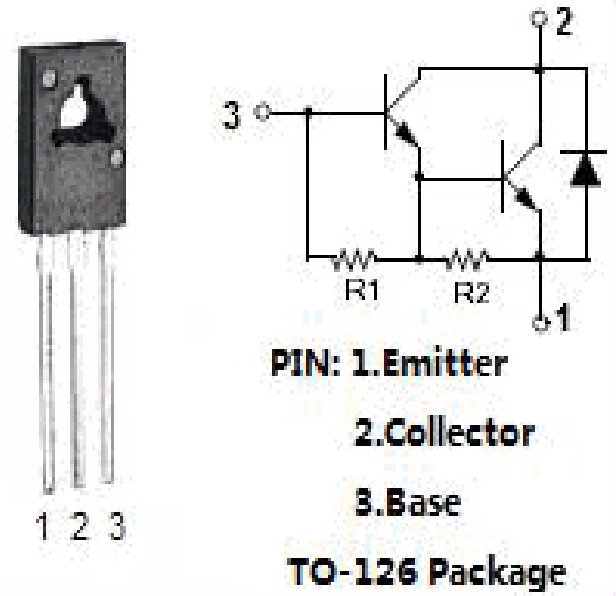

isc Silicon NPN Darlington Power Transistor DESCRIPTION ·Collector–Emitter Breakdown Voltage— : V(BR)CEO = 80V ·DC Current Gain— : hFE = 750(Min) @ IC= 1.5 A ·Complement to Type BD680 ·Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS ·Designed for use as output devices in complementary general-purpose amplifier applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 80 V VCEO Collector-Emitter Voltage 80 V VEBO Emitter-Base Voltage 5 V IC Collector Current-Continuous 4 A IB Base Current PC Collector Power Dissipation TC=25℃ Ti Junction Temperature Tstg Storage Temperature Range 0.
