V5011S1021 - INTERNAL THREADED END-CONNECTION LINEAR VALVE PN16

Download the V5011S1021 datasheet PDF. This datasheet also covers the V5011S variant, as both devices belong to the same internal threaded end-connection linear valve pn16 family and are provided as variant models within a single manufacturer datasheet.

Features

  • Brass body with internal threaded end connections Low seat leakage rate Self-adjusting packing Accurate positioning to ensure state-of-the-art temperature control Directly-coupled electric and pneumatic actuators for easy mounting.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (V5011S-Honeywell.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number V5011S1021
Manufacturer Honeywell
File Size 153.34 KB
Description INTERNAL THREADED END-CONNECTION LINEAR VALVE PN16
Datasheet download datasheet V5011S1021 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
V50100P Dual High-Voltage Trench MOS Barrier Schottky Rectifier Vishay Siliconix
V50-850-C1 VCSEL VIS
V50-850-C12 VCSEL VIS
V50-850-C4 VCSEL VIS
V500DJ6-QE1 TFT LCD Module INNOLUX

Other Datasheets by Honeywell

Part Number Description
V5011S1005 INTERNAL THREADED END-CONNECTION LINEAR VALVE PN16
V5011S1013 INTERNAL THREADED END-CONNECTION LINEAR VALVE PN16
V5011S1039 INTERNAL THREADED END-CONNECTION LINEAR VALVE PN16
V5011S1047 INTERNAL THREADED END-CONNECTION LINEAR VALVE PN16
V5011S1054 INTERNAL THREADED END-CONNECTION LINEAR VALVE PN16

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

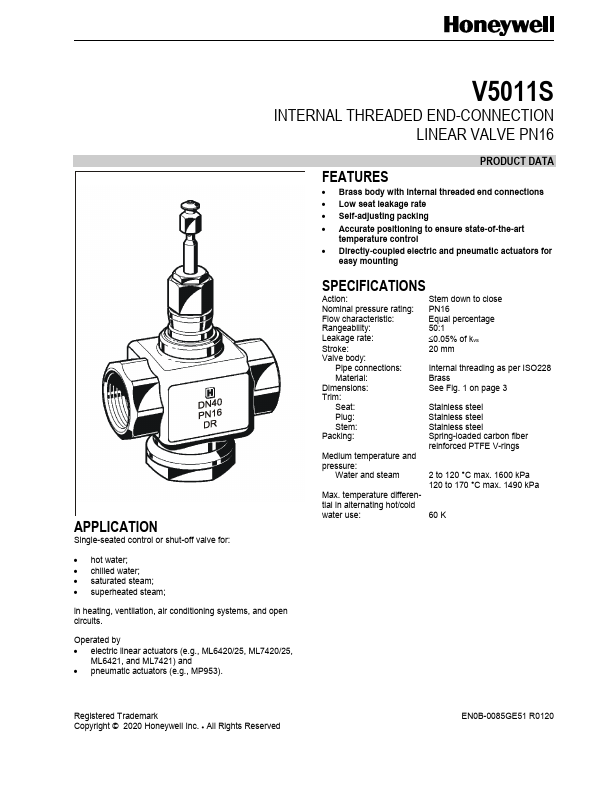

INTERNAL THREADED END-CONNECTION LINEAR VALVE PN16 PRODUCT DATA V5011S FEATURES      Brass body with internal threaded end connections Low seat leakage rate Self-adjusting packing Accurate positioning to ensure state-of-the-art temperature control Directly-coupled electric and pneumatic actuators for easy mounting SPECIFICATIONS Action: Nominal pressure rating: Flow characteristic: Rangeability: Leakage rate: Stroke: Valve body: Pipe connections: Material: Dimensions: Trim: Seat: Plug: Stem: Packing: Medium temperature and pressure: Water and steam Stem down to close PN16 Equal percentage 50:1 0.05% of kvs 20 mm Internal threading as per ISO228 Brass See Fig. 1 on page 3 DN15: stainless steel DN20...
