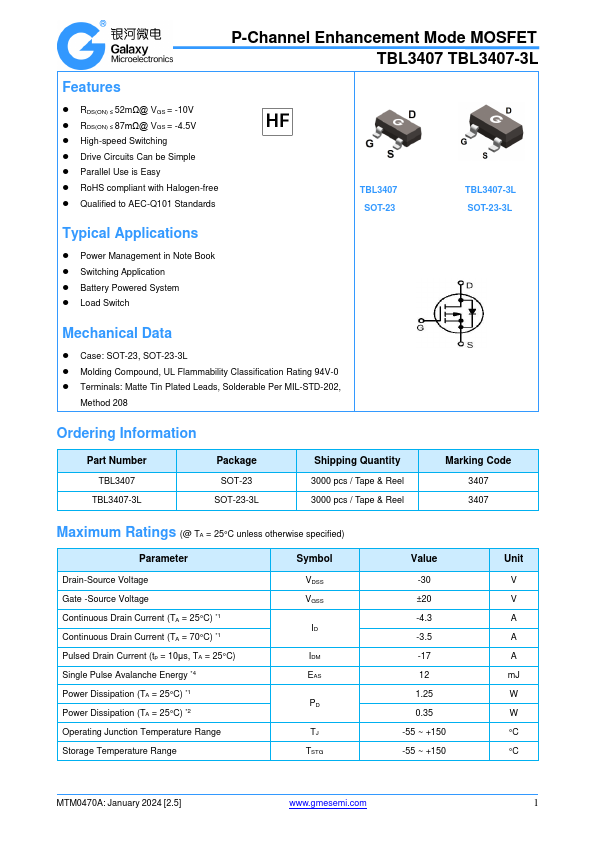

TBL3407-3L - P-Channel Enhancement Mode MOSFET

Download the TBL3407-3L datasheet PDF. This datasheet also covers the TBL3407 variant, as both devices belong to the same p-channel enhancement mode mosfet family and are provided as variant models within a single manufacturer datasheet.

Features

  • RDS(ON) ≤ 52mΩ@ VGS = -10V.
  • RDS(ON) ≤ 87mΩ@ VGS = -4.5V.
  • High-speed Switching.
  • Drive Circuits Can be Simple.
  • Parallel Use is Easy.
  • RoHS compliant with Halogen-free.
  • Qualified to AEC-Q101 Standards TBL3407 SOT-23 TBL3407-3L SOT-23-3L Typical.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (TBL3407-GME.pdf) that lists specifications for multiple related part numbers.
