MMST5401 - PNP General Purpose Transistor

Galaxy Microelectronics

Key Features

Epitaxial planar die construction.
Complementary NPN type available (MMST5551).
Also available in lead free version. Pb Lead-free MMST5401.

MMST5401 pnp general purpose transistor by Galaxy Microelectronics - Datasheet Preview

Datasheet Details

Part number	MMST5401
Manufacturer	Galaxy Microelectronics
File Size	244.09 KB
Description	PNP General Purpose Transistor
Datasheet	MMST5401 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
MMST5401	160V PNP SMALL SIGNAL TRANSISTOR	Diodes Incorporated
MMST5401	PNP Transistors	Kexin
MMST5401	BIPOLAR TRANSISTORS	Rectron
MMST5401	PNP Small Signal Transistors	MCC
MMST5401	PNP General Purpose Transistor	Multicomp

Other Datasheets by Galaxy Microelectronics

Part Number	Description
MMST5551	NPN General Purpose Transistor
MMST2222A	Silicon Epitaxial Planar Transistor
MMST2907A	PNP Silicon Epitaxial Planar Transistor
MMST3904	NPN Silicon Epitaxial Planar Transistor
MMST3906	PNP Silicon Epitaxial Planar Transistor
MMST4401	NPN Silicon Epitaxial Planar Transistor
MMST4403	PNP Silicon Epitaxial Planar Transistor
MMSTA42	NPN Silicon Epitaxial Planar Transistor
MMSTA55	PNP Silicon Epitaxial Planar Transistor
MMSTA56	PNP Silicon Epitaxial Planar Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

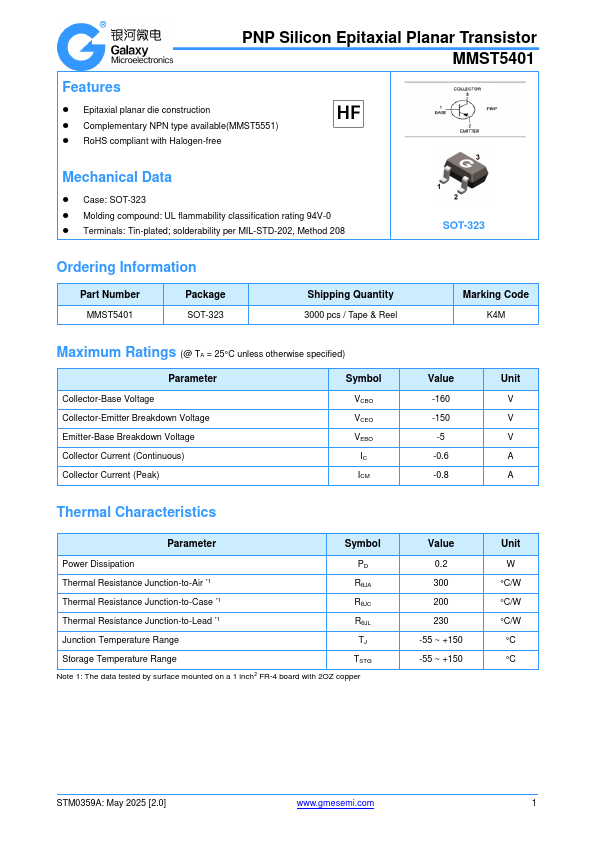

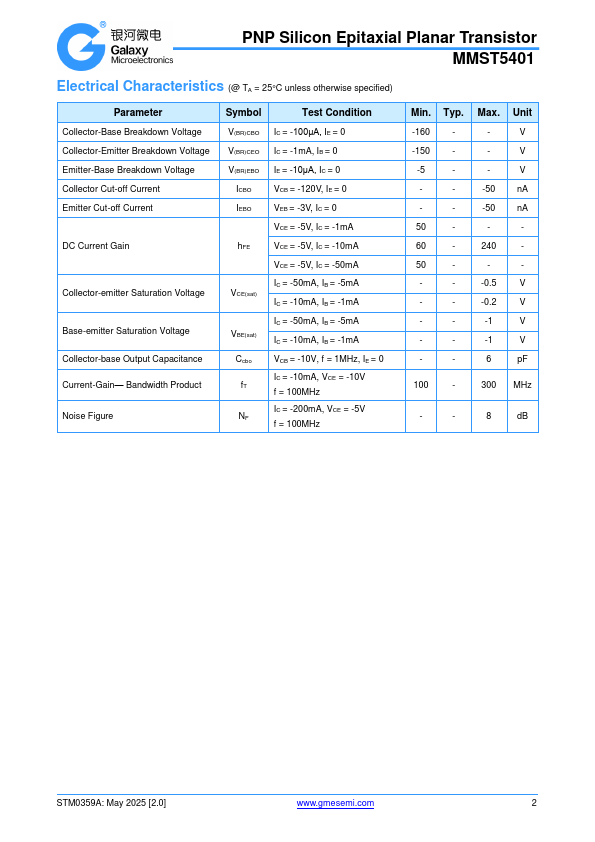

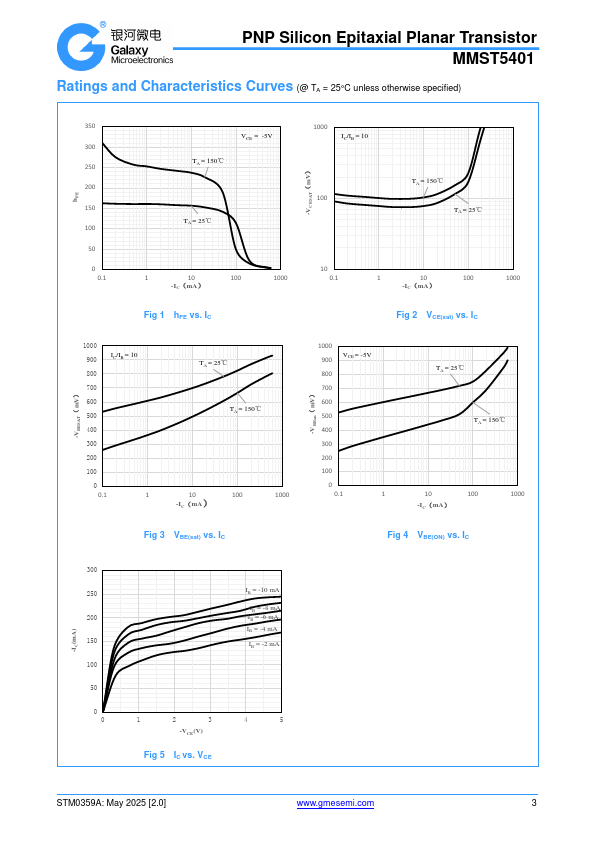

Production specification PNP General Purpose Transistor FEATURES  Epitaxial planar die construction.  Complementary NPN type available (MMST5551).  Also available in lead free version. Pb Lead-free MMST5401 APPLICATIONS  Ideal for medium power amplification and switching. ORDERING INFORMATION Type No. Marking MMST5401 K4M SOT-323 Package Code SOT-323 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Symbol Parameter Value VCBO VCEO collector-base voltage collector-emitter voltage -160 -150 VEBO emitter-base voltage -5 IC collector current (DC) -0.6 PC RθJA Tj ,Tstg Collector dissipation Thermal resistance junction to ambient junction and storage temperature 0.2 625 -55 to +150 UNIT V V V A W °C/W °C F055 Rev.A www.gmesemi.
