BZD27C8V2P - Transient Voltage Suppressor

Product Overview

GME

📥 Download Datasheet

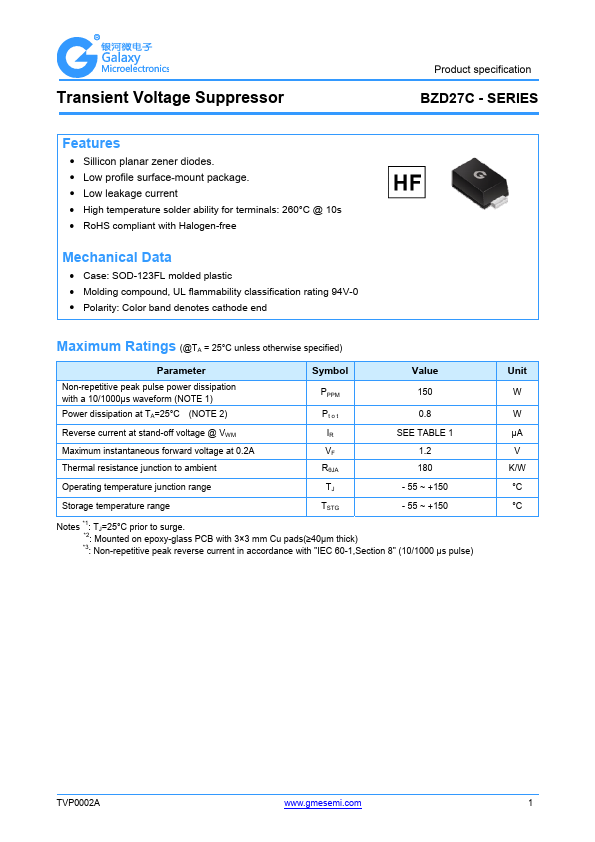

BZD27C8V2P Transient Voltage Suppressor by GME - Datasheet Preview — Datasheet preview – BZD27C8V2P

Datasheet Details

Part number	BZD27C8V2P
Manufacturer	GME
File Size	265.30 KB
Description	Transient Voltage Suppressor
Datasheet	BZD27C8V2P Datasheet
Note	This datasheet PDF includes multiple part numbers: BZD27C8V2P, BZD27C5V6P. Please refer to the document for exact specifications by model.
Additional preview pages of the BZD27C8V2P datasheet.

Product details

Features

Sillicon planar zener diodes.
Low profile surface-mount package.
Low leakage current.
High temperature solder ability for terminals: 260°C @ 10s.
RoHS compliant with Halogen-free Mechanical Data.
Case: SOD-123FL molded plastic.
Molding compound, UL flammability classification rating 94V-0.
Polarity: Color band denotes cathode end Maximum Ratings (@TA = 25°C unless otherwise specified) Parameter Symbol Value Non-repetitive peak pulse power dissipati.
