BL14N25 - N-Channel Enhancement Mode MOSFET

Features

  • Fast switching.
  • Low on resistance.
  • Low gate charge.
  • Low reverse transfer capacitances.
  • RoHS compliant with Halogen-free Mechanical Data.
  • Case: TO-220AB, TO-263, ITO-220AB.
  • Molding Compound: UL Flammability Classification Rating 94V-0.
  • Terminals: Matte tin-plated leads; solderability-per MIL-STD-202, Method 208 TO-220AB TO-263 ITO-220AB Ordering Information Part Number BL14N25 BL14N25B BL14N25F Package TO-220AB TO-263 ITO-220AB Shipping Quantity 50.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BL1002A Display Bolymin
BL1005-05A5425B Multilayer Chip Baluns Advanced Ceramic X
BL1005-05A5425T Multilayer Chip Baluns Advanced Ceramic X
BL1005-05E2450B Multilayer Chip Baluns Advanced Ceramic X
BL1005-05E2450T Multilayer Chip Baluns Advanced Ceramic X

Other Datasheets by Galaxy Microelectronics

Part Number Description
BL14N25B N-Channel Enhancement Mode MOSFET
BL14N25F N-Channel Enhancement Mode MOSFET
BL1010 Phototransistor Photocoupler
BL1010H Phototransistor Photocoupler
BL1012 Phototransistor Photocoupler

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

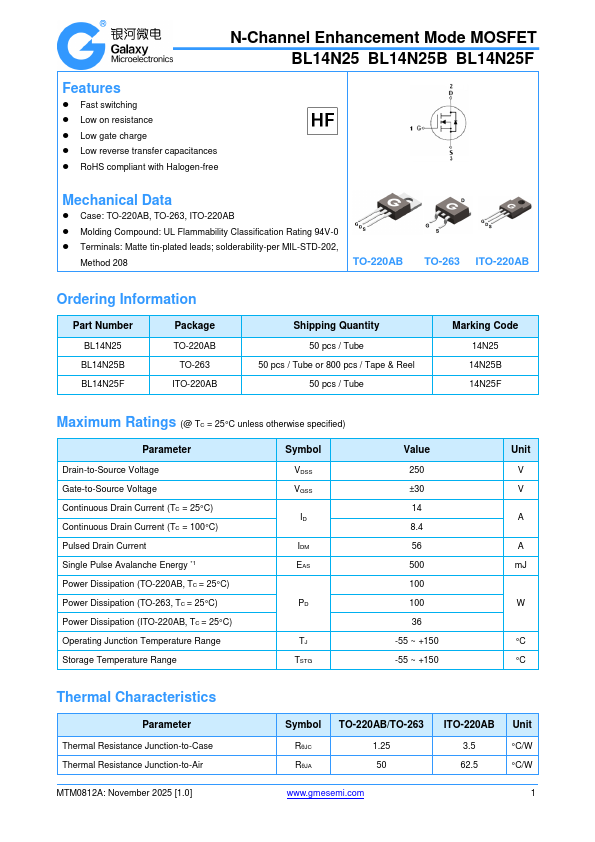

N-Channel Enhancement Mode MOSFET BL14N25 BL14N25B BL14N25F Features  Fast switching  Low on resistance  Low gate charge  Low reverse transfer capacitances  RoHS compliant with Halogen-free Mechanical Data  Case: TO-220AB, TO-263, ITO-220AB  Molding Compound: UL Flammability Classification Rating 94V-0  Terminals: Matte tin-plated leads; solderability-per MIL-STD-202, Method 208 TO-220AB TO-263 ITO-220AB Ordering Information Part Number BL14N25 BL14N25B BL14N25F Package TO-220AB TO-263 ITO-220AB Shipping Quantity 50 pcs / Tube 50 pcs / Tube or 800 pcs / Tape & Reel 50 pcs / Tube Marking Code 14N25 14N25B 14N25F Maximum Ratings (@ TC = 25°C unless otherwise specified) Parameter Drain-to-Source Voltage Gate-to-Source Voltage Continuous Drain Current (TC = 25°C) Continuous D
