BL1010 - Phototransistor Photocoupler

Features

  • Current Transfer Ratio (CTR: 50~600% at IF = 5mA, VCE = 5V) (CTR: 63~320% at IF = 10mA, VCE = 5V).
  • High Isolation Voltage Between Input and Output (Viso =5000V rms ).
  • Wide operating temperature range: BL101X Series (Top=-55°C to 110°C) BL101XH Series (Top=-55°C to 125°C).

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BL1002A Display Bolymin
BL1005-05A5425B Multilayer Chip Baluns Advanced Ceramic X
BL1005-05A5425T Multilayer Chip Baluns Advanced Ceramic X
BL1005-05E2450B Multilayer Chip Baluns Advanced Ceramic X
BL1005-05E2450T Multilayer Chip Baluns Advanced Ceramic X

Other Datasheets by Galaxy Microelectronics

Part Number Description
BL1010H Phototransistor Photocoupler
BL1012 Phototransistor Photocoupler
BL1012 Phototransistor Photocoupler
BL1012H Phototransistor Photocoupler
BL1012H Phototransistor Photocoupler

Full PDF Text Transcription

Click to expand full text

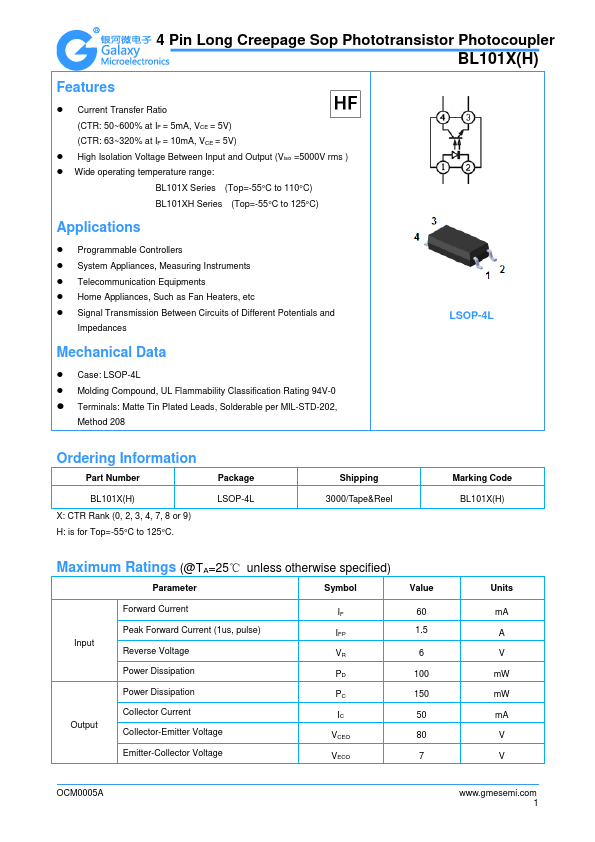

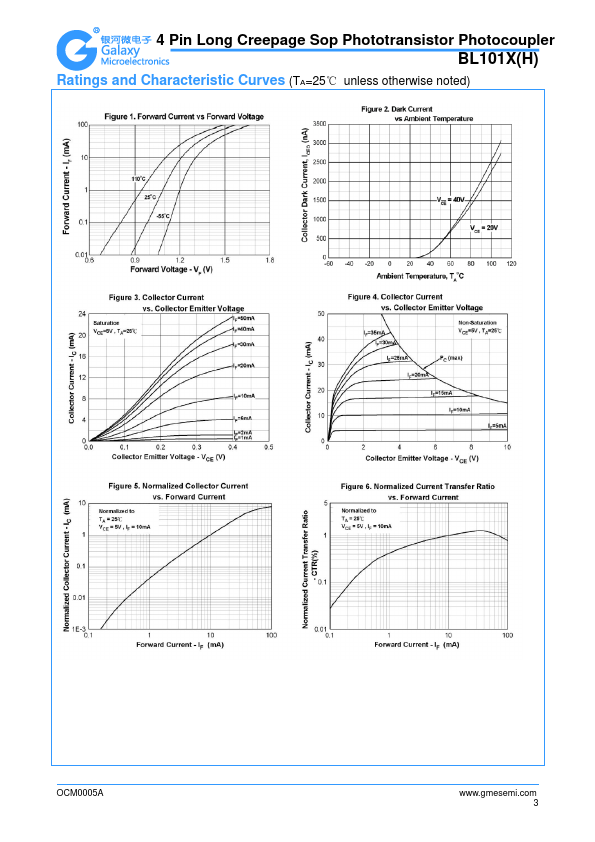

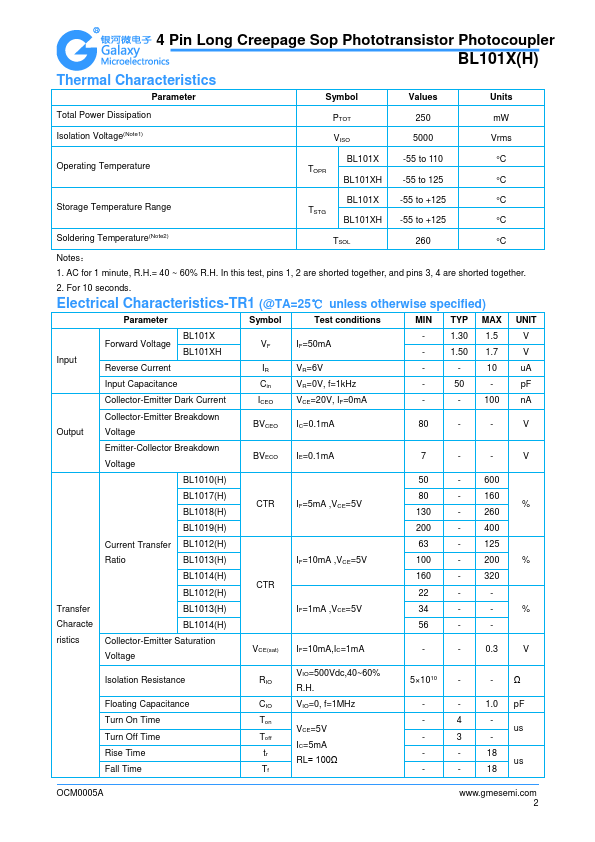

4 Pin Long Creepage Sop Phototransistor Photocoupler BL101X(H) Features  Current Transfer Ratio (CTR: 50~600% at IF = 5mA, VCE = 5V) (CTR: 63~320% at IF = 10mA, VCE = 5V)  High Isolation Voltage Between Input and Output (Viso =5000V rms )  Wide operating temperature range: BL101X Series (Top=-55°C to 110°C) BL101XH Series (Top=-55°C to 125°C) Applications  Programmable Controllers  System Appliances, Measuring Instruments  Telecommunication Equipments  Home Appliances, Such as Fan Heaters, etc  Signal Transmission Between Circuits of Different Potentials and Impedances Mechanical Data  Case: LSOP-4L  Molding Compound, UL Flammability Classification Rating 94V-0  Terminals: Matte Tin Plated Leads, Solderable per MIL-STD-202, Method 208 LSOP-4L Ordering Information Part Number
