BL1013 Key Features
- Current Transfer Ratio (CTR: 50~600% at IF = 5mA, VCE = 5V) (CTR: 63~320% at IF = 10mA, VCE = 5V)
- High Isolation Voltage Between Input and Output (Viso =5000V rms )
- Wide operating temperature range
- Part: BL1013
- Manufacturer: Galaxy Microelectronics
- Size: 1.02 MB
Related Galaxy Microelectronics Datasheets
| Part Number | Description |
|---|---|
| BL1013 | Phototransistor Photocoupler |
| BL1013H | Phototransistor Photocoupler |
| BL1013H | Phototransistor Photocoupler |
| BL1010 | Phototransistor Photocoupler |
| BL1010H | Phototransistor Photocoupler |
BL1013 Description

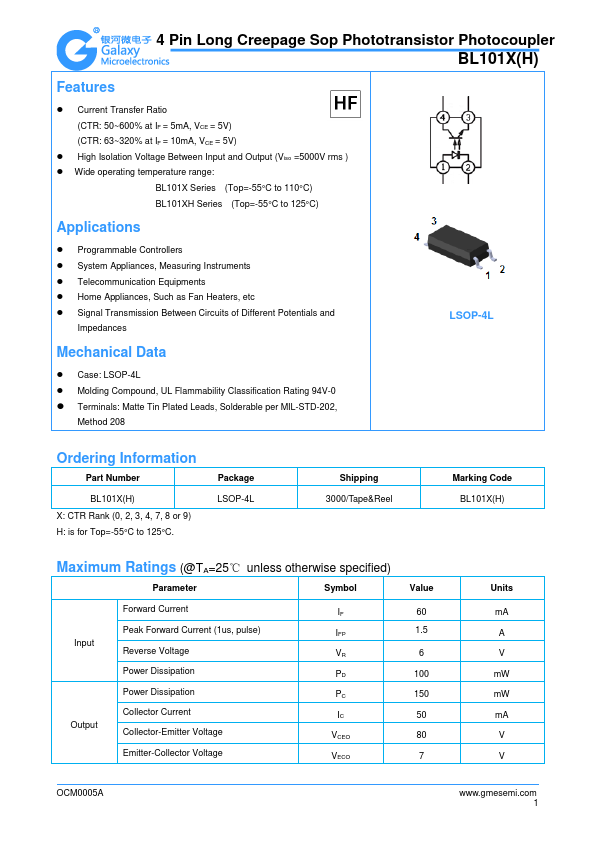

4 Pin Long Creepage Sop Phototransistor Photocoupler BL101X(H).
