2SB806 - PNP Silicon Epitaxial Planar Transistor

Key Features

  • High collector to emitter voltage.
  • RoHS compliant with Halogen-free PNP Silicon Epitaxial Planar Transistor 2SB806 Mechanical Data.
  • Case: SOT-89.
  • Molding compound: UL flammability classification rating 94V-0.
  • Terminals: Tin-plated; solderability per MIL-STD-202, Method 208 SOT-89 Ordering Information Part Number 2SB806-R 2SB806-Q 2SB806-P Package SOT-89 SOT-89 SOT-89 Shipping Quantity 1000 pcs / Tape & Reel 1000 pcs / Tape & Reel 1000 pcs / Tape & Reel Marking C.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SB806 PNP SILICON EPITAXIAL TRANSISTOR NEC
2SB806 SILICON PNP EPITAXIAL PLANAR TRANSISTOR AiT Semiconductor
2SB806 PNP Transistors Kexin
2SB800 PNP SILICON EPITAXIAL TRANSISTOR NEC
2SB800 PNP Transistors Kexin

Other Datasheets by Galaxy Microelectronics

Part Number Description
2SB804 PNP Silicon Epitaxial Planar Transistor
2SB834 PNP Epitaxial Silicon Transistor
2SB861 PNP Epitaxial Silicon Transistor
2SB1073 PNP Transistor
2SB1119 PNP Epitaxial Planar Silicon Transistors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

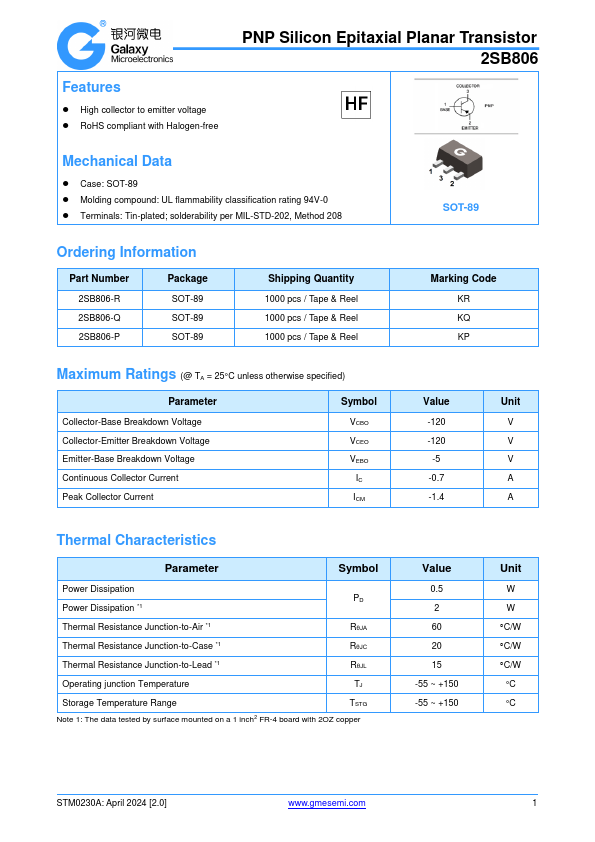

Features  High collector to emitter voltage  RoHS compliant with Halogen-free PNP Silicon Epitaxial Planar Transistor 2SB806 Mechanical Data  Case: SOT-89  Molding compound: UL flammability classification rating 94V-0  Terminals: Tin-plated; solderability per MIL-STD-202, Method 208 SOT-89 Ordering Information Part Number 2SB806-R 2SB806-Q 2SB806-P Package SOT-89 SOT-89 SOT-89 Shipping Quantity 1000 pcs / Tape & Reel 1000 pcs / Tape & Reel 1000 pcs / Tape & Reel Marking Code KR KQ KP Maximum Ratings (@ TA = 25°C unless otherwise specified) Parameter Collector-Base Breakdown Voltage Collector-Emitter Breakdown Voltage Emitter-Base Breakdown Voltage Continuous Collector Current Peak Collector Current Symbol VCBO VCEO VEBO IC ICM Value -120 -120 -5 -0.7 -1.
