2SB804 - PNP Silicon Epitaxial Planar Transistor

Key Features

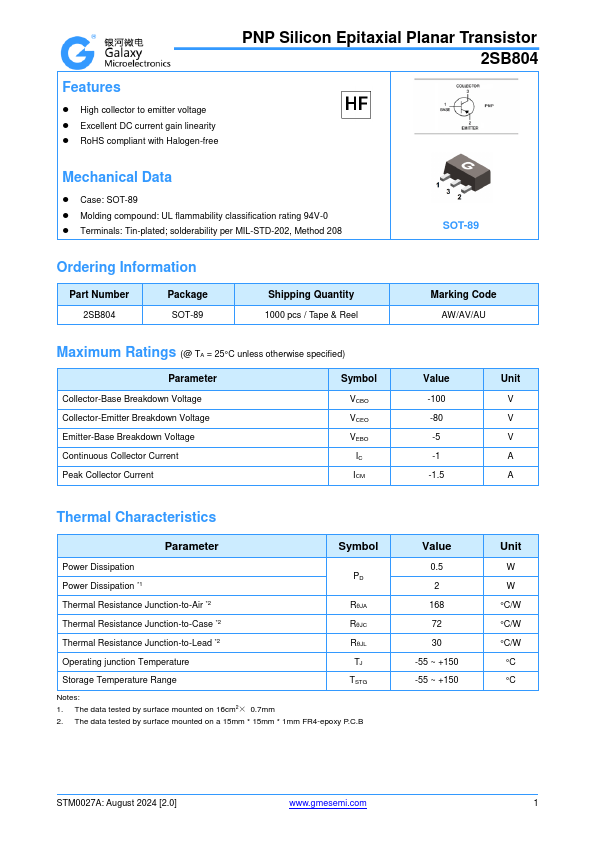

  • High collector to emitter voltage.
  • Excellent DC current gain linearity.
  • RoHS compliant with Halogen-free PNP Silicon Epitaxial Planar Transistor 2SB804 Mechanical Data.
  • Case: SOT-89.
  • Molding compound: UL flammability classification rating 94V-0.

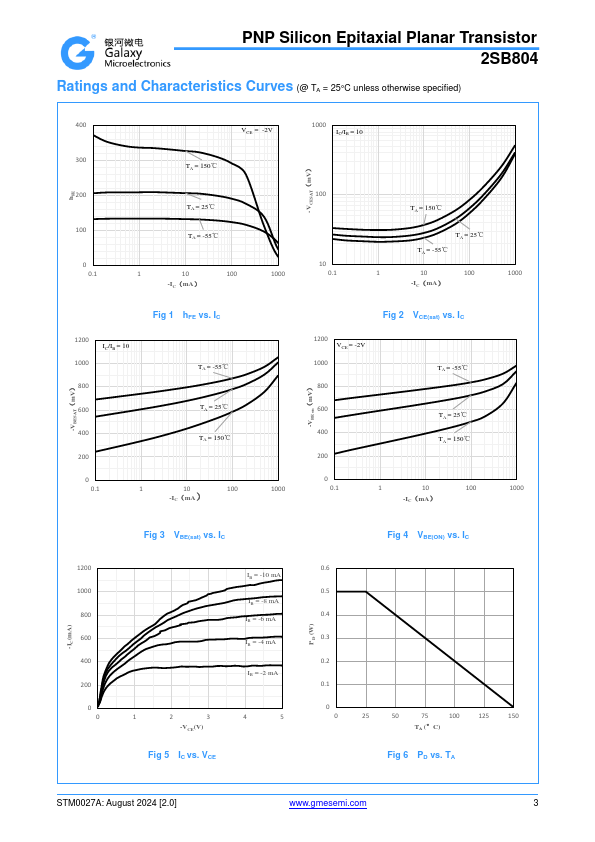

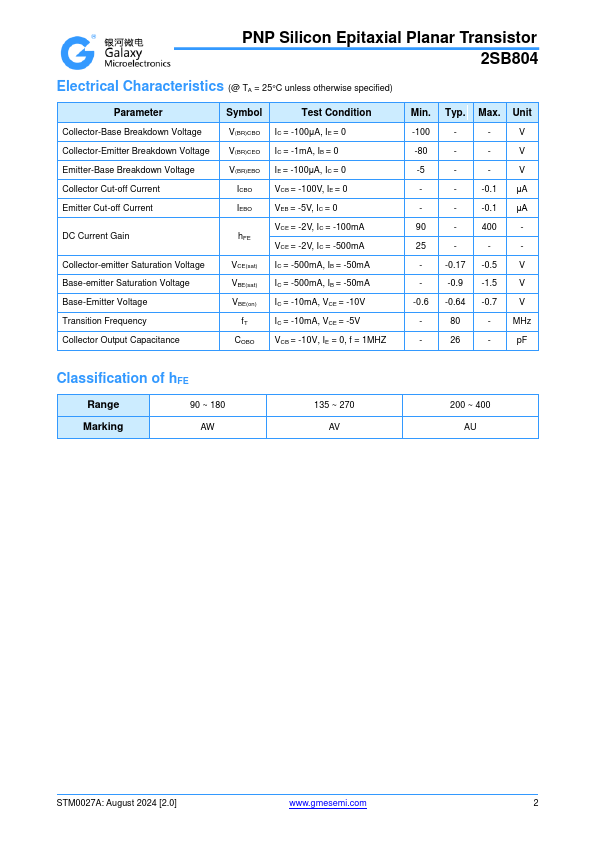

  • Terminals: Tin-plated; solderability per MIL-STD-202, Method 208 SOT-89 Ordering Information Part Number 2SB804 Package SOT-89 Shipping Quantity 1000 pcs / Tape & Reel Marking Code AW/AV/AU Maximum Ratings (@ TA =.
