KA1M0565R - Fairchild Power Switch(FPS)

Description

The Fairchild Power Switch(FPS) product family is specially designed for an off-line SMPS with minimal external components.

The Fairchild Power Switch(FPS) consist of high voltage power SenseFET and current mode PWM controller IC.

Features

  • Precision fixed operating frequency.
  • KA1M0565R (67KHz),KA1H0565R (100KHz).
  • Pulse by pulse over current limiting.
  • Over load protection.
  • Over voltage protection (Min. 23V).
  • Internal thermal shutdown function.
  • Under voltage lockout.
  • Internal high voltage sense FET.
  • Auto restart.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
KA1M0880B Power Switch Fairchild
KA100M317 Three Terminal Positive Voltage Regulator Kexin
KA100O015E-BJTT 2CKE DDP Mobile DDR SDRAM Samsung semiconductor
KA101-01 400 - 2700MHz Medium Power Amplifier KCB
KA101-10 400 - 2700MHz Medium Power Amplifier KCB

Other Datasheets by Fairchild (onsemi)

Part Number Description
KA1M0265R Fairchild Power Switch(FPS)
KA1M0280R SPS
KA1M0280RB Fairchild Power Switch(FPS)
KA1M0365R Fairchild Power Switch(FPS)
KA1M0380RB Fairchild Power Switch(FPS)

Full PDF Text Transcription

Click to expand full text

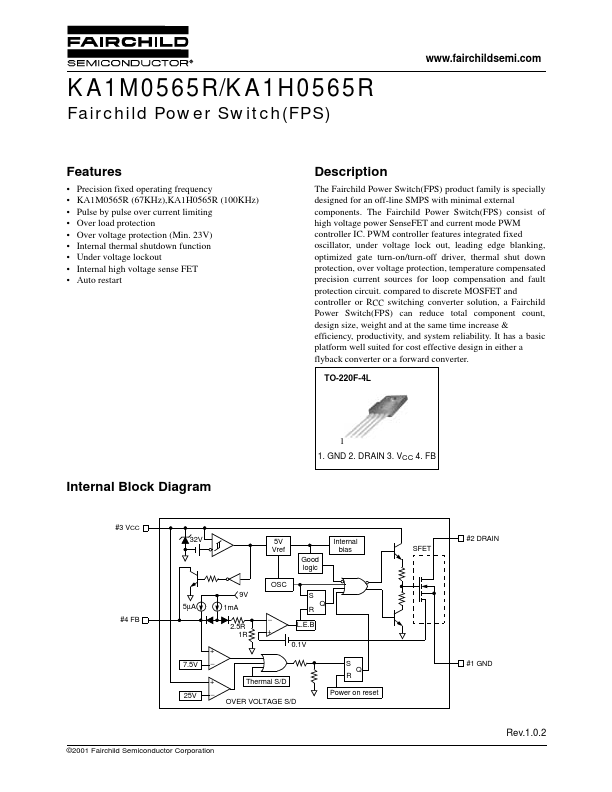

KA1M0565R/KA1H0565R Fairchild Power Switch(FPS) www.fairchildsemi.com Features • Precision fixed operating frequency • KA1M0565R (67KHz),KA1H0565R (100KHz) • Pulse by pulse over current limiting • Over load protection • Over voltage protection (Min. 23V) • Internal thermal shutdown function • Under voltage lockout • Internal high voltage sense FET • Auto restart Description The Fairchild Power Switch(FPS) product family is specially designed for an off-line SMPS with minimal external components. The Fairchild Power Switch(FPS) consist of high voltage power SenseFET and current mode PWM controller IC.
