AO4840 - 60V Dual N-Channel MOSFET

Key Features

  • TrenchFET® power MOSFET.
  • 100 % R g and UIS tested Product Summary VDS ID (at VGS=10V) RDS(ON) (at VGS=10V) RDS(ON) (at VGS=4.5V) 60V 7A < 19mΩ < 23mΩ Dual N-Channel 60 V (D-S) MOSFET D1 D2 G1 G2 S1 S2 N-Channel MOSFET N-Channel MOSFET Top View S2 1 G2 2 S1 3 G1 4 8 D2 7 D2 6 D1 5 D1.

📥 Download Datasheet

Datasheet Details

Part number AO4840
Manufacturer EVVOSEMI
File Size 860.22 KB
Description 60V Dual N-Channel MOSFET
Datasheet download datasheet AO4840 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AO4840 60V Dual N-Channel MOSFET VBsemi
AO4840 40V Dual N-Channel MOSFET Alpha & Omega Semiconductors
AO4840 Dual N-Channel MOSFET Kexin
AO4840 Dual 40V N-ChanneI MOSFET UMW
AO4842 30V Dual N-Channel MOSFET Alpha & Omega Semiconductors

Other Datasheets by EVVOSEMI

Part Number Description
AO4807 Dual P-Channel MOSFET
AO4828 Dual N-Channel MOSFET
AO4832 30V Dual N-Channel MOSFET
AO4884 Dual N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

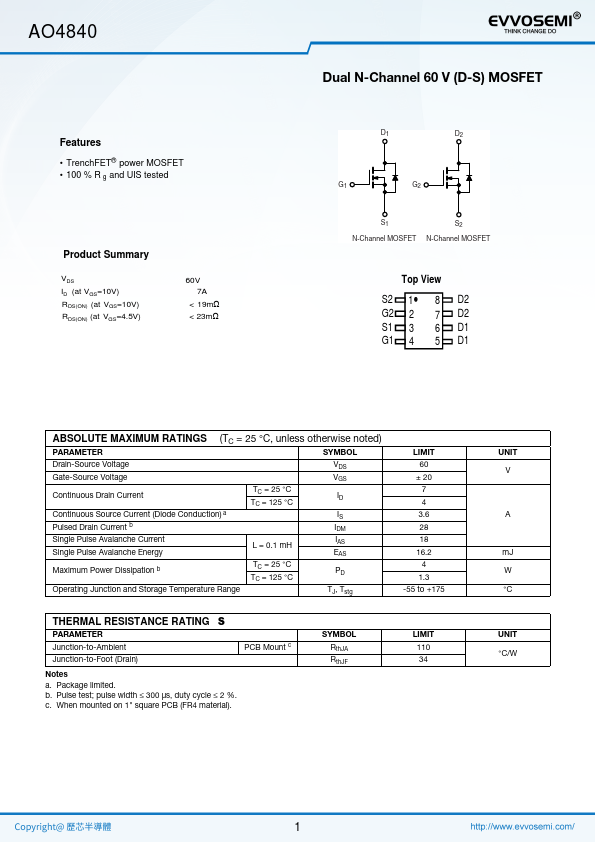

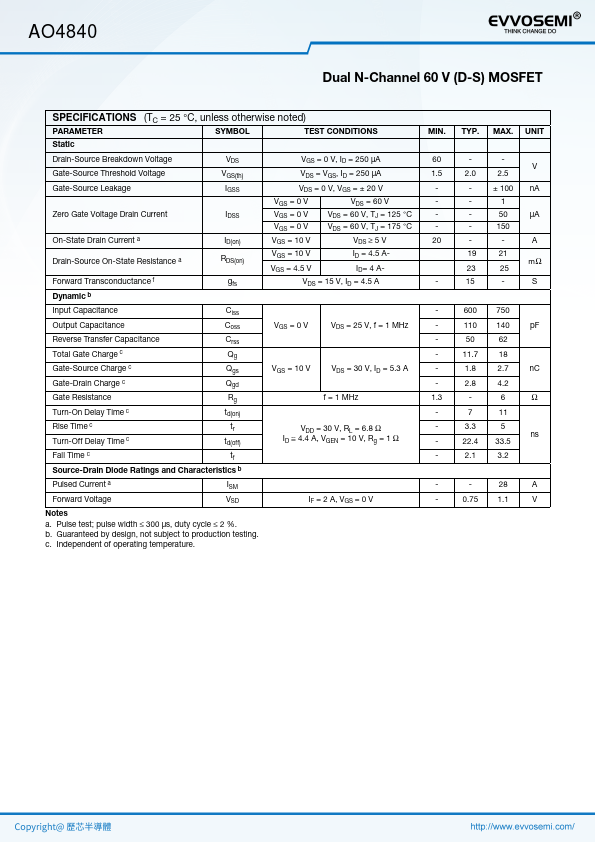

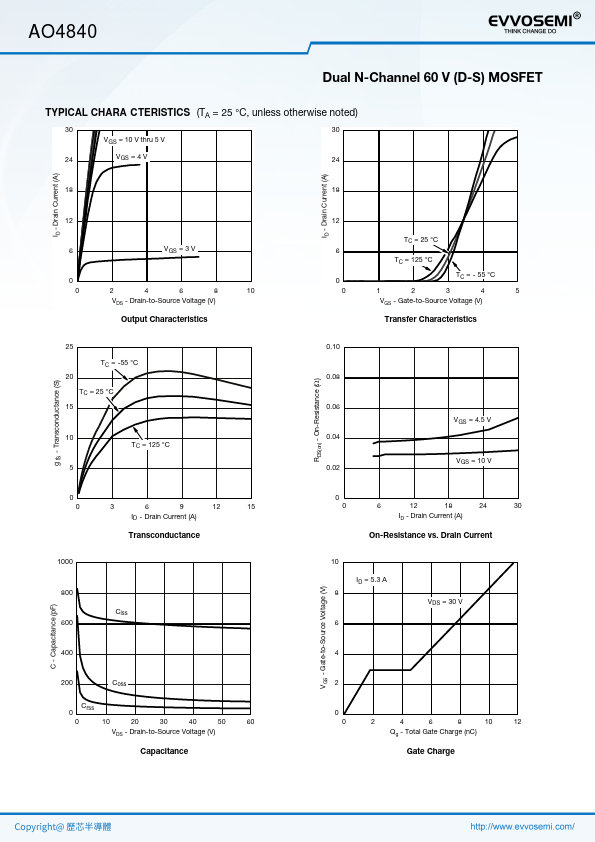

AO4840 Features • TrenchFET® power MOSFET • 100 % R g and UIS tested Product Summary VDS ID (at VGS=10V) RDS(ON) (at VGS=10V) RDS(ON) (at VGS=4.5V) 60V 7A < 19mΩ < 23mΩ Dual N-Channel 60 V (D-S) MOSFET D1 D2 G1 G2 S1 S2 N-Channel MOSFET N-Channel MOSFET Top View S2 1 G2 2 S1 3 G1 4 8 D2 7 D2 6 D1 5 D1 ABSOLUTE MAXIMUM RATINGS (TC = 25 °C, unless otherwise noted) PARAMETER SYMBOL Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Continuous Source Current (Diode Conduction) a Pulsed Drain Current b Single Pulse Avalanche Current Single Pulse Avalanche Energy Maximum Power Dissipation b Operating Junction and Storage Temperature Range TC = 25 °C TC = 125 °C L = 0.1 mH TC = 25 °C TC = 125 °C VDS VGS ID IS IDM IAS EAS PD TJ, Tstg LIMIT 60 ± 20 7 4 3.
