AO4807 - Dual P-Channel MOSFET

General Description

The AO4807 uses advanced trench technology to provide excellent RDS(ON), and ultra-low low gate charge.

This device is suitable for use as a load switch or in PWM applications.

Key Features

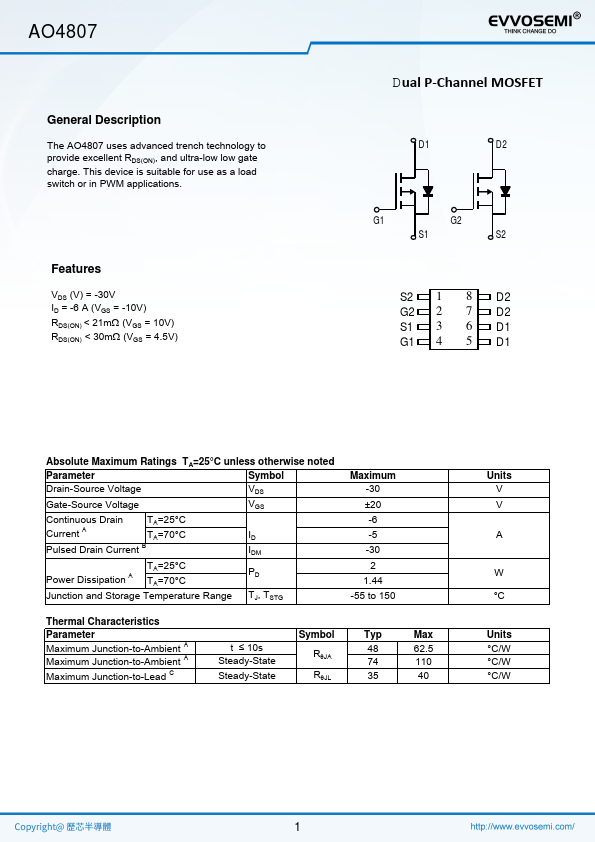

  • VDS (V) = -30V ID = -6 A (VGS = -10V) RDS(ON) < 21mΩ (VGS = 10V) RDS(ON) < 30mΩ (VGS = 4.5V) Dual P-Channel MOSFET D1 D2 G1 G2 S1 S2 S2 1 8 D2 G2 2 7 D2 S1 3 6 D1 G1 4 5 D1 Absolute Maximum Ratings TA=25°C unless otherwise noted Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS Continuous Drain TA=25°C Current A TA=70°C ID Pulsed Drain Current B IDM TA=25°C Power Dissipation A TA=70°C PD Junction and Storage Temperature Range TJ, TSTG Maximum -30 ±20 -6 -.

📥 Download Datasheet

Datasheet Details

Part number AO4807
Manufacturer EVVOSEMI
File Size 698.04 KB
Description Dual P-Channel MOSFET
Datasheet download datasheet AO4807 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AO4807 -30V P-ChanneI MOSFET UMW
AO4807 Dual P-Channel MOSFET Kexin
AO4807 30V Dual P-Channel MOSFET Alpha & Omega Semiconductors
AO4800 30V Dual N-Channel MOSFET Alpha & Omega Semiconductors
AO4800 Dual N-Channel 30V MOSFET VBsemi

Other Datasheets by EVVOSEMI

Part Number Description
AO4828 Dual N-Channel MOSFET
AO4832 30V Dual N-Channel MOSFET
AO4840 60V Dual N-Channel MOSFET
AO4884 Dual N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

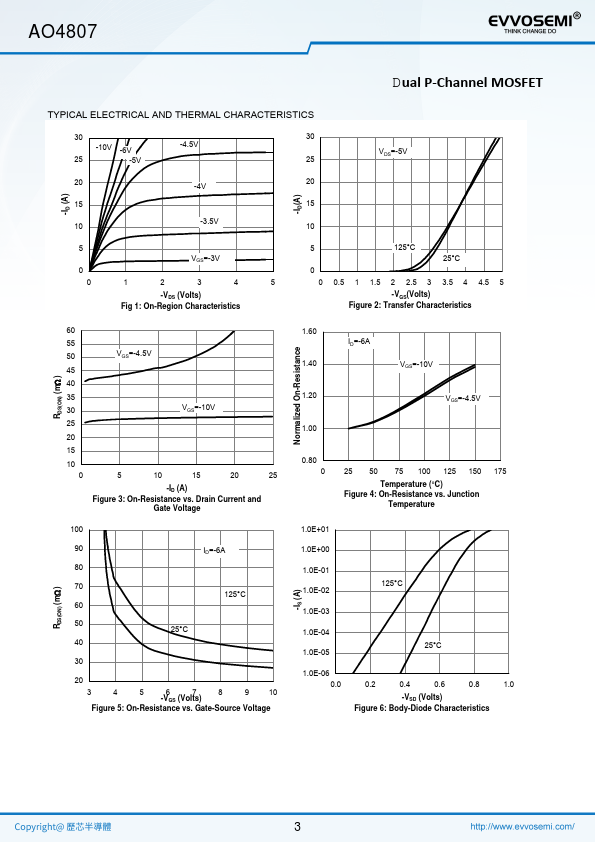

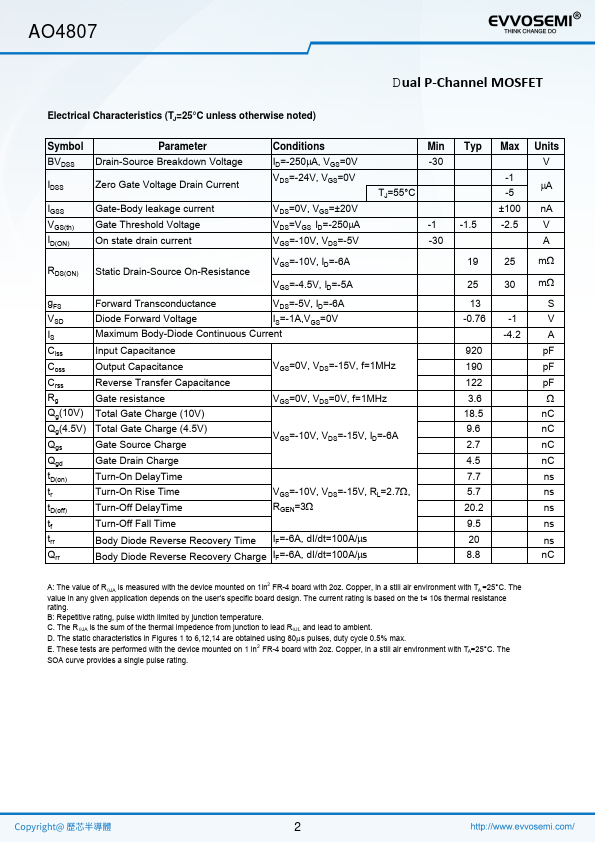

AO4807 General Description The AO4807 uses advanced trench technology to provide excellent RDS(ON), and ultra-low low gate charge. This device is suitable for use as a load switch or in PWM applications. Features VDS (V) = -30V ID = -6 A (VGS = -10V) RDS(ON) < 21mΩ (VGS = 10V) RDS(ON) < 30mΩ (VGS = 4.5V) Dual P-Channel MOSFET D1 D2 G1 G2 S1 S2 S2 1 8 D2 G2 2 7 D2 S1 3 6 D1 G1 4 5 D1 Absolute Maximum Ratings TA=25°C unless otherwise noted Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS Continuous Drain TA=25°C Current A TA=70°C ID Pulsed Drain Current B IDM TA=25°C Power Dissipation A TA=70°C PD Junction and Storage Temperature Range TJ, TSTG Maximum -30 ±20 -6 -5 -30 2 1.
