CA-IS3062 - CAN Transceiver

Product Overview

Chipanalog

📥 Download Datasheet

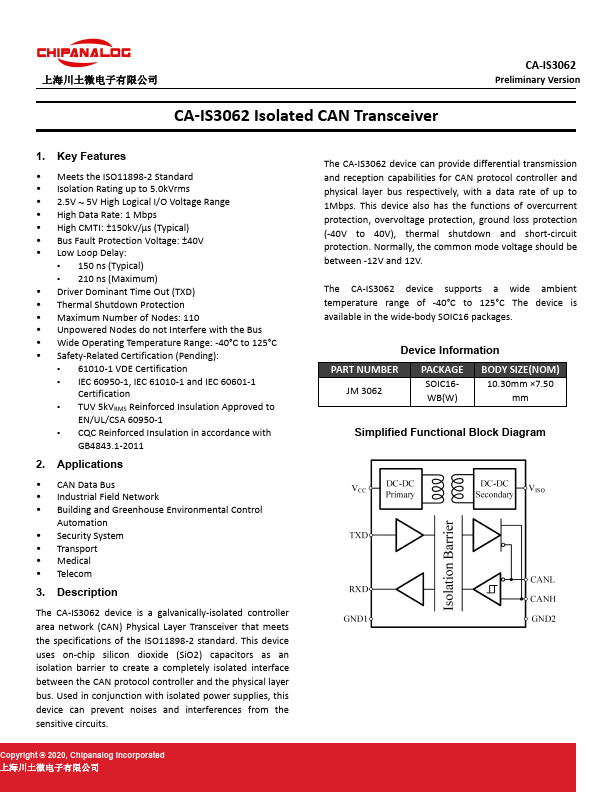

CA-IS3062 CAN Transceiver by Chipanalog - Datasheet Preview — Datasheet preview – CA-IS3062

Datasheet Details

Part number	CA-IS3062
Manufacturer	Chipanalog
File Size	1.65 MB
Description	CAN Transceiver
Datasheet	CA-IS3062 Datasheet

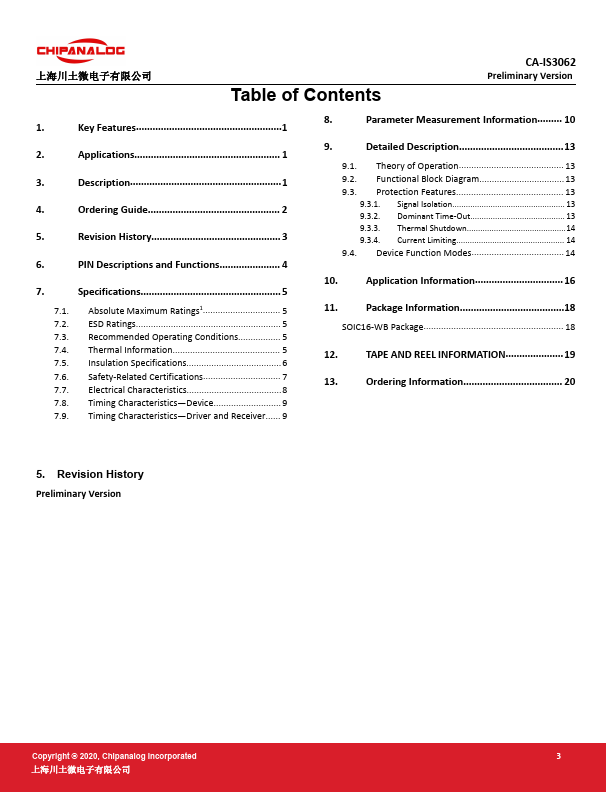

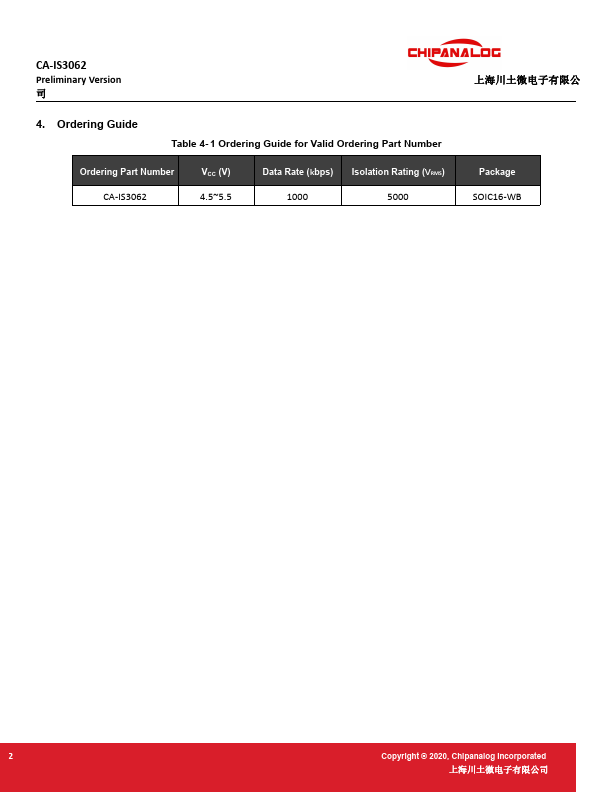

Additional preview pages of the CA-IS3062 datasheet.

Product details

Description

The CA-IS3062 device is a galvanically-isolated controller area network (CAN) Physical Layer Transceiver that meets the specifications of the ISO11898-2 standard.

Features

Meets the ISO11898-2 Standard.
Isolation Rating up to 5.0kVrms.
2.5V ~ 5V High Logical I/O Voltage Range.
High Data Rate: 1 Mbps.
High CMTI: ±150kV/µs (Typical).
Bus Fault Protection Voltage: ±40V.
Low Loop Delay:.
150 ns (Typical).
210 ns (Maximum).
Driver Dominant Time Out (TXD).
Thermal Shutdown Protection.
Maximum Number of Nodes: 110.
Unpowered Nodes do not Interfere with the Bus.
