PE8688W - N-Channel Enhancement Mode Power MOSFET

Description

The PE8688W uses advanced trench technology to provide excellent RDS(ON) and low gate charge.

It can be used in a wide variety of applications.

Features

  • VDS =60V, ID =90A RDS(ON) < 9.5mΩ @ VGS=10V.
  • High Power and current handing capability.
  • Lead free product is acquired PE8688W.

📥 Download Datasheet

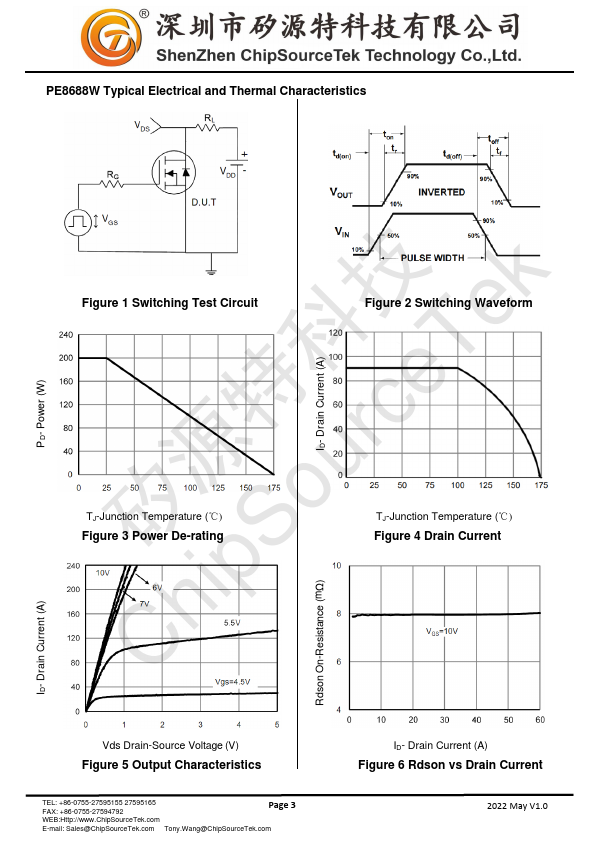

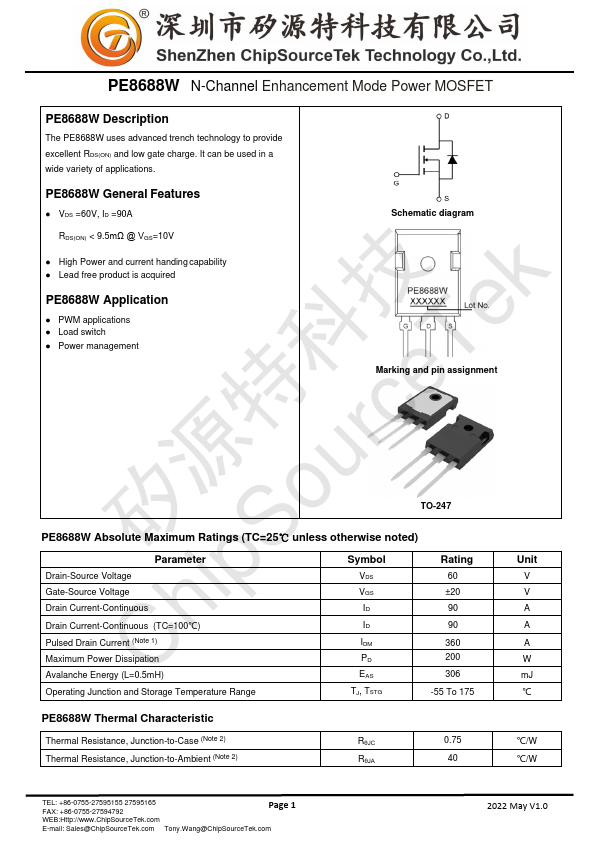

Datasheet preview – PE8688W

Datasheet Details

Part number PE8688W
Manufacturer ChipSourceTek
File Size 1.82 MB
Description N-Channel Enhancement Mode Power MOSFET
Datasheet download datasheet PE8688W Datasheet

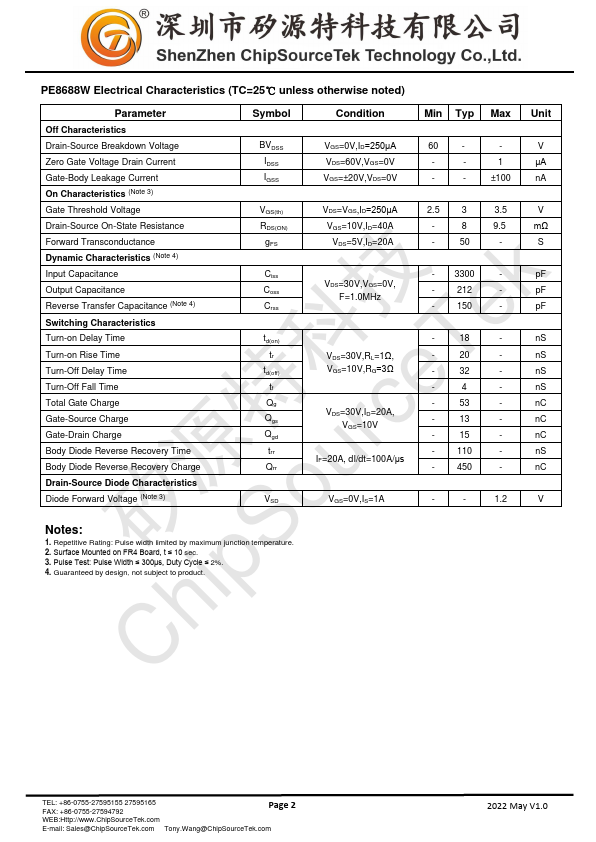

Additional preview pages of the PE8688W datasheet.
