PCM1755 - 24-Bit Audio DIGITAL-TO-ANALOG CONVERTER

This page provides the datasheet information for the PCM1755, a member of the PCM1753 24-Bit Audio DIGITAL-TO-ANALOG CONVERTER family.

Description

The PCM1753/54/55 is a CMOS, monolithic, integrated circuit, which includes stereo digital-to-analog converters and support circuitry in a small 16-lead SSOP package.

Features

  • D 24-Bit Resolution D Analog Performance (VCC = 5 V):.
  • Dynamic Range: 106 dB.
  • SNR: 106 dB, Typical.
  • THD+N: 0.002%, Typical.
  • Full-Scale Output: 4 V p-p, Typical D 4×/8× Oversampling Digital Filter:.
  • Stop-Band Attenuation:.
  • 50 dB.
  • Pass-Band Ripple: ±0.04 dB D Sampling Frequency: 5 kHz to 200 kHz D System Clock: 128 fS, 192 fS, 256 fS, 384 fS, 512 fS, 768 fS, 1152 fS With Auto Detect D Software Control (PCM1753, PCM1755):.
  • Accep.

📥 Download Datasheet

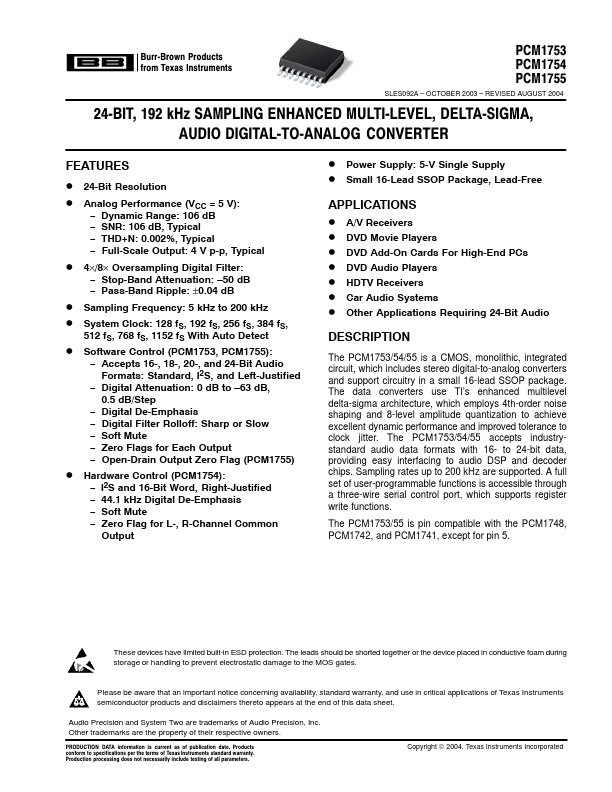

Datasheet preview – PCM1755

📁 Similar Datasheet

  • PCM1755 - Digital-to-Analog Converter (Texas Instruments)
  • PCM1753 - Digital-to-Analog Converter (Texas Instruments)
  • PCM1753-Q1 - Audio Digital-to-Analog Converter (Texas Instruments)
  • PCM1754 - Digital-to-Analog Converter (Texas Instruments)
  • PCM1754-Q1 - Audio Digital-to-Analog Converter (Texas Instruments)
  • PCM1701 - 18-Bit Serial Input D/A Converter (ETC)
  • PCM1742 - Audio Digital-to-Analog Converter (Texas Instruments)
  • PCM1748 - Audio Digital-to-Analog Converter (Texas Instruments)
  • PCM1789 - Audio Digital-to-Analog Converter (Texas Instruments)
  • PCM1789-Q1 - Audio Digital-to-Analog Converter (Texas Instruments)
Other Datasheets by Burr-Brown
  • PCM1750P - Dual CMOS 18-Bit Monolithic Audio ANALOG-TO-DIGITAL CONVERTER
  • PCM1750U - Dual CMOS 18-Bit Monolithic Audio ANALOG-TO-DIGITAL CONVERTER
  • PCM1753 - 24-Bit Audio DIGITAL-TO-ANALOG CONVERTER
  • PCM1754 - 24-Bit Audio DIGITAL-TO-ANALOG CONVERTER
  • PCM1700P - dual 18-bit digital-to-analog converter
  • PCM1700U - dual 18-bit digital-to-analog converter
  • PCM1702P - 20-Bit DIGITAL-TO-ANALOG CONVERTER
  • PCM1702U - 20-Bit DIGITAL-TO-ANALOG CONVERTER

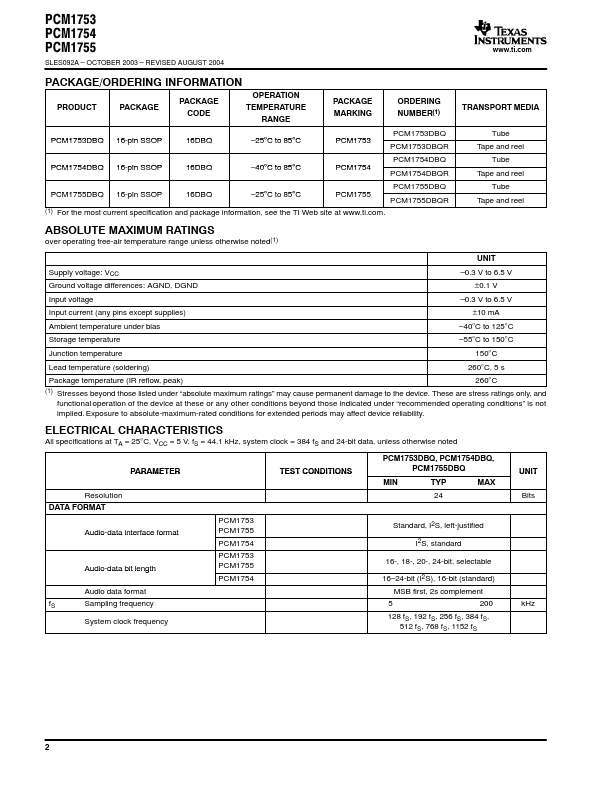

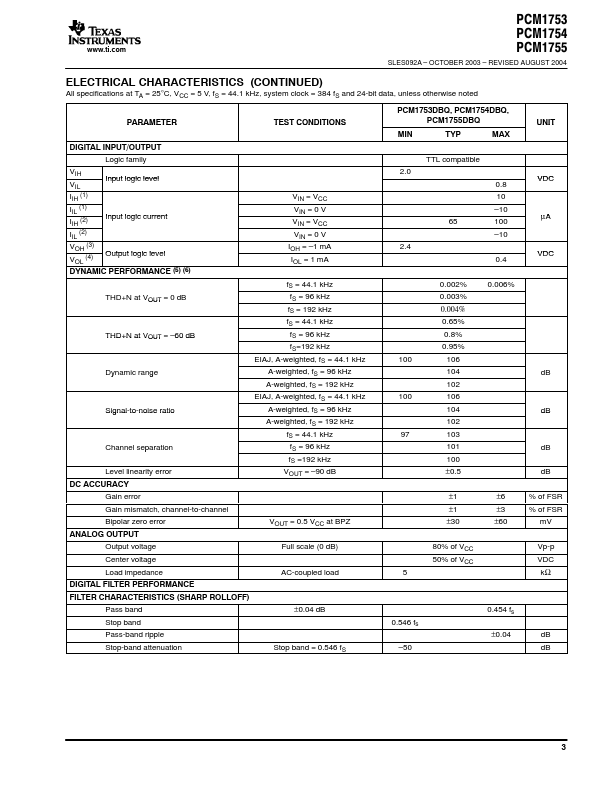

Full PDF Text Transcription

Click to expand full text
Burr-Brown Products from Texas Instruments PCM1753 PCM1754 PCM1755 SLES092A – OCTOBER 2003 – REVISED AUGUST 2004 24-BIT, 192 kHz SAMPLING ENHANCED MULTI-LEVEL, DELTA-SIGMA, AUDIO DIGITAL-TO-ANALOG CONVERTER FEATURES D 24-Bit Resolution D Analog Performance (VCC = 5 V): − Dynamic Range: 106 dB − SNR: 106 dB, Typical − THD+N: 0.002%, Typical − Full-Scale Output: 4 V p-p, Typical D 4×/8× Oversampling Digital Filter: − Stop-Band Attenuation: –50 dB − Pass-Band Ripple: ±0.04 dB D Sampling Frequency: 5 kHz to 200 kHz D System Clock: 128 fS, 192 fS, 256 fS, 384 fS, 512 fS, 768 fS, 1152 fS With Auto Detect D Software Control (PCM1753, PCM1755): − Accepts 16-, 18-, 20-, and 24-Bit Audio Formats: Standard, I2S, and Left-Justified − Digital Attenuation: 0 dB to –63 dB, 0.
