PCM1750U - Dual CMOS 18-Bit Monolithic Audio ANALOG-TO-DIGITAL CONVERTER

This page provides the datasheet information for the PCM1750U, a member of the PCM1750P Dual CMOS 18-Bit Monolithic Audio ANALOG-TO-DIGITAL CONVERTER family.

Description

The PCM1750 is a low cost, dual 18-bit CMOS analog-to-digital converter optimized for dynamic signal applications.

Features

  • q DUAL 18-BIT LOW-POWER CMOS AUDIO A/D.

📥 Download Datasheet

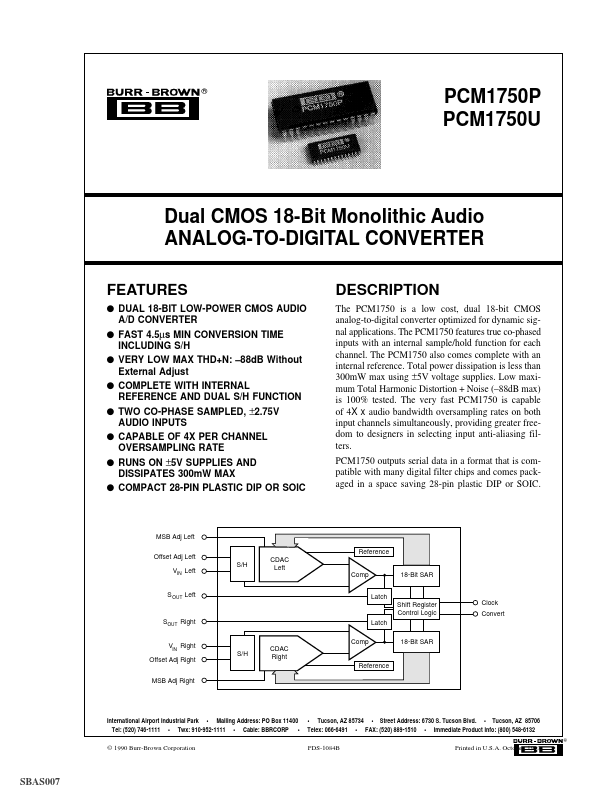

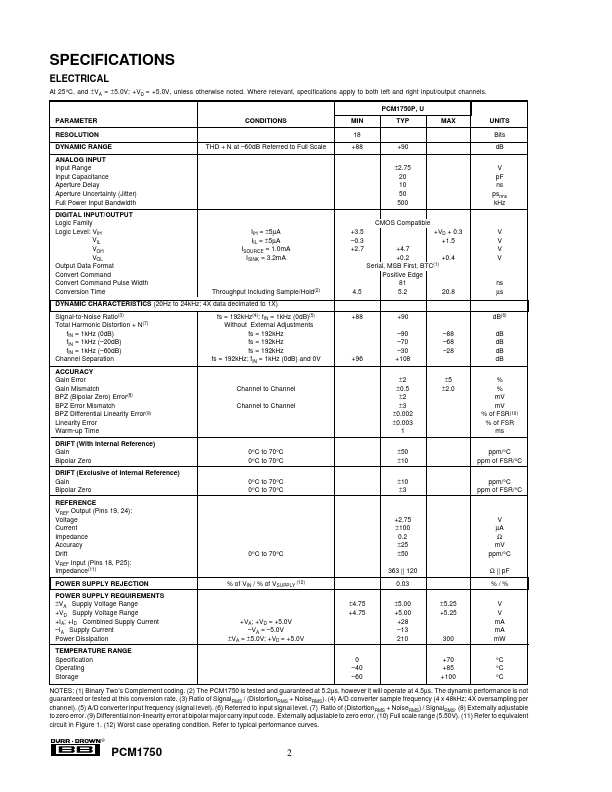

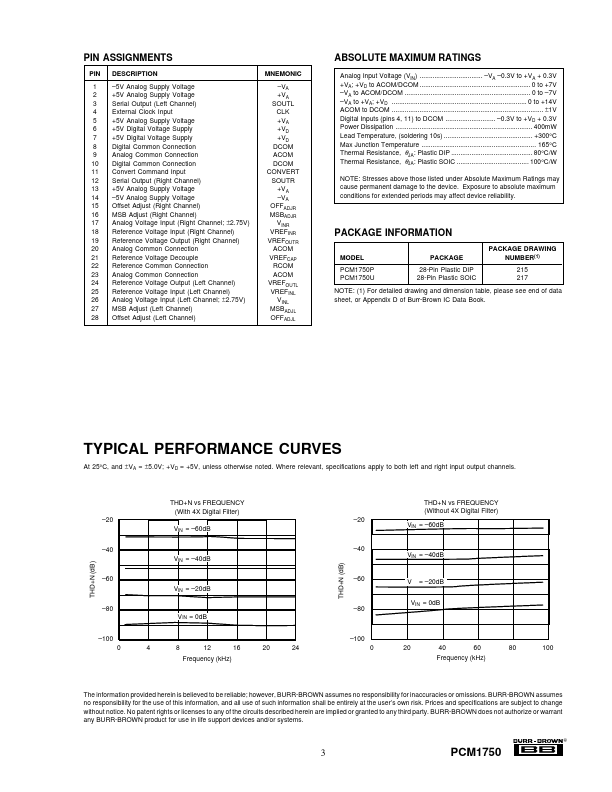

Datasheet preview – PCM1750U

📁 Similar Datasheet

  • PCM1753 - Digital-to-Analog Converter (Texas Instruments)
  • PCM1753-Q1 - Audio Digital-to-Analog Converter (Texas Instruments)
  • PCM1754 - Digital-to-Analog Converter (Texas Instruments)
  • PCM1754-Q1 - Audio Digital-to-Analog Converter (Texas Instruments)
  • PCM1755 - Digital-to-Analog Converter (Texas Instruments)
  • PCM1701 - 18-Bit Serial Input D/A Converter (ETC)
  • PCM1742 - Audio Digital-to-Analog Converter (Texas Instruments)
  • PCM1748 - Audio Digital-to-Analog Converter (Texas Instruments)
  • PCM1789 - Audio Digital-to-Analog Converter (Texas Instruments)
  • PCM1789-Q1 - Audio Digital-to-Analog Converter (Texas Instruments)
Other Datasheets by Burr-Brown
  • PCM1750P - Dual CMOS 18-Bit Monolithic Audio ANALOG-TO-DIGITAL CONVERTER
  • PCM1753 - 24-Bit Audio DIGITAL-TO-ANALOG CONVERTER
  • PCM1754 - 24-Bit Audio DIGITAL-TO-ANALOG CONVERTER
  • PCM1755 - 24-Bit Audio DIGITAL-TO-ANALOG CONVERTER
  • PCM1700P - dual 18-bit digital-to-analog converter
  • PCM1700U - dual 18-bit digital-to-analog converter
  • PCM1702P - 20-Bit DIGITAL-TO-ANALOG CONVERTER
  • PCM1702U - 20-Bit DIGITAL-TO-ANALOG CONVERTER

Full PDF Text Transcription

Click to expand full text
® PCM1750P PCM1750U SBAS007 Dual CMOS 18-Bit Monolithic Audio ANALOG-TO-DIGITAL CONVERTER FEATURES q DUAL 18-BIT LOW-POWER CMOS AUDIO A/D CONVERTER q FAST 4.5µs MIN CONVERSION TIME INCLUDING S/H q VERY LOW MAX THD+N: –88dB Without External Adjust q COMPLETE WITH INTERNAL REFERENCE AND DUAL S/H FUNCTION q TWO CO-PHASE SAMPLED, ±2.75V AUDIO INPUTS q CAPABLE OF 4X PER CHANNEL OVERSAMPLING RATE q RUNS ON ±5V SUPPLIES AND DISSIPATES 300mW MAX q COMPACT 28-PIN PLASTIC DIP OR SOIC DESCRIPTION The PCM1750 is a low cost, dual 18-bit CMOS analog-to-digital converter optimized for dynamic signal applications. The PCM1750 features true co-phased inputs with an internal sample/hold function for each channel. The PCM1750 also comes complete with an internal reference.
