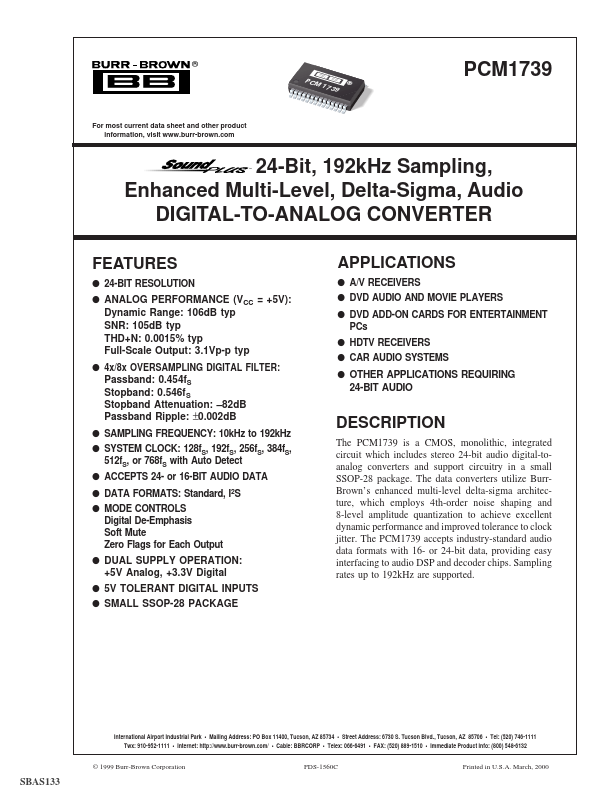

49% FPO PCM1739
PCM1739
For most current data sheet and other product information, visit www.burr-brown.com
TM 24-Bit, 192kHz Sampling, Enhanced Multi-Level, Delta-Sigma, Audio
DIGITAL-TO-ANALOG CONVERTER
FEATURES
q 24-BIT RESOLUTION
q ANALOG PERFORMANCE (VCC = +5V): Dynamic Range: 106dB typ SNR: 105dB typ THD+N: 0.0015% typ Full-Scale Output: 3.1Vp-p typ
q 4x/8x OVERSAMPLING DIGITAL FILTER: Passband: 0.454fS Stopband: 0.546fS Stopband Attenuation: –82dB Passband Ripple: ±0.002dB
q SAMPLING FREQUENCY: 10kHz to 192kHz
q SYSTEM CLOCK: 128fS, 192fS, 256fS, 384fS, 512fS, or 768fS with Auto Detect
q ACCEPTS 24- or 16-BIT AUDIO DATA
q DATA FORMATS: Standard, I2S
q MODE CONTROLS Digital De-Emphasis Soft Mute Zero Flags for Each Output
q DUAL SUPPLY OPERATION: +5V Analog, +3.
