PCM1737
PCM1737
For most current data sheet and other product information, visit www.burr-brown.com

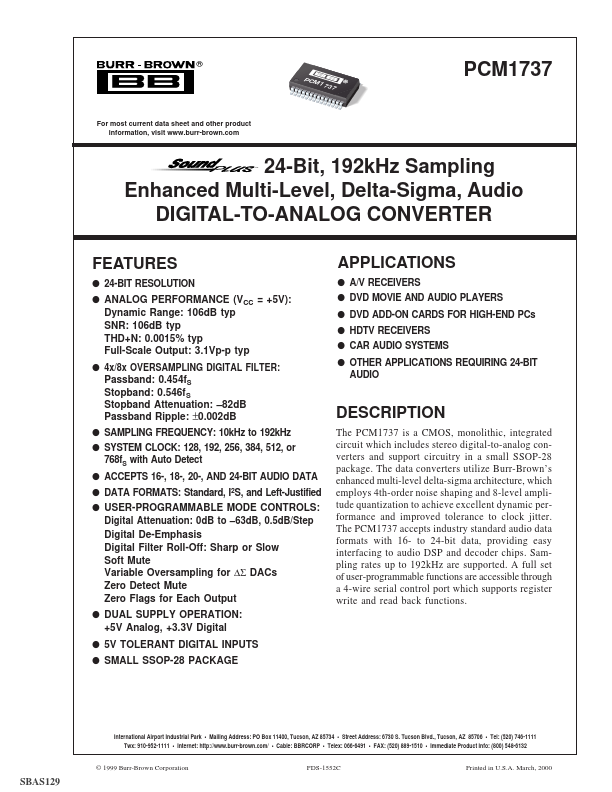

TM 24-Bit, 192kHz Sampling Enhanced Multi-Level, Delta-Sigma, Audio
DIGITAL-TO-ANALOG CONVERTER
FEATURES
q 24-BIT RESOLUTION
q ANALOG PERFORMANCE (VCC = +5V): Dynamic Range: 106dB typ SNR: 106dB typ THD+N: 0.0015% typ Full-Scale Output: 3.1Vp-p typ
q 4x/8x OVERSAMPLING DIGITAL FILTER: Passband: 0.454fS Stopband: 0.546fS Stopband Attenuation: –82dB Passband Ripple: ±0.002dB
q SAMPLING FREQUENCY: 10kHz to 192kHz
q SYSTEM CLOCK: 128, 192, 256, 384, 512, or 768fS with Auto Detect
q ACCEPTS 16-, 18-, 20-, AND 24-BIT AUDIO DATA
q DATA FORMATS: Standard, I2S, and Left-Justified
q USER-PROGRAMMABLE MODE CONTROLS: Digital Attenuation: 0dB to –63dB, 0.
