DF1700 - Dual-Channel 8x Oversampling DIGITAL FILTER

Description

The DF1700 is a high performance, 8x oversampling CMOS digital filter.

This filter accepts 16-bit input data and is user-selectable for 16-, 18-, or 20-bit output data.

The 8x oversampling feature converts the input data frequency (fs) to an output data frequency of 8 x fs by digital interpolation.

Features

  • DUAL.

📥 Download Datasheet

Datasheet preview – DF1700

📁 Similar Datasheet

  • DF170S - DF SERIES 15 AMP THERMAL CUTOFFS (Thermtrol Corporation)
  • DF10 - Miniature Glass Passivated Single-Phase Bridge Rectifier (GOOD-ARK)
  • DF10 - 1.0A GLASS PASSIVATED SINGLE PHASE BRIDGE RECTIFIER (WON-TOP)
  • DF10 - Glass Passivated Bridge Rectifier (Eris)
  • DF10 - SINGLE-PHASE GLASS PASSIVATED SILICON BRIDGE RECTIFIER (SEMTECH)
  • DF10 - Silicon Bridge Rectifiers (TGS)
  • DF10 - SINGLE-PHASE BRIDGE RECTIFIER (MIC)
  • DF10 - SINGLE-PHASE GLASS PASSIVATED BRIDGE RECTIFIERS (PACELEADER)
  • DF10 - 1.0A BRIDGE RECTIFIER (Vishay)
  • DF10 - SINGLE-PHASE GLASS BRIDGE (CHENG-YI)
Other Datasheets by Burr-Brown
  • DF1704 - 24-Bit 8X Oversampling Digital Interpolation Filter
  • DF1760P - 20-Bit DIGITAL-TO-ANALOG CONVERTER
  • DF1760U - 20-Bit DIGITAL-TO-ANALOG CONVERTER

Full PDF Text Transcription

Click to expand full text

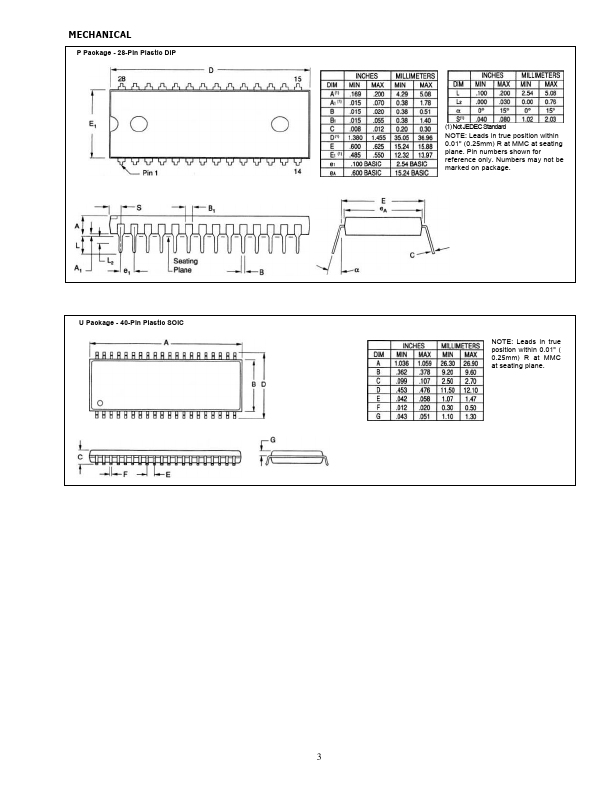

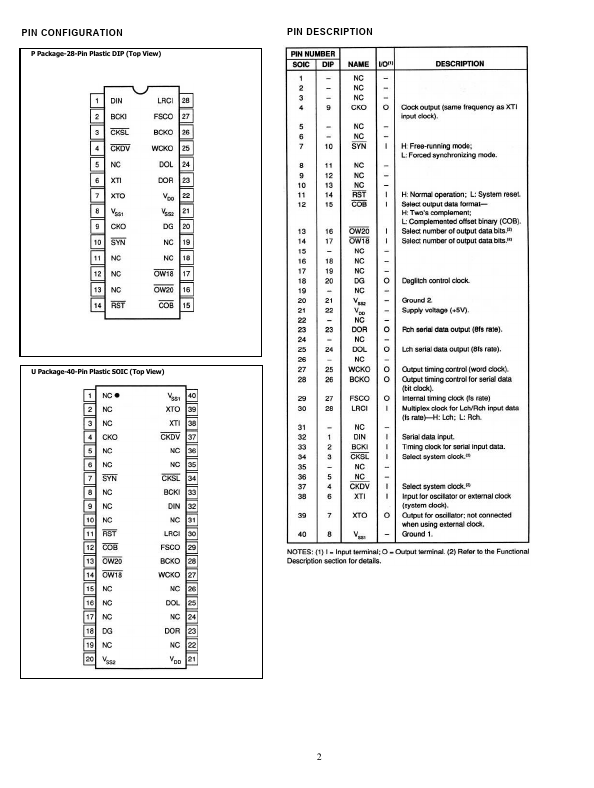

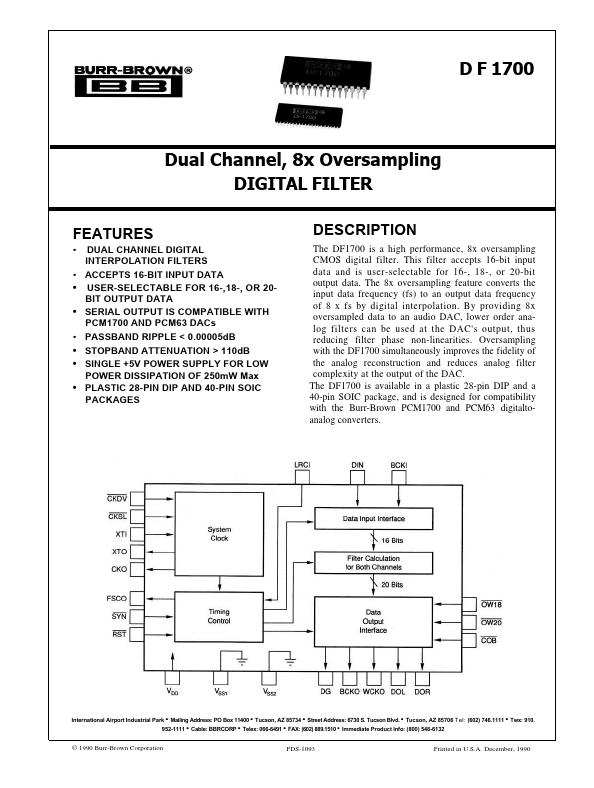

D F 1700 Dual Channel, 8x Oversampling DIGITAL FILTER FEATURES • DUAL CHANNEL DIGITAL INTERPOLATION FILTERS • ACCEPTS 16-BIT INPUT DATA • USER-SELECTABLE FOR 16-,18-, OR 20- BIT OUTPUT DATA • SERIAL OUTPUT IS COMPATIBLE WITH PCM1700 AND PCM63 DACs • PASSBAND RIPPLE < 0.00005dB • STOPBAND ATTENUATION > 110dB • SINGLE +5V POWER SUPPLY FOR LOW POWER DISSIPATION OF 250mW Max • PLASTIC 28-PIN DIP AND 40-PIN SOIC PACKAGES DESCRIPTION The DF1700 is a high performance, 8x oversampling CMOS digital filter. This filter accepts 16-bit input data and is user-selectable for 16-, 18-, or 20-bit output data. The 8x oversampling feature converts the input data frequency (fs) to an output data frequency of 8 x fs by digital interpolation.
