BCT4567 - Dual SIM Card Analog Switch

Product Overview

BROADCHIP

📥 Download Datasheet

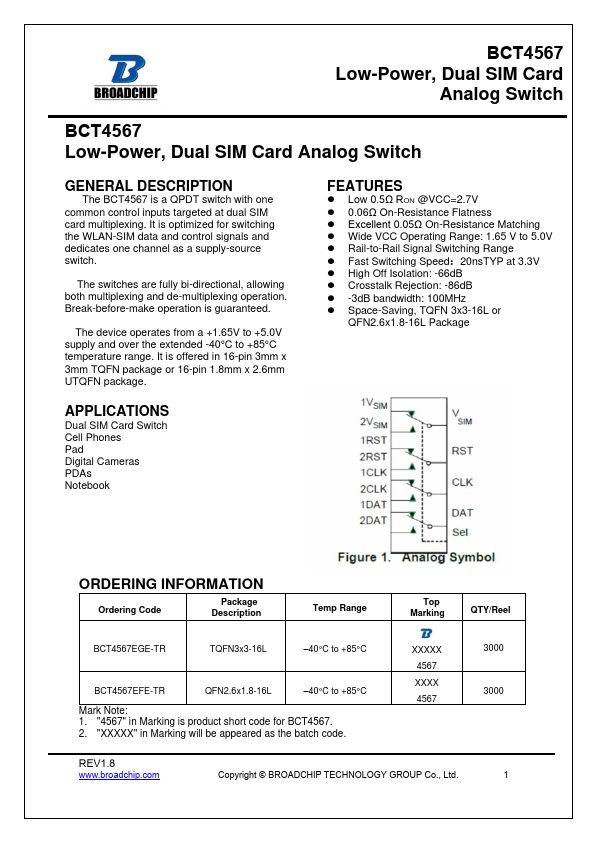

BCT4567 Dual SIM Card Analog Switch by BROADCHIP - Datasheet Preview — Datasheet preview – BCT4567

Datasheet Details

Part number	BCT4567
Manufacturer	BROADCHIP
File Size	637.24 KB
Description	Dual SIM Card Analog Switch
Datasheet	BCT4567 Datasheet

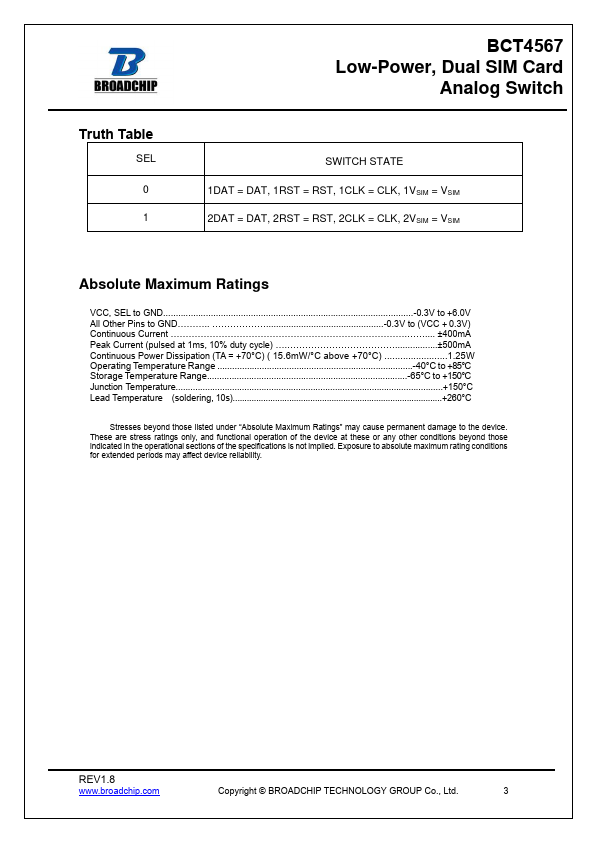

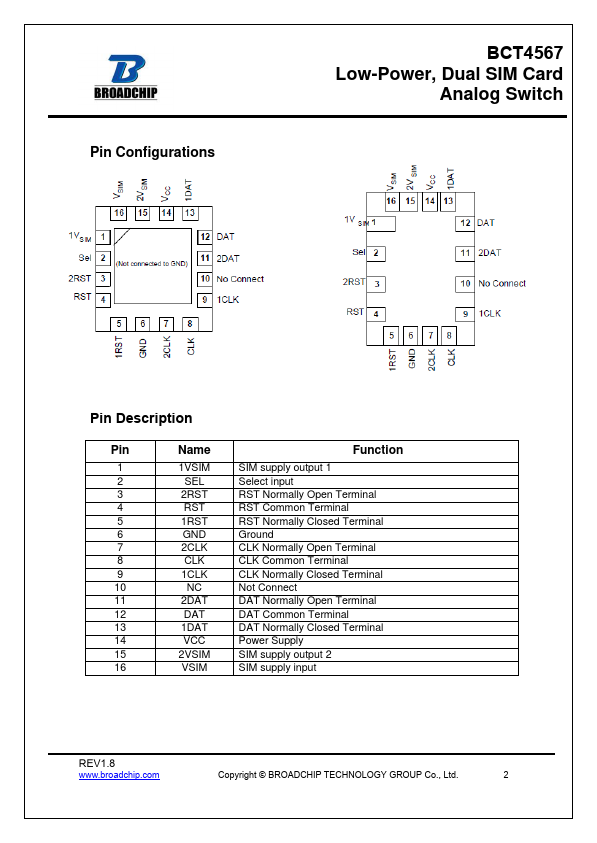

Additional preview pages of the BCT4567 datasheet.

Product details

Description

The BCT4567 is a QPDT switch with one common control inputs targeted at dual SIM card multiplexing.

Features

Low 0.5Ω RON @VCC=2.7V.
0.06Ω On-Resistance Flatness.
Excellent 0.05Ω On-Resistance Matching.
Wide VCC Operating Range: 1.65 V to 5.0V.
Rail-to-Rail Signal Switching Range.
Fast Switching Speed：20nsTYP at 3.3V.
High Off Isolation: -66dB.
Crosstalk Rejection: -86dB.
-3dB bandwidth: 100MHz.
Space-Saving, TQFN 3x3-16L or QFN2.6x1.8-16L Package.
