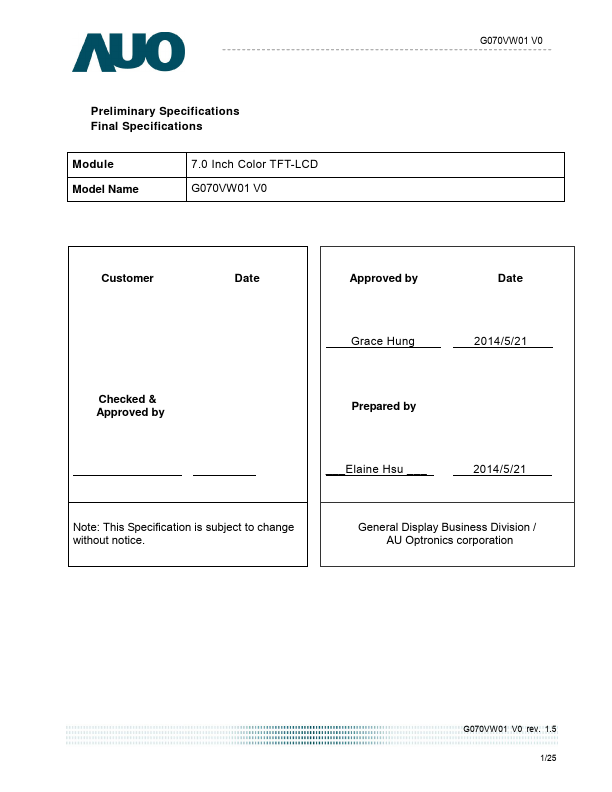

G070VW01-V0 Datasheet Text
½ Preliminary Specifications ¾ Final Specifications
Module Model Name
7.0 Inch Color TFT-LCD G070VW01 V0
G070VW01 V0
Customer
Date
Approved by
Date
Grace Hung
2014/5/21
Checked & Approved by
Prepared by
___Elaine Hsu ___
2014/5/21
Note: This Specification is subject to change without notice.
General Display Business Division / AU Optronics corporation
G070VW01 V0 rev. 1.5 1/25
G070VW01 V0

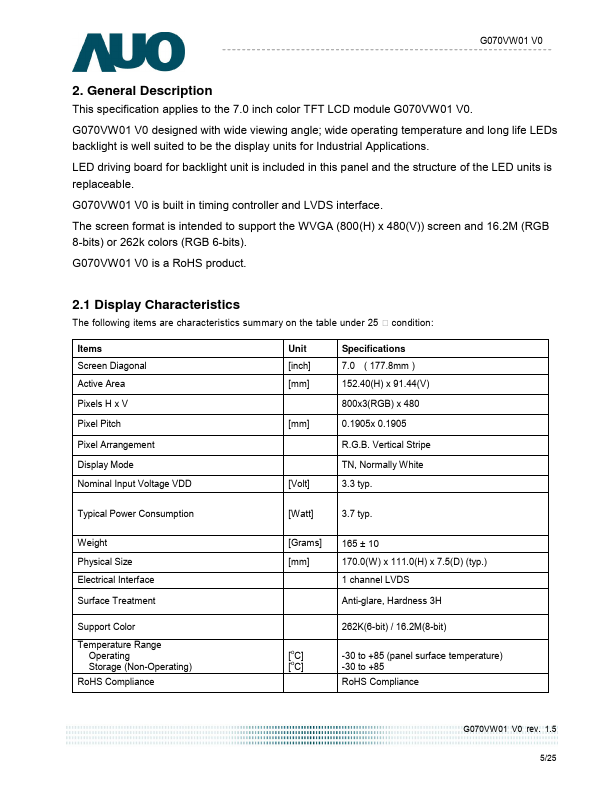

2. General Description
This specification applies to the 7.0 inch color TFT LCD module G070VW01 V0. G070VW01 V0 designed with wide viewing angle; wide operating temperature and long life LEDs backlight is well suited to be the display units for Industrial Applications. LED driving board for backlight unit is included in this panel and the structure of the LED units is replaceable. G070VW01 V0 is built in timing controller and LVDS interface. The screen format is intended to support the WVGA (800(H) x 480(V)) screen and 16.2M (RGB 8-bits) or 262k colors (RGB 6-bits). G070VW01 V0 is a RoHS product.
2.1 Display Characteristics
The following items are characteristics summary on the table under 25 condition:
Items Screen Diagonal Active Area Pixels H x V Pixel Pitch Pixel Arrangement Display Mode Nominal Input Voltage VDD
Unit [inch] [mm]
[mm]
[Volt]
Specifications 7.0 ( 177.8mm ) 152.40(H) x 91.44(V) 800x3(RGB) x 480 0.1905x 0.1905 R.G.B. Vertical Stripe TN, Normally White 3.3 typ.
Typical Power Consumption
[Watt]
3.7 typ....
