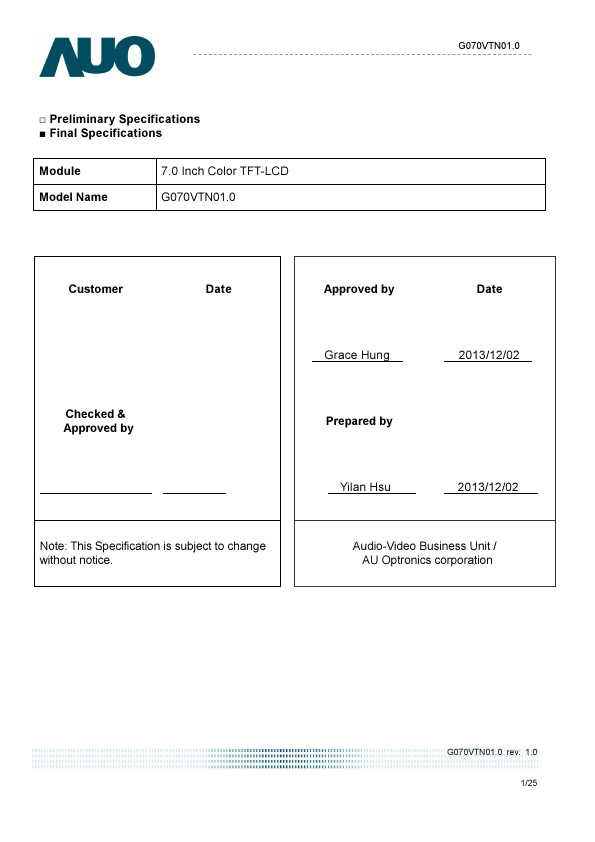

G070VTN01.0 Datasheet Text
- Preliminary Specifications
- Final Specifications
Module Model Name
7.0 Inch Color TFT-LCD G070VTN01.0
Customer
Date
Checked & Approved by
Note: This Specification is subject to change without notice.
Approved by
Date
Grace Hung
2013/12/02
Prepared by
Yilan Hsu
2013/12/02
Audio-Video Business Unit / AU Optronics corporation
G070VTN01.0 rev. 1.0 1/25

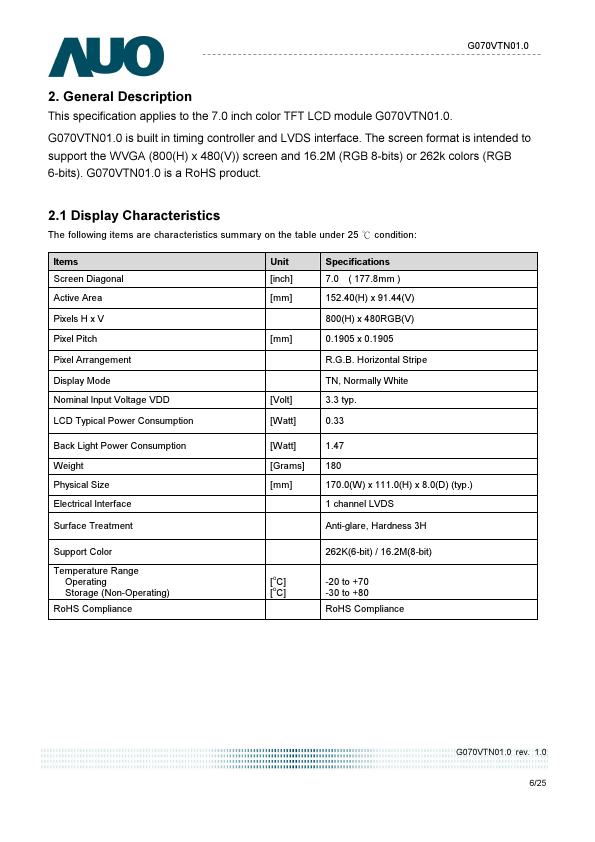

2. General Description
This specification applies to the 7.0 inch color TFT LCD module G070VTN01.0.
G070VTN01.0 is built in timing controller and LVDS interface. The screen format is intended to support the WVGA (800(H) x 480(V)) screen and 16.2M (RGB 8-bits) or 262k colors (RGB 6-bits). G070VTN01.0 is a RoHS product.
2.1 Display Characteristics
The following items are characteristics summary on the table under 25 ℃ condition:
Items Screen Diagonal Active Area Pixels H x V Pixel Pitch Pixel Arrangement Display Mode Nominal Input Voltage VDD LCD Typical Power Consumption
Unit [inch] [mm]
[mm]
[Volt] [Watt]
Specifications 7.0 ( 177.8mm ) 152.40(H) x 91.44(V) 800(H) x 480RGB(V) 0.1905 x 0.1905 R.G.B. Horizontal Stripe TN, Normally White 3.3 typ. 0.33
Back Light Power Consumption Weight Physical Size Electrical Interface Surface Treatment
[Watt] [Grams] [mm]
1.47 180 170.0(W) x 111.0(H) x 8.0(D) (typ.) 1 channel LVDS Anti-glare, Hardness 3H...
