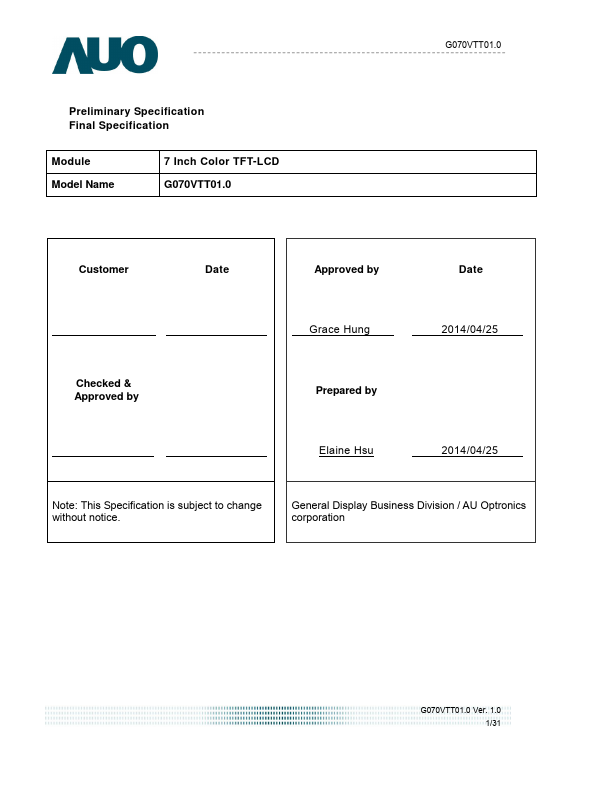

G070VTT01.0 Datasheet Text
½ Preliminary Specification ¾ Final Specification
Module Model Name
7 Inch Color TFT-LCD G070VTT01.0
Customer
Date
Approved by
Date
Grace Hung
2014/04/25
Checked & Approved by
Prepared by
Elaine Hsu
2014/04/25
Note: This Specification is subject to change without notice.
General Display Business Division / AU Optronics corporation
G070VTT01.0 Ver. 1.0 1/31

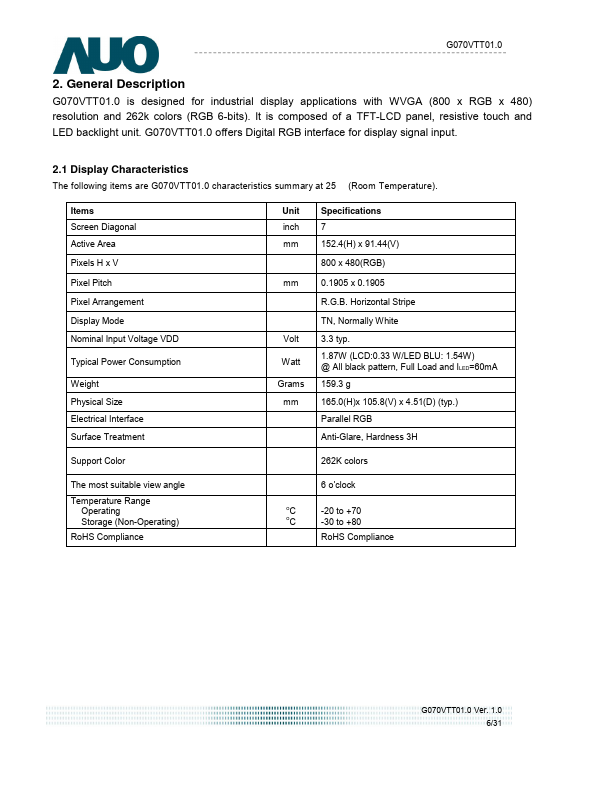

2. General Description
G070VTT01.0 is designed for industrial display applications with WVGA (800 x RGB x 480) resolution and 262k colors (RGB 6-bits). It is posed of a TFT-LCD panel, resistive touch and LED backlight unit. G070VTT01.0 offers Digital RGB interface for display signal input.
2.1 Display Characteristics
The following items are G070VTT01.0 characteristics summary at 25 Ċ(Room Temperature).
Items Screen Diagonal Active Area Pixels H x V Pixel Pitch Pixel Arrangement Display Mode Nominal Input Voltage VDD
Typical Power Consumption
Weight Physical Size Electrical Interface Surface Treatment
Unit inch mm mm
Volt Watt Grams mm
Specifications 7 152.4(H) x 91.44(V) 800 x 480(RGB) 0.1905 x 0.1905 R.G.B. Horizontal Stripe TN, Normally White 3.3 typ. 1.87W (LCD:0.33 W/LED BLU: 1.54W) @ All black pattern, Full Load and ILED=60mA 159.3 g 165.0(H)x 105.8(V) x 4.51(D) (typ.) Parallel RGB Anti-Glare, Hardness 3H
Support Color
262K colors
The most suitable view angle
Temperature Range Operating Storage (Non-Operating)...
